A curve has initial and final grades of +4% and -4% respectively, and is 240m long....

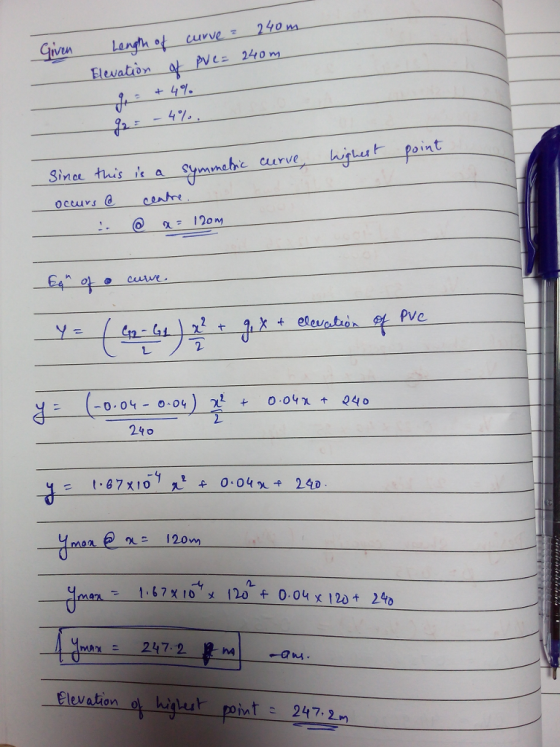

A curve has initial and final grades of +4% and -4% respectively, and is 240m long. The PVC is at an elevation of 240m. Given this information, answer the following questions (Please use “first principles” described in the lectures). What is the elevation of the high/low point? (Provide answer to 1 decimal place)
Homework Answers
Add Answer to:
A curve has initial and final grades of +4% and -4%
respectively, and is 240m long....
4. A vertical curve is designed for 55 mi/h and has an initial grade of 2.5%...
4. A vertical curve is designed for 55 mi/h and has an initial grade of 2.5% and a final grade of -1.0%. The PVT is at station 114 + 50. It is known that a point on the curve at station 112 + 35 is at elevation 245 ft. What is the stationing and elevation of PVC?
An equal tangent crest vertical curve is designed for 60 mph. The initial grade is +4.0%...
An equal tangent crest vertical curve is designed for 60 mph. The initial grade is +4.0% and the final grade is negative. What is the elevation difference between the PVC and high point of the curve?
A 500-ft-long equal-tangent crest vertical curve connects tangents that intersect at station 340 + 00 and...
A 500-ft-long equal-tangent crest vertical curve connects tangents that intersect at station 340 + 00 and elevation 1322 ft. The initial grade is +4.0% and the final grade is -2.5%. Determine the elevation and stationing of the high point, PVC, and PVT. Solve this problem using parabolic equation and offset method.
13. A 400-ft long equal tangent sag vertical curve has its PVC at station 100+00 and o b elevation 500 ft, the init...
13. A 400-ft long equal tangent sag vertical curve has its PVC at station 100+00 and o b elevation 500 ft, the initial grade g,--4% and the final grade g2 elevation of the lowest point of the curve. +2.5%. Determine the
Question 3 (10 marks) A 1,500ft long sag vertical curve (equal tangent) has a PC at...
Question 3 (10 marks) A 1,500ft long sag vertical curve (equal tangent) has a PC at stenine 1,500f. The initial grade is -3% and the fina on 3+70 and elevation I grade is +6%. Determine the elevation and station 3+70 and a PVC at stationing of the low point, PVI, and PVT
CE 123: HIGHWAY AND STREET DESIGN PROJECT: VERTICAL CRUVES A crest vertical curve is designed for...
CE 123: HIGHWAY AND STREET DESIGN PROJECT: VERTICAL CRUVES A crest vertical curve is designed for 60 MPH. The initial grade is +4% and the final grade is negative. What is the elevation difference between the PVC and the high point on the curve? x (high point) PVC
please show steps and do it clearly 2. A 500 foot vertical curve connects a -4%...
please show steps and do it clearly
2. A 500 foot vertical curve connects a -4% grade to a +2 percent grade with a PVI at station 35+60.55. The PVI has an elevation of 438.24 ft. a. Calculation the location and elevation of the PVC, the PVT, and the high point or low point on the curve. b. What should be the maximum posted speed limit on this curve?
A 500-feet vertical curve connects a -4% grade to a +2percent grade with a PVI at station 35 + 60.55. The PVI has an ele...
A 500-feet vertical curve connects a -4% grade to a +2percent grade with a PVI at station 35 + 60.55. The PVI has an elevation of 438.24ft. (a) Calculate the location and elevation of: the PVC, the PVI, and the high point or low point on the curve. (b) What should be the maximum posted speed limit on this curse?
A vertical curve has grades G1 = 2.8% (downgrade) and G2 = 2.2 (upgrade) Assume design...
A vertical curve has grades G1 = 2.8% (downgrade) and G2 = 2.2 (upgrade) Assume design speed = 70 KPH, S=SSD, S ≤ LC, longitudinal friction factor = 0.30, and hesitation time = 2.5 sec. Station PVI = (43+7) and elevation PVI = 53.65 m 1) Design the curve? 2) Calculate the rate of change of curvature? 3) Calculate the rate of change of grade? 4) Determine the station and elevation of PVC? 5) Determine the station and elevation of...
Please provide answer with full detailed working and any relevant diagrams. Thanks a lot Question 8...
Please provide answer with full detailed
working and any relevant diagrams. Thanks a lot
Question 8 (20 marks) A 400-m equal-tangent crest vertical curve has the PVC at station 2+500 and elevation at 300 m. The initial grade is 2% and the final grade is -1%. First plot the vertical road geometry (all parameters associated with the calculation of this question must be labelled), and then determine the stationing and elevation of the PVI, PVT, and the highest point on...
4. A vertical curve is designed for 55 mi/h and has an initial grade of 2.5% and a final grade of -1.0%. The PVT is at station 114 + 50. It is known that a point on the curve at station 112 + 35 is at elevation 245 ft. What is the stationing and elevation of PVC?
13. A 400-ft long equal tangent sag vertical curve has its PVC at station 100+00 and o b elevation 500 ft, the initial grade g,--4% and the final grade g2 elevation of the lowest point of the curve. +2.5%. Determine the
Question 3 (10 marks) A 1,500ft long sag vertical curve (equal tangent) has a PC at stenine 1,500f. The initial grade is -3% and the fina on 3+70 and elevation I grade is +6%. Determine the elevation and station 3+70 and a PVC at stationing of the low point, PVI, and PVT
CE 123: HIGHWAY AND STREET DESIGN PROJECT: VERTICAL CRUVES A crest vertical curve is designed for 60 MPH. The initial grade is +4% and the final grade is negative. What is the elevation difference between the PVC and the high point on the curve? x (high point) PVC
please show steps and do it clearly
2. A 500 foot vertical curve connects a -4% grade to a +2 percent grade with a PVI at station 35+60.55. The PVI has an elevation of 438.24 ft. a. Calculation the location and elevation of the PVC, the PVT, and the high point or low point on the curve. b. What should be the maximum posted speed limit on this curve?
Please provide answer with full detailed
working and any relevant diagrams. Thanks a lot
Question 8 (20 marks) A 400-m equal-tangent crest vertical curve has the PVC at station 2+500 and elevation at 300 m. The initial grade is 2% and the final grade is -1%. First plot the vertical road geometry (all parameters associated with the calculation of this question must be labelled), and then determine the stationing and elevation of the PVI, PVT, and the highest point on...
