A 500-ft-long equal-tangent crest vertical curve connects tangents that intersect at station 340 + 00 and...

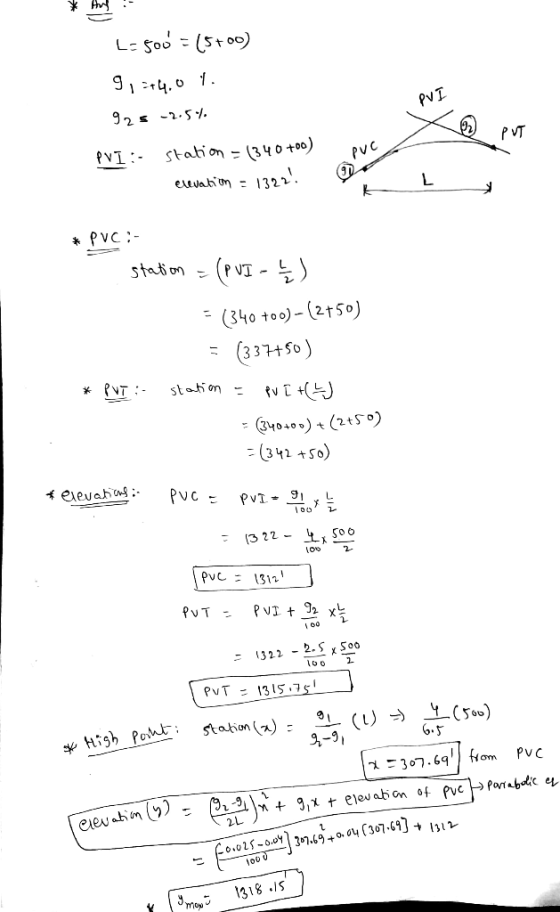

A 500-ft-long equal-tangent crest vertical curve connects tangents that intersect at station 340 + 00 and elevation 1322 ft. The initial grade is +4.0% and the final grade is -2.5%. Determine the elevation and stationing of the high point, PVC, and PVT.
Solve this problem using parabolic equation and offset method.
Homework Answers
Add Answer to:
A 500-ft-long
equal-tangent crest vertical curve connects tangents that intersect
at station 340 + 00 and...
A 1080 ft long tangent crest vertical curve connects tangents ( G1= 4% , G2 =...
A 1080 ft long tangent crest vertical curve connects tangents ( G1= 4% , G2 = -2.8%). The two stations intersect at ghost station 640+00 where elevation is 1325.000 ft. Determine the stationing and elevations of the following points. 1. PVC 2. PVT 3. High point 4. 640+20
A 5 degree curve (measured at the centerline of the inside lane) is being designed for...
A 5 degree curve (measured at the centerline of the inside lane) is being designed for a highway with a design speed of 60 mph. What is the closest any roadside object may be placed to the centerline of the inside lane of the roadway while maintaining adequate stopping sight distance? Assume lane widths are 12 feet. 3) A 520-ft long equal tangent crest vertical curve connects tangents that intersect at station 340+00 and elevation 1325 ft. The initial grade...
25. A spiral curve with a length of 50 feet connects a tangent to a curve...
25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...
Help please 2 (36 Pts) A 4250 ft equal tangent parabolic vertical curve has a back...
Help please
2 (36 Pts) A 4250 ft equal tangent parabolic vertical curve has a back tangent grade (gl) of + 3.6 % and a forward tangent grade (g2) of-1.8 %. If the elevation of the PVI is 4264.82 ft. at station 78+ 25.00; what is: (a) the elevation and stationing of the PVC and PVT; (b) the elevation of the curve at station 83 + 63.00; and (c) the elevation and stationing of the highest and lowest points on...
A 600 feet sag vertical curve (equal tangent) has a PVC at station 100+00 and elevation...
A 600 feet sag vertical curve (equal tangent) has a PVC at station 100+00 and elevation 300 feet. The initial grade is -3.5 % and the final grade is +5.5%. Determine the elevation and stationing of the lowest point, PVI, and PVT.
13. A 400-ft long equal tangent sag vertical curve has its PVC at station 100+00 and o b elevation 500 ft, the init...
13. A 400-ft long equal tangent sag vertical curve has its PVC at station 100+00 and o b elevation 500 ft, the initial grade g,--4% and the final grade g2 elevation of the lowest point of the curve. +2.5%. Determine the
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a...
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a -2% tangent. What should the design speed be to provide ample stopping sight distance? SSD t Pra) [10 marks) b) A 300 m sag parabolic vertical curve has a PVC at station 2+600.000 and elevation 320.000 m. the initial grade is -4.0% and the final grade is +1.0%. Determine the stationing and elevation of PVI, PVT and the lowest point on the curve. Also...
A 200m equal tangent sag vertical curve has the PVC at station 3 + 700.000 and...
A 200m equal tangent sag vertical curve has the PVC at station 3 + 700.000 and elevation 321m. The initial grade is -3.5% and the final grade is 0.5%. Determine the elevation and stationing of the PVI, PVT, and lowest point on the curve.
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is...
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is at 45+65 with elevation 369.22'. The curve is designed for 35 mi/hr speed limit. Calculate stations and elevations for PVC and PVT A 4% grade meets a failing grade of-25%. Station at P1 is at 60+00 and elevation is 95 feet. The length between PVC and PVT is 1400 feet. Find the elevation of the curve at station 58+00 4.
3. A...
12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back...
12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back tangent grade is gl = +4% and forward tangent grade g2--6%, and length L = 600 ft a. b. c. d. Calculate the elevation of PVC in feet. Calculate the elevation of PVT in ft Calculate the station of the high point. Calculate the elevation of high point in ft.
A 5 degree curve (measured at the centerline of the inside lane) is being designed for a highway with a design speed of 60 mph. What is the closest any roadside object may be placed to the centerline of the inside lane of the roadway while maintaining adequate stopping sight distance? Assume lane widths are 12 feet. 3) A 520-ft long equal tangent crest vertical curve connects tangents that intersect at station 340+00 and elevation 1325 ft. The initial grade...
25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...
Help please
2 (36 Pts) A 4250 ft equal tangent parabolic vertical curve has a back tangent grade (gl) of + 3.6 % and a forward tangent grade (g2) of-1.8 %. If the elevation of the PVI is 4264.82 ft. at station 78+ 25.00; what is: (a) the elevation and stationing of the PVC and PVT; (b) the elevation of the curve at station 83 + 63.00; and (c) the elevation and stationing of the highest and lowest points on...
13. A 400-ft long equal tangent sag vertical curve has its PVC at station 100+00 and o b elevation 500 ft, the initial grade g,--4% and the final grade g2 elevation of the lowest point of the curve. +2.5%. Determine the
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a -2% tangent. What should the design speed be to provide ample stopping sight distance? SSD t Pra) [10 marks) b) A 300 m sag parabolic vertical curve has a PVC at station 2+600.000 and elevation 320.000 m. the initial grade is -4.0% and the final grade is +1.0%. Determine the stationing and elevation of PVI, PVT and the lowest point on the curve. Also...
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is at 45+65 with elevation 369.22'. The curve is designed for 35 mi/hr speed limit. Calculate stations and elevations for PVC and PVT A 4% grade meets a failing grade of-25%. Station at P1 is at 60+00 and elevation is 95 feet. The length between PVC and PVT is 1400 feet. Find the elevation of the curve at station 58+00 4.
3. A...
12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back tangent grade is gl = +4% and forward tangent grade g2--6%, and length L = 600 ft a. b. c. d. Calculate the elevation of PVC in feet. Calculate the elevation of PVT in ft Calculate the station of the high point. Calculate the elevation of high point in ft.
