A 1080 ft long tangent crest vertical curve connects tangents ( G1= 4% , G2 =...
A 1080 ft long tangent crest vertical curve connects
tangents ( G1= 4% , G2 = -2.8%). The two stations intersect at

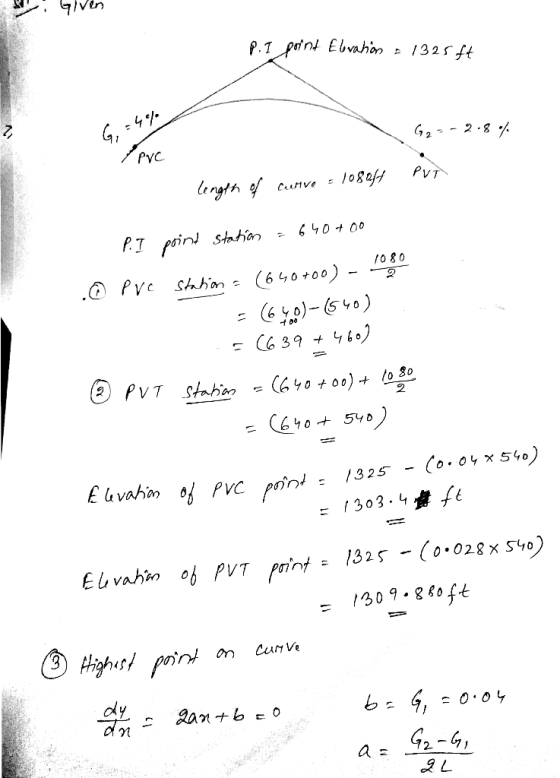

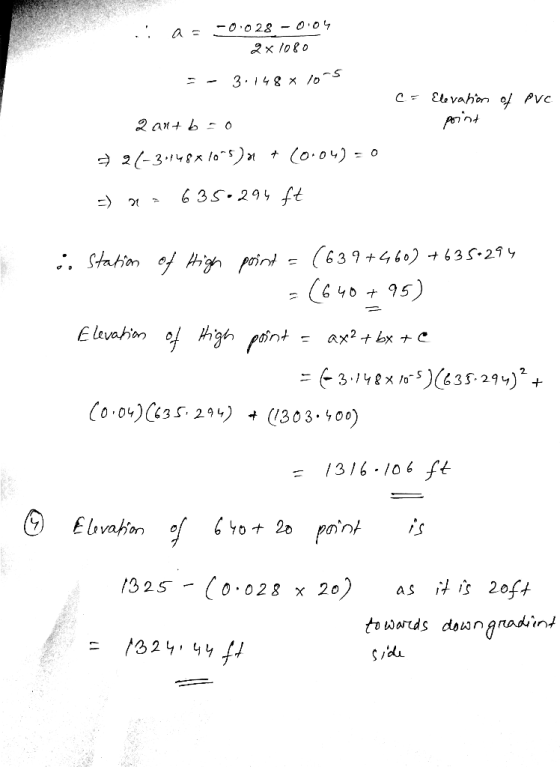

ghost station 640+00 where elevation is 1325.000 ft. Determine the
stationing and elevations of the following points.
1. PVC
2. PVT
3. High point
4. 640+20
Homework Answers
Add Answer to:
A 1080 ft long tangent crest vertical curve connects
tangents ( G1= 4% , G2 =...
A 500-ft-long equal-tangent crest vertical curve connects tangents that intersect at station 340 + 00 and...
A 500-ft-long equal-tangent crest vertical curve connects tangents that intersect at station 340 + 00 and elevation 1322 ft. The initial grade is +4.0% and the final grade is -2.5%. Determine the elevation and stationing of the high point, PVC, and PVT. Solve this problem using parabolic equation and offset method.
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is...
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is at 45+65 with elevation 369.22'. The curve is designed for 35 mi/hr speed limit. Calculate stations and elevations for PVC and PVT A 4% grade meets a failing grade of-25%. Station at P1 is at 60+00 and elevation is 95 feet. The length between PVC and PVT is 1400 feet. Find the elevation of the curve at station 58+00 4.
3. A...
A 5 degree curve (measured at the centerline of the inside lane) is being designed for...
A 5 degree curve (measured at the centerline of the inside lane) is being designed for a highway with a design speed of 60 mph. What is the closest any roadside object may be placed to the centerline of the inside lane of the roadway while maintaining adequate stopping sight distance? Assume lane widths are 12 feet. 3) A 520-ft long equal tangent crest vertical curve connects tangents that intersect at station 340+00 and elevation 1325 ft. The initial grade...
(A) For an equal tangent vertical curve g1 = -4%, g2 = +3%, L = 200.00...
(A) For an equal tangent vertical curve g1 = -4%, g2 = +3%, L = 200.00 ft, BVC Station = 10+00.00, BVC Elev = 5000.00 ft. EVC Station = ? (b) For an equal tangent vertical curve g1 = -4%, g2 = +3%, L = 200.00 ft, BVC Station = 10+00.00, BVC Elev = 5000.00 ft. EVC Elevation = ? (D) For an equal tangent vertical curve g1 = -4%, g2 = +3%, L = 200.00 ft, BVC Station =...
Problem #3 (20 Points) Vertical Curve Problem (Use both Tangents) See Attached Vertical Curve Drawing Station...
Problem #3 (20 Points) Vertical Curve Problem (Use both Tangents) See Attached Vertical Curve Drawing Station Tangent Elevation Tangent Offset В VC 45+00 45+50 46+00 PVI 678.14 46+18.47 46+50 47+00 47+50 EVC I. gl=+4.3%, g2 =-3.196, L = 300, 2. Calculate stations for BVC and EVC and insert into table 3. Calculate station for high/low point and insert into table (this will be located between stations already entered in table, and not yet highlighted). 4. Calculate ALL tangent elevations, tangent...
Help please 2 (36 Pts) A 4250 ft equal tangent parabolic vertical curve has a back...
Help please
2 (36 Pts) A 4250 ft equal tangent parabolic vertical curve has a back tangent grade (gl) of + 3.6 % and a forward tangent grade (g2) of-1.8 %. If the elevation of the PVI is 4264.82 ft. at station 78+ 25.00; what is: (a) the elevation and stationing of the PVC and PVT; (b) the elevation of the curve at station 83 + 63.00; and (c) the elevation and stationing of the highest and lowest points on...
25. A spiral curve with a length of 50 feet connects a tangent to a curve...
25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...
12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back...
12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back tangent grade is gl = +4% and forward tangent grade g2--6%, and length L = 600 ft a. b. c. d. Calculate the elevation of PVC in feet. Calculate the elevation of PVT in ft Calculate the station of the high point. Calculate the elevation of high point in ft.
1. A vertical crest curve with a length of 400’ is to connect grades of +1%...
1. A vertical crest curve with a length of 400’ is to connect grades of +1% and -1.75%. The PVI is located at station 35 and has an elevation of 549.20’. What are the elevations of the PVC, PVT and at all full stations on the curve?
EXIT 211 A A 2,125 ft equal tangent vertical curve joins a +2.2% grade to-3.6% grade. The PVI of the vertical curve is station 55+21 at elevation 150 ft. To meet MUTCD standards for advance guida...
EXIT 211 A A 2,125 ft equal tangent vertical curve joins a +2.2% grade to-3.6% grade. The PVI of the vertical curve is station 55+21 at elevation 150 ft. To meet MUTCD standards for advance guidance, an overhead sign structure must be placed at station 55+85. The bottom of the sign will be 18 ft above the roadway surface (more than the recommended 16.5 feet to accommodate larger trucks that use the roadway). WEST 56 Utopia Botlom of sign 18...
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is at 45+65 with elevation 369.22'. The curve is designed for 35 mi/hr speed limit. Calculate stations and elevations for PVC and PVT A 4% grade meets a failing grade of-25%. Station at P1 is at 60+00 and elevation is 95 feet. The length between PVC and PVT is 1400 feet. Find the elevation of the curve at station 58+00 4.
3. A...
A 5 degree curve (measured at the centerline of the inside lane) is being designed for a highway with a design speed of 60 mph. What is the closest any roadside object may be placed to the centerline of the inside lane of the roadway while maintaining adequate stopping sight distance? Assume lane widths are 12 feet. 3) A 520-ft long equal tangent crest vertical curve connects tangents that intersect at station 340+00 and elevation 1325 ft. The initial grade...
Problem #3 (20 Points) Vertical Curve Problem (Use both Tangents) See Attached Vertical Curve Drawing Station Tangent Elevation Tangent Offset В VC 45+00 45+50 46+00 PVI 678.14 46+18.47 46+50 47+00 47+50 EVC I. gl=+4.3%, g2 =-3.196, L = 300, 2. Calculate stations for BVC and EVC and insert into table 3. Calculate station for high/low point and insert into table (this will be located between stations already entered in table, and not yet highlighted). 4. Calculate ALL tangent elevations, tangent...
Help please
2 (36 Pts) A 4250 ft equal tangent parabolic vertical curve has a back tangent grade (gl) of + 3.6 % and a forward tangent grade (g2) of-1.8 %. If the elevation of the PVI is 4264.82 ft. at station 78+ 25.00; what is: (a) the elevation and stationing of the PVC and PVT; (b) the elevation of the curve at station 83 + 63.00; and (c) the elevation and stationing of the highest and lowest points on...
25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...
12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back tangent grade is gl = +4% and forward tangent grade g2--6%, and length L = 600 ft a. b. c. d. Calculate the elevation of PVC in feet. Calculate the elevation of PVT in ft Calculate the station of the high point. Calculate the elevation of high point in ft.
EXIT 211 A A 2,125 ft equal tangent vertical curve joins a +2.2% grade to-3.6% grade. The PVI of the vertical curve is station 55+21 at elevation 150 ft. To meet MUTCD standards for advance guidance, an overhead sign structure must be placed at station 55+85. The bottom of the sign will be 18 ft above the roadway surface (more than the recommended 16.5 feet to accommodate larger trucks that use the roadway). WEST 56 Utopia Botlom of sign 18...
