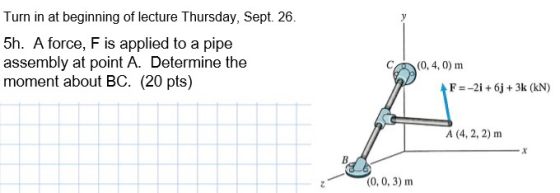

Turn in at beginning of lecture Thursday, Sept. 26. 5h. A force, F is applied to...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

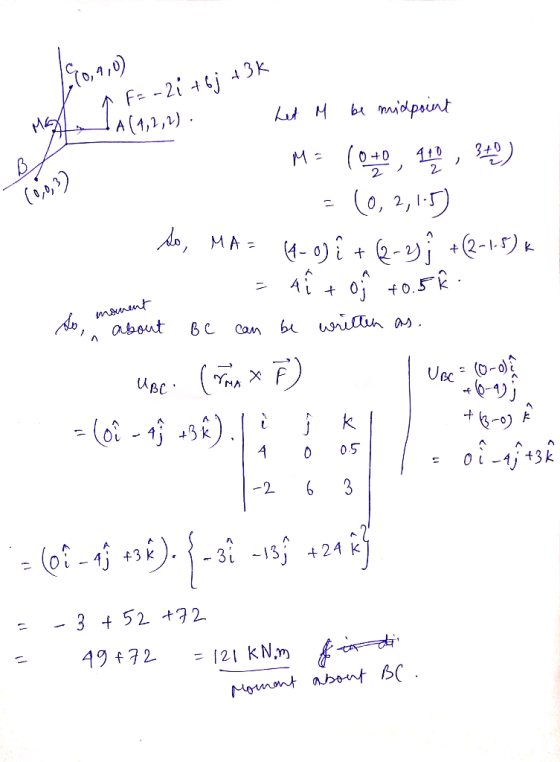

1 F= -21 +6; +3K Mol Let M be mio - M A (1,2,2). Let M be midpoint M: 1040, 440, 340) - (0,2,15) so, MA= (1-0) i +(2-2); +(2-

Answer 2

Similar Homework Help Questions

A force given by F rightarrow = (-2i + 6j + 3k)kN acts at a point...

A force given by F rightarrow = (-2i + 6j + 3k)kN acts at a point (4,2,2)m. What is the moment of this force about a line running from the points (0,0,3) m ti (0,4,0)m?
The 2.9-kN force F is applied at point A. (a) Compute the moment of F about...

The 2.9-kN force F is applied at point A. (a) Compute the moment of F about point O, expressing it both as a scalar (positive if CCW, negative if CW) and as a vector quantity. (b) Determine the coordinates of the points on the x- and y-axes about which the moment of F is zero. 1.7 m, a 3,b 7. AssumexA 1.4 m, yA y, m A (x y a F b ----x, m
Force F, 1 kN, is applied in the negative y-direction at point B. The magnitudes of...

Force F, 1 kN, is applied in the negative y-direction at point B. The magnitudes of the tension in the cables are T(BC) = 707 N and T(BD) = 1500 N. Point E is 3m from point A. a) Calculate the vectors representing the tensions in the cables. b) Determine the internal force and moment system in the bar at x-section E. Show the internal forces and moment on free body diagram. 6 m I) 6 3

Chapter 2, Problem 2/110 The 4.6-lb force is applied at point A of the crank assembly....

Chapter 2, Problem 2/110 The 4.6-lb force is applied at point A of the crank assembly. Determine the moment of this force about point O F 4.6 lb 24 0.95" 1.35" k) lb-in Answer: Mo + Chapter 2, Problem 2/110 The 4.6-lb force is applied at point A of the crank assembly. Determine the moment of this force about point O F 4.6 lb 24 0.95" 1.35" k) lb-in Answer: Mo +

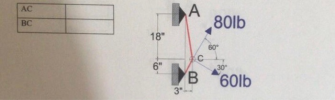

1.-.- Determine the heat of force of members AC and BC assuming that node C is...

1.-.- Determine the heat of force of members AC and BC assuming that node C is in equilibrium 2.- Reduce the displayed system to a torque wrench (Point O, A, and B; Resulting Force; Resulting Moment; Torque Wrench Moment; Passed Torque Wrench; Torque Wrench Shaft): 3.-A horsepower equivalent to 550 pound-feet / s. One watt equals 1 N-m / s A) Determine the number of you are generated by the Wright brothers plane (1903), which had a 12 horsepower engine...
Q2) The force F acts on the end of the pipe at B. Determine (a) the...

Q2) The force F acts on the end of the pipe at B. Determine (a) the moment of this force about point A, and (b) the magnitude and direction of a horizontal force, applied at C, which produces the same moment. 6 mat 70 N 0.7 m

4 1182 20 m 30 m 0 A tension force of T 72 kN is applied...

4 1182 20 m 30 m 0 A tension force of T 72 kN is applied to cable AB. Calculate the moment about point O due to the force T. Express the result in vector notation NOTES IMAGES DISCUSS UNITS STATS HELP Part Description Answer Chk History Calculate the x component of the moment vector about point O (include units with answer) 8.33 pts, 100% # tries: 0 | Show Details Format Check 596 try penalty Hints: 1.0 Calculate the...
Force F 3.4 kN acts at point o, as shown. Force F has direction angles a:...

Force F 3.4 kN acts at point o, as shown. Force F has direction angles a: 61.40, β-115.5, and r-400 F=3.4 kN 540 mm --..:,' 360 mm 720 mm Determine the magnitude in N·m and direction angles in degrees of the moment of the force about point A. M 2115 × N·m YA Submit Answer Save Progress Practice Another Version ncial Aid VerifiupdfA
Problem 4.32 The pipe assembly is subjected to the force of F = {700 i +...

Problem 4.32 The pipe assembly is subjected to the force of F = {700 i + 800 j - 600 k} N. (Figure 1) Part A Determine the x, y, and z components of the moment of this force about point A. Express your answers using three significant figures separated by commas. o ? ADO vec Me, My, M: = - 180i, 90j, - 90k Figure N ·m < 1 of 1 > Submit Previous Answers Request Answer X Incorrect;...

Using the position vector from A to C, calculate the moment about segment A B due to force F.

The general process (not referenced to Figure 1) to calculate the moment of a force about a specified axis is as follows:The magnitude of a moment about a line segment connecting points P and Q due to a force F applied at point R (with R not on the line through P and Q ) can be calculated using the scalar triple product,MPQ=uPQ · r × Fwhere r is a position vector from any point on the line through P...
