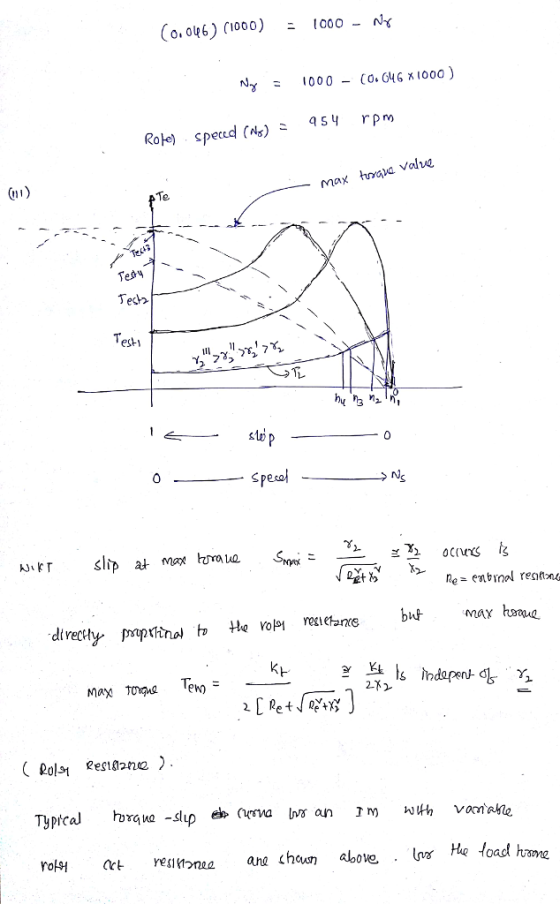

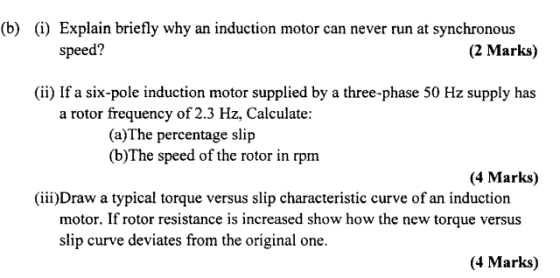

(b) (i) Explain briefly why an induction motor can never run at synchronous speed? (2 Marks) (ii) If a six-pole induction motor supplied by a three-phase 50 Hz supply has a rotor frequency of 2.3 Hz, Calculate: (a)The percentage slip (b)The speed of the rotor in rpm (4 Marks) (iii)Draw a typical torque versus slip characteristic curve of an induction motor. If rotor resistance is increased show how the new torque versus slip curve deviates from the original one. (4 Marks)

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

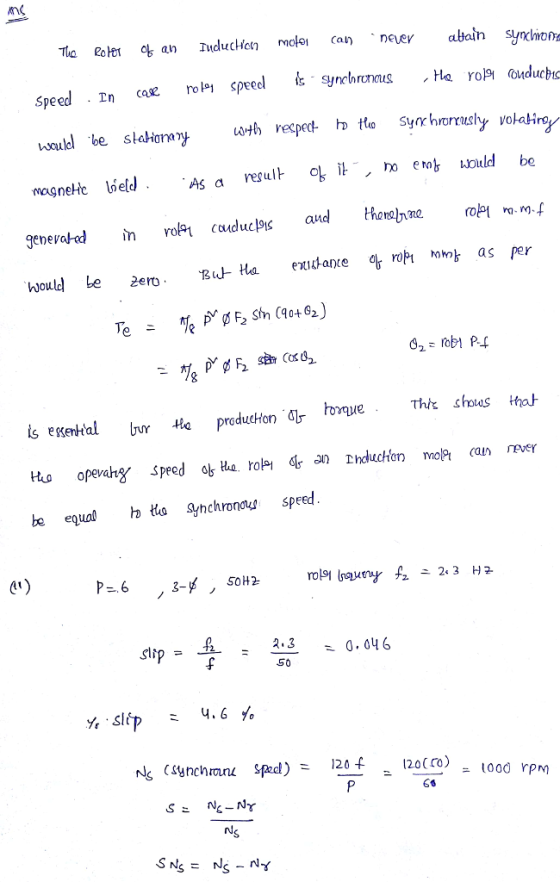

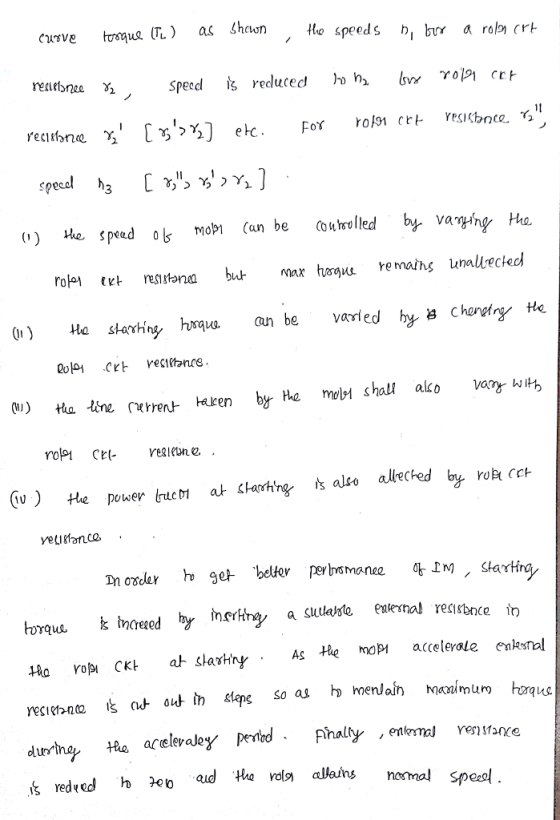

wale be stahor@깡 wth respect b tto syrr hrorrusly volaHro monec eld vesulto uuldbe generard in rom ca ducps and Horobne roPl㎎, m, f 02 rob P Ho opevahg Speed o a Endechenrever be eual h ta Sychos speed er) ns

0 0
Add a comment
Know the answer?
Add Answer to:
(b) (i) Explain briefly why an induction motor can never run at synchronous speed? (2 Marks)...
