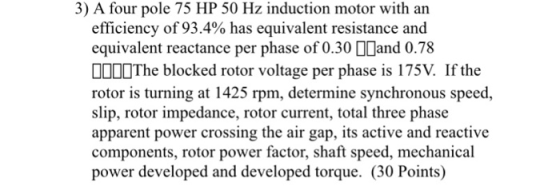

3) A four pole 75 HP 50 Hz induction motor with an efficiency of 93.4% has...
A 3-phase, 208 V, 60 Hz, 30 hp, four-pole induction motor
A 3-phase, 208 V, 60 Hz, 30 hp, four-pole induction motor has the following equivalent circuit parameters. R1 = 0.2 Ω, , , Xm = 12Ω.The rotational loss is 500 W. For a slip of 5%, calculate (a) The motor speed in rpm and radians per sec (b) The current drawn by the motor from the power supply (c) The stator cu-loss (d) The air gap power (e) The rotor cu-loss (f) The shaft power (g)The developed torque and the shaft torque (h) The efficiency of the motor Use...
1. A 20 hp, 230 V, 60 Hz, four-pole, three-phase induction motor operating at rated load...
1. A 20 hp, 230 V, 60 Hz, four-pole, three-phase induction motor operating at rated load has rotor copper loss of 331 W, and a combined friction, windage, and stray power loss of 249 W. Determine, (a) Mechanical power developed; (b) Air-gap power; (c) Shaft speed; (d) Shaft torque (10 pts.)
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the ...
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters in Ω/phase referred to the stator: R,-0.220, Xi = 0.430, X,-15.0, R2 0.130 and X2-0.430. Mechanical and core losses amount to 300 W and 200 W respectively for rated voltage. (a) The motor is fed with a 60 Hz, 208 V voltage. It runs with a slip of 4.5 %. Find the speed, shaft torque and power, efficiency and power...
5 Marks) A 4-pole, 3 phase, 50 Hz, 230 V induction motor. Each phase of rotor winding b) has one-fourth the number of t...
5 Marks) A 4-pole, 3 phase, 50 Hz, 230 V induction motor. Each phase of rotor winding b) has one-fourth the number of turns of each stator. The full-load speed is 1,455 rpm. The rotor resistance is 0.3 Ω and rotor standstill reactance is 1.0 Ω per phase. The rotor and stator windings are similar. Stator losses are equal to 50 Watts. Friction and windage losses are equal to 30 W. Calculate ) Blocked rotor voltage per phase. 2 Marks)...
A 2 pole ac induction motor operates on a 480 V three phase power system. The...
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with a full load shaft speed of 3400 rpm. The motor currently operates a 3510 rpm. determine the mechanical power the motor develops in hp using the slip method.
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with...
A 480 V, 60 Hz, 4-pole-pair, three-phase, delta-connected induction motor has the following parameters: R1=0.42 Ω,...
A 480 V, 60 Hz, 4-pole-pair, three-phase, delta-connected induction motor has the following parameters: R1=0.42 Ω, R2=0.23 Ω, X1=0.48 Ω, X2=0.29 Ω, Xm=29.71 Ω where: R1 is the stator resistance R2 is the rotor resistance reflected in the stator; X1 is the stator leakage inductance; X2 is the rotor leakage inductance reflected in the stator; Xm is the magnetising inductance; The rotational losses are 2450 W. The motor drives a mechanical load at a speed of...
A 4-pole, 60 hz, 3-phase induction motor has a blocked rotor reactance per phase that is...
A 4-pole, 60 hz, 3-phase induction motor has a blocked rotor reactance per phase that is four times the rotor resistance per phase. At what speed will the motor develop maximum torque? 1200 rpm 1500 rpm 1350 rpm 1620 rpm What is the ratio of maximum to full load torque in a motor having slip of 4% at full load and 20% at maximum torque? 15 3 2.6 5.2 If a motor has a slip of 2% at rated voltage,...
The input power to a 480V, 3 phase, 6 pole, 50 Hz induction motor is 75kW...
The input power to a 480V, 3 phase, 6 pole, 50 Hz induction motor is 75kW with a line current of 75A and runs at a slip of 2.5%. If the stator core loss is 2 kW, windage and friction loss is 1.2 kW, and the stator resistance per phase is 0.16 ohm. Calculate: a. Power supplied to the rotor (Air gap power) b. Rotor copper loss c. Shaft power d. Efficiency of the motor e. Shaft torque f What...
a 3 phase 440v induction motor has produced an output power of 75 hp and full...
a 3 phase 440v induction motor has produced an output power of 75 hp and full load efficiency of 91% and power factor of 83%. A calculate nominal line current B if stator resistance per phase is .1omh what are copper losses at stator ? C if losses are 1.2 kw what is power delivered to rotor d determine i2r losses in rotor . E what is slip f synchronous speed is 1800 rpm what is the speed of motor
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and...
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and friction losses-51 kW following characteristics 4. iron losses in the stator-39 kW 5. locked rotor current at 6000 V-1800 A 6. active power to the stator with rotor locked 2207 kw Calculate under full-load voltage locked-rotor conditions a. Reactive power absorbed by the motor b. FR losses in the stator...
1. A 20 hp, 230 V, 60 Hz, four-pole, three-phase induction motor operating at rated load has rotor copper loss of 331 W, and a combined friction, windage, and stray power loss of 249 W. Determine, (a) Mechanical power developed; (b) Air-gap power; (c) Shaft speed; (d) Shaft torque (10 pts.)
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters in Ω/phase referred to the stator: R,-0.220, Xi = 0.430, X,-15.0, R2 0.130 and X2-0.430. Mechanical and core losses amount to 300 W and 200 W respectively for rated voltage. (a) The motor is fed with a 60 Hz, 208 V voltage. It runs with a slip of 4.5 %. Find the speed, shaft torque and power, efficiency and power...
5 Marks) A 4-pole, 3 phase, 50 Hz, 230 V induction motor. Each phase of rotor winding b) has one-fourth the number of turns of each stator. The full-load speed is 1,455 rpm. The rotor resistance is 0.3 Ω and rotor standstill reactance is 1.0 Ω per phase. The rotor and stator windings are similar. Stator losses are equal to 50 Watts. Friction and windage losses are equal to 30 W. Calculate ) Blocked rotor voltage per phase. 2 Marks)...
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with a full load shaft speed of 3400 rpm. The motor currently operates a 3510 rpm. determine the mechanical power the motor develops in hp using the slip method.
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with...
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and friction losses-51 kW following characteristics 4. iron losses in the stator-39 kW 5. locked rotor current at 6000 V-1800 A 6. active power to the stator with rotor locked 2207 kw Calculate under full-load voltage locked-rotor conditions a. Reactive power absorbed by the motor b. FR losses in the stator...
