HomeworkLib
Question

a 3 phase 440v induction motor has produced an output power of 75 hp and full...

a 3 phase 440v induction motor has produced an output power of 75 hp and full load efficiency of 91% and power factor of 83%. A calculate nominal line current B if stator resistance per phase is .1omh what are copper losses at stator ? C if losses are 1.2 kw what is power delivered to rotor d determine i2r losses in rotor . E what is slip f synchronous speed is 1800 rpm what is the speed of motor
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

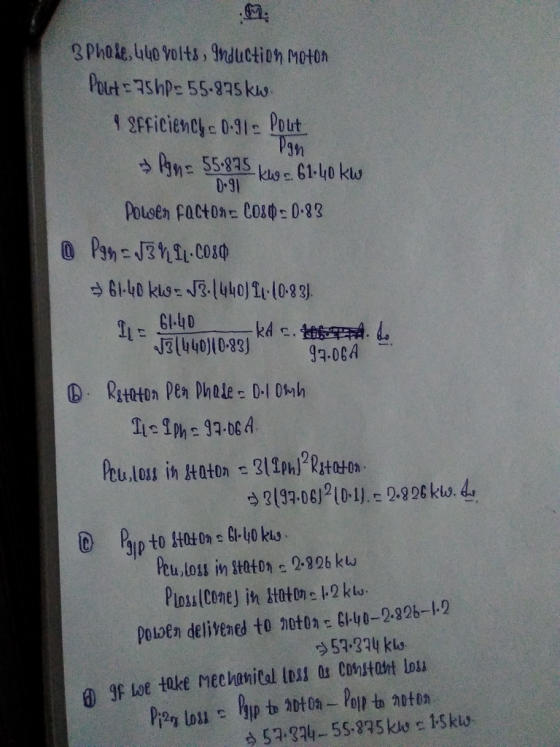

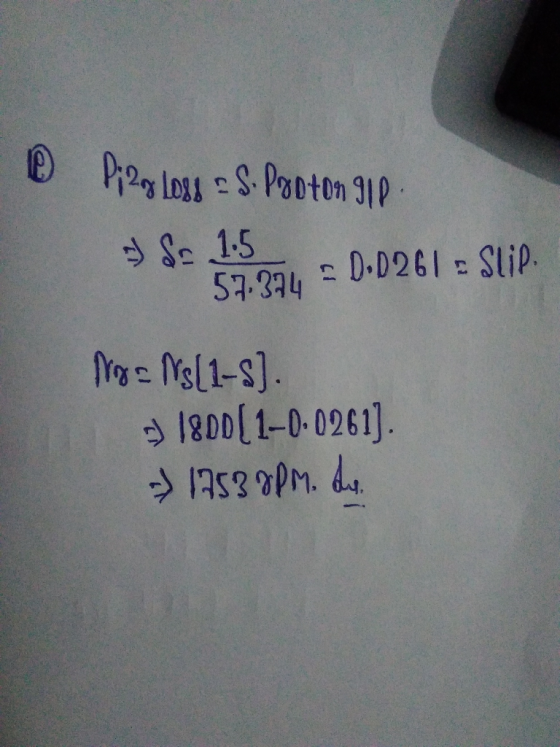

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
a 3 phase 440v induction motor has produced an output power of 75 hp and full...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 1. A three phase, 60 Hz, 100-hp, 440V, Y-connected induction motor runs at 864 rpm when...

    1. A three phase, 60 Hz, 100-hp, 440V, Y-connected induction motor runs at 864 rpm when it operates at rated load. Calculate the following 1. Number of poles of the machine. 2. slip at full load. 3. Rotor frequency. 4. speed of rotor field with respect to the stator. 5. speed of the rotor magnetic field with respect to the stator magnetic rotating field.

  • 6. A 3-phase 2.2 kV 25 Hz squirrel cage induction motor draws a line current of...

    6. A 3-phase 2.2 kV 25 Hz squirrel cage induction motor draws a line current of 224 A and a total power of 777 kW when operating at full load. The full-load speed is 245 rpm. The stator is wye connected and has an effective resistance per phase of 0.125 Ω. The stator iron (core) loss is 8.88 kW; friction and windage losses are 4.54 kW. Calculate at full-load conditions: b. power supplied to the rotor, a. the power factor;...

  • Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and...

    Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and friction losses-51 kW following characteristics 4. iron losses in the stator-39 kW 5. locked rotor current at 6000 V-1800 A 6. active power to the stator with rotor locked 2207 kw Calculate under full-load voltage locked-rotor conditions a. Reactive power absorbed by the motor b. FR losses in the stator...

  • The input power to a 480V, 3 phase, 6 pole, 50 Hz induction motor is 75kW...

    The input power to a 480V, 3 phase, 6 pole, 50 Hz induction motor is 75kW with a line current of 75A and runs at a slip of 2.5%. If the stator core loss is 2 kW, windage and friction loss is 1.2 kW, and the stator resistance per phase is 0.16 ohm. Calculate: a. Power supplied to the rotor (Air gap power) b. Rotor copper loss c. Shaft power d. Efficiency of the motor e. Shaft torque f What...

  • 14. The following details are known about a 200 hp, 500 V, 435 rpm de shunt motor: full-load current is 330 A, insulation class is H, weight is 3400 kg, external diameter of the frame is 915 mm a...

    14. The following details are known about a 200 hp, 500 V, 435 rpm de shunt motor: full-load current is 330 A, insulation class is H, weight is 3400 kg, external diameter of the frame is 915 mm and length of the frame is 1260 mm. If the motor is running at full-load, calculate: a. the total losses and efficiency. b, the approximate shunt field exciting current if the shunt field causes 15% of the total losses. the value of...

  • 3) A four pole 75 HP 50 Hz induction motor with an efficiency of 93.4% has...

    3) A four pole 75 HP 50 Hz induction motor with an efficiency of 93.4% has equivalent resistance and equivalent reactance per phase of 0.3000and 0.78 000OTHE blocked rotor voltage per phase is 175V. If the rotor is turning at 1425 rpm, determine synchronous speed, slip, rotor impedance, rotor current, total three phase apparent power crossing the air gap, its active and reactive components, rotor power factor, shaft speed, mechanical power developed and developed torque. (30 Points)

  • 8) The motor model for a 3-phase 480V 1750 RPM induction motor is shown below. Stray...

    8) The motor model for a 3-phase 480V 1750 RPM induction motor is shown below. Stray losses are 1000W. Assuming it is running at full rated load in the United States, find: 0.01 j0.14 j0.14 0 _ 0.01 A 19 j16 30.01/18 ) Synchronous Speed= RPM Number of poles= Poles Slip= Stator current iz = Amps Rotor current lz= Amps Magnetization currently = Amps Watts HP Volts Power across the air gap= h) 3-phase shaft (brake) horsepower= Terminal Voltage "V"=...

  • Question 20: If the total input power of an induction motor is 13KW, what is the...

    Question 20: If the total input power of an induction motor is 13KW, what is the air gap power of this motor if the total stator copper losses are 2.oKW, the friction and windage losses are 800W and the total core losses are 1.9 KW. Question 21: A three-phase Y-connected 250-V, 8-kW 50-Hz 4-pole induction motor has the following parameter values in Ω/phase referred to the stator: R1 0.294; R2 0.144 X1 0.503;X2-0.209; Xm 13.25 The total friction, windage, and...

  • Problem Solving: 1. A 220V, 4-pole, 60Hz, 1-phase induction motor has an effective rotor resistance and...

    Problem Solving: 1. A 220V, 4-pole, 60Hz, 1-phase induction motor has an effective rotor resistance and leakage reactance of 0.5 Ohms and 5 ohms respectively. It is running at a speed of 1,800 rpm. Determine: a. Frequencies of forward and backward rotor current components b. Relative magnitudes of forward and backward fluxes. Neglect magnetizing current and stator impedance. A 220-W, 2-pole, 115-V, 60-Hz single-phase induction motor delivers rated output at a slip 10%. The total copper loss at full load...

  • [1. The shaft output of a three-phase, 60 Hz induction motor is 100 HP. The friction...

    [1. The shaft output of a three-phase, 60 Hz induction motor is 100 HP. The friction and windage losses are 900 W, the stator core loss is 4200 W, and the stator copper loss is 2700 W. If the slip is 3.75%, what is the efficiency of the motor.

ADVERTISEMENT
Free Homework Help App
Download From Google Play
Scan Your Homework
to Get Instant Free Answers
Need Online Homework Help?
Ask a Question
Get Answers For Free
Most questions answered within 3 hours.
ADVERTISEMENT
ADVERTISEMENT
