Problem 1 (27 points) Consider composite beam shown in image below. a) Draw internal force diagrams (6) b) Draw transform section and find its moment of inertia (9) c) Draw normal stress and strain d...

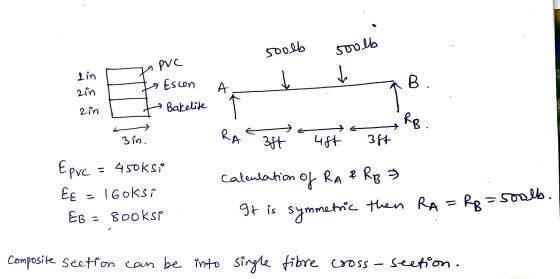

Problem 1 (27 points) Consider composite beam shown in image below. a) Draw internal force diagrams (6) b) Draw transform section and find its moment of inertia (9) c) Draw normal stress and strain diagram at cross-section with max moment (6) d) Find shear stress at the interface between PVC and Escon (6) 500 lb 500 lb PVC Epvc 450 ksi Escon EF160 ksi 3 ft 3 ft in. 2 in 3 in.
Problem 1 (27 points) Consider composite beam...
ר The shaft shown consists of asteeltubeT bonded to a brass core (2)The shearmodulusofsteeTs 11,400 ksi...
ר The shaft shown consists of asteeltubeT bonded to a brass core (2)The shearmodulusofsteeTs 11,400 ksi and the elastic modulus of brass is 5,200 ksi. A torque of 250 lb-ft is applied at A. a) Write the equilibrium and compatibility equation(s) needed to solve the problem along with supporting sketches Calculate the internal torques of each member in lb-in. Calculate the maximum shear stress in the system in psi. You will have to look at each individual piece of the...
The billboard sign shown weighs 4000 lb and is supported on a 15" circular hollow steel...
The billboard sign shown weighs 4000 lb and is supported on a 15" circular hollow steel tube with 3/8" thickness. The sign will be built in west Mobile and is subjected to wind forces with maximum wind speed of 160 mph. The hollow steel tube has a maximum compressive/tensile strength of 50 Ksi and a maximum shear strength of 10 Ksi. Determine if the hollow steel tube has enough axial and shear strength to support loads applied to the sign....
400 1b 800 lb h = 2.260 in. C8x13.7 L 1.52 in C1.786 in. 4 ft...
400 1b 800 lb h = 2.260 in. C8x13.7 L 1.52 in C1.786 in. 4 ft 4 ft 4 ft 400 lb c, 0.554 in. 800 lb B-1000 1b FBD Av-200 lb V, lb 300:: M, ft lb 800- - ' x, ft 12 4 -16 Figure 24 - Problems 71-72 Determine the maximum normal tensile stress, and the maximum normal compressive stress, (O)max, occurring the channel shown in Fig. 3. The FBD and V&M diagrams are shown Problem 71...
A force and a temperature change were applied to a member. What is the elongation of...
A force and a temperature change were applied to a member. What is the elongation of the following member in inches (to the nearest 0.0001)? a=15 x 1061/°F P = 452 kip L = 33 in To = 62°F Tp = 56 °F E = 10,877 ksi A = 1 in 2 Р b The following cross section has a moment applied around the local X axis (horizontal axis at the centroid). Determine the maximum TENSILE stress in ksi to...
The strain rosette shown was used to obtain normal strain data at a point on the free surface of a machine component. Given the values εa= -185 με, εb= -150 με, εc= 55 με, E = 10,800 ksi, and v = 0.33...
The strain rosette shown was
used to obtain normal strain data at a point on the free surface of
a machine component. Given the values εa= -185 με, εb= -150 με, εc=
55 με, E = 10,800 ksi, and v = 0.33,
determine
(a) the stress components σx, σy, and τxy at the point.
(b) the principal stresses and the maximum in-plane shear stress at
the point; on paper, show these stresses on an appropriate sketch
that indicates the orientation...
Problems 27, 28, & 29 The stress on an element is shown 8 ksi 10 ksi...
Problems 27, 28, & 29 The stress on an element is shown 8 ksi 10 ksi 6 ksi Problem 27 Which Mohr's Circle correctly describes the state of stress? (a) (b) (c) -10 ksi 0 5 ksi 10 ksi 15 ksi -10 ksi -5 ksi 0 S ksi 10 ksi - 10 ksi - ksi 0 S ksi 10 ksi -10 -10 -10 s G 0 (ksi) (ksi) 0 (ksi) 5 5 S 10 - 10 - 10 τ (ksi)...
A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown....
A cantilever beam supports the
loads shown. The cross-sectional dimensions of the shape are also
shown. Assume LAB = 4.0 ft,
LBC = 12.0 ft, w = 1620 lb/ft,
P = 2550 lb, b = 16 in., d = 6 in.,
t = 0.50 in. Determine
(a) the maximum horizontal shear stress.
(b) the maximum compression bending stress.
(c) the maximum tension bending stress.
Chapter 9, Supplemental Question 043 (GO Tutorial) A cantilever beam supports the loads shown. The cross...
The 500-lb concentrated load is perpendicular to the x-z plane and parallel with the y-axis. The...
The 500-lb concentrated load is perpendicular to the x-z plane
and parallel with the y-axis. The Point A is located at the base of
the support structure on the outside face of the hollow circular
tube shown in Section X-X.
a. Compute all stress resultants at the base of hollow circular
tube and compute the stresses associated with each stress resultant
at Point A.
b. Use Mohr’s Circle to find principal stresses and the maximum
shear stress at Point A....
maximum shear stress 10 in. 16 in. 8 in. 6 in. B G D E F...
maximum shear stress
10 in. 16 in. 8 in. 6 in. B G D E F H The pipe which has a diameter of 1.5 in. and weight of 0.8 lb/in is fixed to the wall at B. If a force, F, of 5 lb is applied, determine the maximum shear stress in the pipe at C and its location. Neglect the weight of the cross-bar where the forces, F, are applied. Maximum shear stress
Problem 1 (27 points) Consider composite beam shown in image below. a) Draw internal force diagrams (6) b) Draw transform section and find its moment of inertia (9) c) Draw normal stress and strain diagram at cross-section with max moment (6) d) Find shear stress at the interface between PVC and Escon (6) 500 lb 500 lb PVC Epvc 450 ksi Escon EF160 ksi 3 ft 3 ft in. 2 in 3 in.
Problem 1 (27 points) Consider composite beam...
ר The shaft shown consists of asteeltubeT bonded to a brass core (2)The shearmodulusofsteeTs 11,400 ksi and the elastic modulus of brass is 5,200 ksi. A torque of 250 lb-ft is applied at A. a) Write the equilibrium and compatibility equation(s) needed to solve the problem along with supporting sketches Calculate the internal torques of each member in lb-in. Calculate the maximum shear stress in the system in psi. You will have to look at each individual piece of the...
The billboard sign shown weighs 4000 lb and is supported on a 15" circular hollow steel tube with 3/8" thickness. The sign will be built in west Mobile and is subjected to wind forces with maximum wind speed of 160 mph. The hollow steel tube has a maximum compressive/tensile strength of 50 Ksi and a maximum shear strength of 10 Ksi. Determine if the hollow steel tube has enough axial and shear strength to support loads applied to the sign....
400 1b 800 lb h = 2.260 in. C8x13.7 L 1.52 in C1.786 in. 4 ft 4 ft 4 ft 400 lb c, 0.554 in. 800 lb B-1000 1b FBD Av-200 lb V, lb 300:: M, ft lb 800- - ' x, ft 12 4 -16 Figure 24 - Problems 71-72 Determine the maximum normal tensile stress, and the maximum normal compressive stress, (O)max, occurring the channel shown in Fig. 3. The FBD and V&M diagrams are shown Problem 71...
A force and a temperature change were applied to a member. What is the elongation of the following member in inches (to the nearest 0.0001)? a=15 x 1061/°F P = 452 kip L = 33 in To = 62°F Tp = 56 °F E = 10,877 ksi A = 1 in 2 Р b The following cross section has a moment applied around the local X axis (horizontal axis at the centroid). Determine the maximum TENSILE stress in ksi to...
The strain rosette shown was
used to obtain normal strain data at a point on the free surface of
a machine component. Given the values εa= -185 με, εb= -150 με, εc=
55 με, E = 10,800 ksi, and v = 0.33,
determine
(a) the stress components σx, σy, and τxy at the point.
(b) the principal stresses and the maximum in-plane shear stress at
the point; on paper, show these stresses on an appropriate sketch
that indicates the orientation...
Problems 27, 28, & 29 The stress on an element is shown 8 ksi 10 ksi 6 ksi Problem 27 Which Mohr's Circle correctly describes the state of stress? (a) (b) (c) -10 ksi 0 5 ksi 10 ksi 15 ksi -10 ksi -5 ksi 0 S ksi 10 ksi - 10 ksi - ksi 0 S ksi 10 ksi -10 -10 -10 s G 0 (ksi) (ksi) 0 (ksi) 5 5 S 10 - 10 - 10 τ (ksi)...
A cantilever beam supports the
loads shown. The cross-sectional dimensions of the shape are also
shown. Assume LAB = 4.0 ft,
LBC = 12.0 ft, w = 1620 lb/ft,
P = 2550 lb, b = 16 in., d = 6 in.,
t = 0.50 in. Determine
(a) the maximum horizontal shear stress.
(b) the maximum compression bending stress.
(c) the maximum tension bending stress.
Chapter 9, Supplemental Question 043 (GO Tutorial) A cantilever beam supports the loads shown. The cross...
The 500-lb concentrated load is perpendicular to the x-z plane
and parallel with the y-axis. The Point A is located at the base of
the support structure on the outside face of the hollow circular
tube shown in Section X-X.
a. Compute all stress resultants at the base of hollow circular
tube and compute the stresses associated with each stress resultant
at Point A.
b. Use Mohr’s Circle to find principal stresses and the maximum
shear stress at Point A....
maximum shear stress
10 in. 16 in. 8 in. 6 in. B G D E F H The pipe which has a diameter of 1.5 in. and weight of 0.8 lb/in is fixed to the wall at B. If a force, F, of 5 lb is applied, determine the maximum shear stress in the pipe at C and its location. Neglect the weight of the cross-bar where the forces, F, are applied. Maximum shear stress
