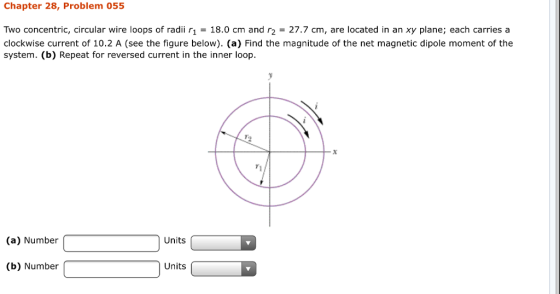

Two concentric, circular wire
loops of radii r1 = 18.0 cm and r2 = 27.7 cm, are located in an xy
plane; each carries a clockwise current of 10.2 A (see the figure

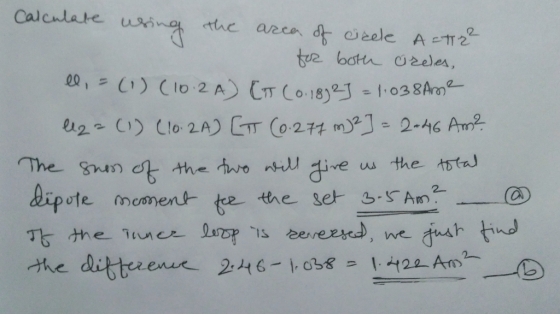

below). (a) Find the magnitude of the net magnetic dipole moment of
the system. (b) Repeat for reversed current in the inner loop.
Homework Answers
