Consider the circuit below, where you need to set your nvalue of k and the value...

Question

Question

Consider the circuit below, where you need to set your nvalue of k and the value of the curreal source ї. Caleulate analytica

engineering Electrical-Engineering

Answer 1

Answer #1

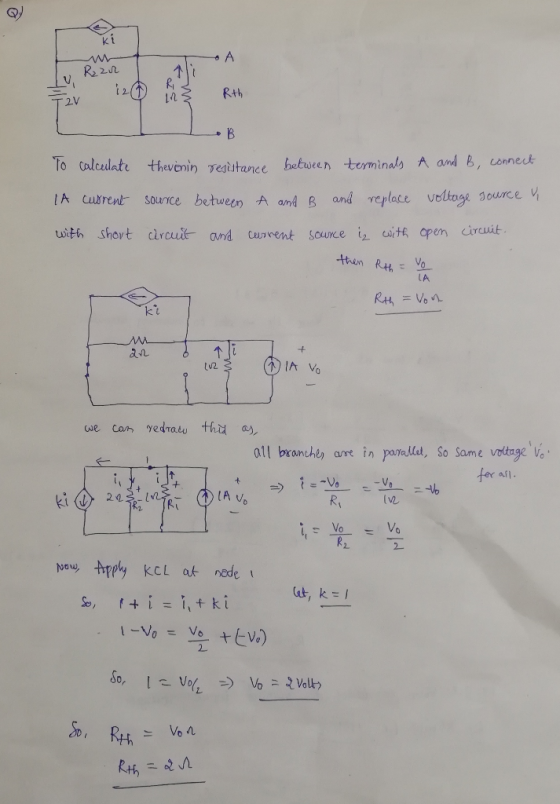

kt 2V Rth ゆB To calculate theveninTedì」tance between terminals and B, connect A urent sounce betwen A amd B and replace velio

Answer 2

Similar Homework Help Questions

In the circuit below, use the method of your choice to compute the voltage drop across...

In the circuit below, use the method of your choice to compute the voltage drop across the 5 Ohm resistor. 2 A R3 20 Ohms R2 10 Ohms +V1 V2 R1 5 Ohms 12 V 6 V QUESTION 10 In the previous problem, suppose that R1 is a "load". Compute the Thevenin equivalent resistance of the remaining circuit.
Consider the circuit below. If R1=102, R2=212, R3=2012, and Is=10 A, Calculate: 1- The currents i1,...

Consider the circuit below. If R1=102, R2=212, R3=2012, and Is=10 A, Calculate: 1- The currents i1, 12, and i3, and the voltage v (20%) 2- The power absorbed by the resistance R3 (10%) 3- The power delivered by the source Is (10%) + i2 | 413 w R1 Is R2 R3 V -
This circuit is a Wheatstone Bridge. It is used for numerous scientific and engineering applications. Here,...

This circuit is a Wheatstone Bridge. It is used for numerous scientific and engineering applications. Here, R1 = 20 kΩ, R2 = 10 kΩ, R3 = 5 kΩ, and R4 = 10 kΩ. ε = 5 V. a) Determine the Thevenin equivalent resistance RTH between points A and B. (Hint: when we remove the power supply and short the circuit, the wire connecting the “top” and “bottom” of the bridge can then be drawn to go right down the center...

Part B. Wheatstone Bridge Circuit with a Current Source Is R5 R1 R2 Is RL R3 R4 For the circuit a...

Part B. Wheatstone Bridge Circuit with a Current Source Is R5 R1 R2 Is RL R3 R4 For the circuit as shown below, given that R1-20 Ω,R2= 12 Ω, R3-18 Ω, R4= 20 Ω, R5= 9 Ω , R.-3 ΩΊ,-15 A. I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage VL-Vab for the Wheatstone bridge circuit with LTspice. Subrnit Answer Tries 0/3 (b) Determining the load current I following from a to b for the Wheatstone bridge circuit with...
Need help with 2,3,4 PROBLEM 2: The two circuits are shown below (circuit A and circuit...

Need help with 2,3,4 PROBLEM 2: The two circuits are shown below (circuit A and circuit B); the ammeters in both circuits have source are interchanged. Calculate the ammeter readings in the two circuits, and comment on the results. negligible resistance. Notice that in the two circuits the position of the ammeter and the voltage R2 Ia 1 10 a AM1 90 V R4 20? R4 30? AM2 R1 5 0 R1 Circuit A Circuit B SHOW WORK FOR CREDIT.
please solve these 2 problems. I will rate you up In the circuit shown below, let...

please solve these 2 problems. I will rate you up In the circuit shown below, let V. - 3 V.1. - 1 mA, R-3k, Ry - 2.5 kA, R = 1 kq Use mesh analysis to find mesh currents I, and 12. Also, find Vı. R1 V1 R2 W 2 is len 3kR 12 R3 100 IMA Problem 5 In the circuit shown below, let V, -8 V, 1. - 2 mA, R2 = 1 k 2, R2 = 400,...

Consider the two-sided limiter circuit below. Let the load resistor RLoad = 1 kQ. The gain...

Consider the two-sided limiter circuit below. Let the load resistor RLoad = 1 kQ. The gain must be 0.8 V/V in the region where the diodes are not limiting. Use a constant voltage drop model for the diodes with VD = 0.7 V. 3. out D2 (1+2 pts) Find the value for voltage source V1 that causes D1 to start limiting the output voltage at -5 V. a. D3 D1 Vin R2 b. (1+2 pts) Find the value for voltage...
(1 point) Problem 1 In the circuit below: V1 = 180 V, V2 = -150 V,...

(1 point) Problem 1 In the circuit below: V1 = 180 V, V2 = -150 V, R1 = 155 12, R2 = 450 S2, R3 = 44 S2, R4 = 97 12. R5 = 119 12, R6 = 1732 Use both resistance and source combinations to find the power absorbed by the R1, R4, and R5 resistors V1 50 R4 I + R1 100 75 R5 w mi 500 g w R6 120 1 + R3 80 V2 2013 Paul...
pls help R1 R3 R2 w w V14 V3+ V2+ Consider the circuit shown below, where...

pls help R1 R3 R2 w w V14 V3+ V2+ Consider the circuit shown below, where R1= 2 Ohm, R2= 8 Ohm, R3= 5 Ohm, V1= 14 V, V2= 9 V, and V3= 16 V. a) Find the potential difference across R1 Number Units b) Find the magniture of the current through R2 Number Units c) Find the power dissipated in R3 Number Units
