2. A component has a fluctuating stress of σ() = 120MPa + 120MPa sin(t). The stress...
2. A component has a fluctuating stress of σ() = 120MPa + 120MPa sin(t). The stress is due to ben...

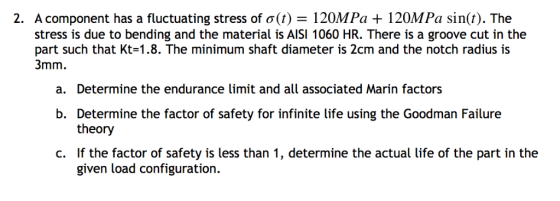

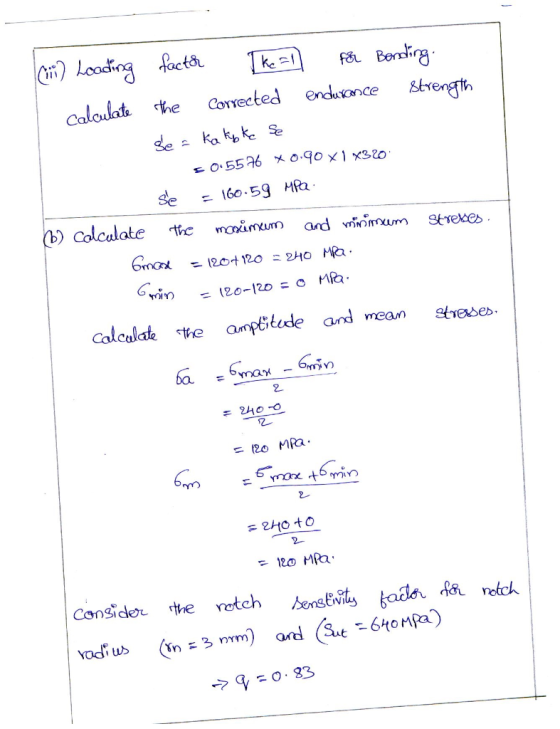

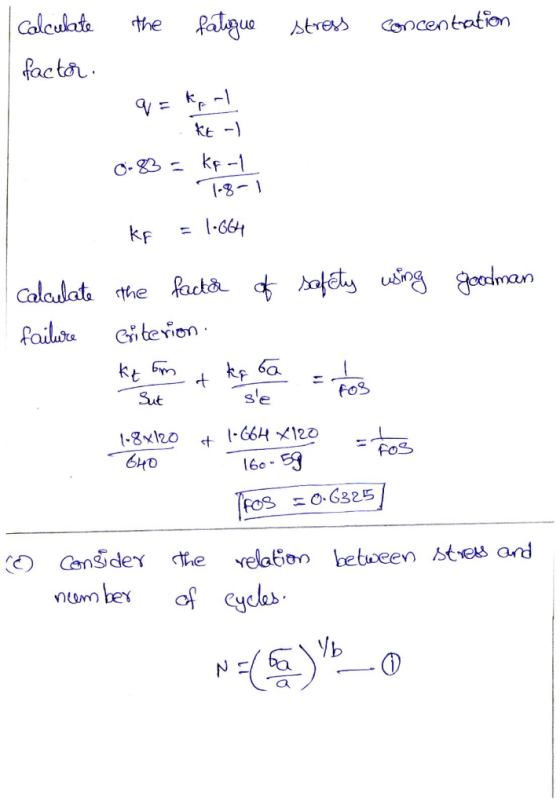

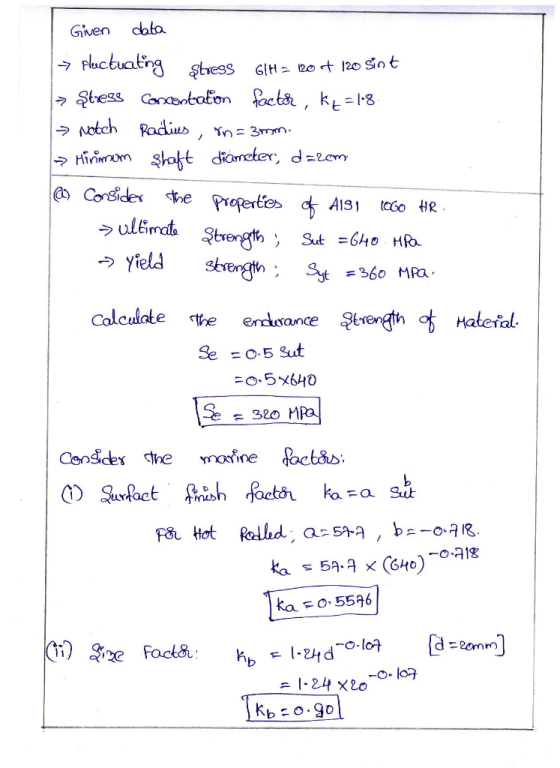

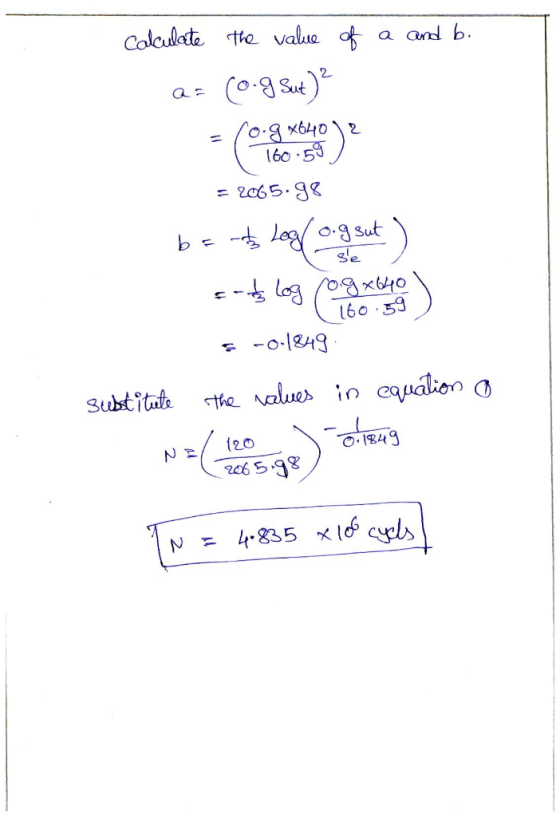

2. A component has a fluctuating stress of σ() = 120MPa + 120MPa sin(t). The stress is due to bending and the material is AlSl 1060 HR. There is a groove cut in the part such that Kt=1.8. The minimum shaft diameter is 2cm and the notch radius is 3mm. a. Determine the endurance limit and all associated Marin factors b. Determine the factor of safety for infinite life using the Goodman Failure c. If the factor of safety is...
Required information A solid round bar with a diameter of 2.97 in has a groove cut...
Required information A solid round bar with a diameter of 2.97 in has a groove cut to a diameter of 2.676 in, with a radius of 0.15 in. The bar is not rotating. The bar is loaded with a repeated bending load that causes the bending moment at the groove to fluctuate between 0 and 25,000 lbf·in. The bar is hot-rolled AISI 1095, but the groove has been machined. Determine the factor of safety for fatigue based on infinite life...
A rotating shaft is made of AISI 1035 CD steel is subjected to an axial load of 710N
A rotating shaft is made of AISI 1035 CD steel is subjected to an axial load of 710N, a fluctuating torque load from 60 to 120 N.m, and a completely reversed bending moment of 160N.m. The shaft has a diameter of 30mm, and operates at T=250°C, and has a life reliability of 95%. Note that the fatigue stress-concentration factor for bending Kfb is 1.49 and that for torque Kft is 2.65..1. Draw the Yield (Langer) line 2. Modified Goodman line. 3. Calculate...
Question 1: A rotating shaft with a diameter of 30 mm is made of 1018 cold-rolled...
Question 1: A rotating shaft with a diameter of 30 mm is made of 1018 cold-rolled steel. The stress concentration factor is 2.366, and the shear stress concentration factor is 1.75 respectively. The notch sensitivity is 0.78 and for shear it's 0.96 Estimate the factor of safety guarding against fatigue failure using modified-Goodman and Soder- berg for each of the following loading conditions: a) The shaft is subjected to a completely reversed torque of 120 N.m in phase with a...
: A 1 in-diameter solid round bar has a groove with a 0.1-in radius machined into...
: A 1 in-diameter solid round bar has a groove with a 0.1-in radius machined into it. The bar is made of steel with an ultimate strength of 120 ksi and it is subjected to an axial force that fluctuates between-5.15 kip and 12.85 kip. The static stress concentration factor at the groove is Kt 2.1. (40 points) a) Classify the problem type based on the loading condition. b) Determine the fatigue factor of safety using the Goodman failure criterion....
PLEASE MAKE SURE THE ANSWERS MATCH THE ONES GIVEN BETWEEN PARENTHESES 1. Fluctuating loading. The cold-drawn...
PLEASE MAKE SURE THE ANSWERS MATCH THE ONES GIVEN BETWEEN
PARENTHESES
1. Fluctuating loading. The cold-drawn AISI 1040 steel bar (S590 MPa, S 490 MPa) shown in the figure is subjected to the following different cyclic loading conditions. Estimate the fatigue factor of safety based on achieving infinite life (use Modified Goodman method) and the yielding factor of safety. If infinite life is not predicted, estimate the number of cycles to failure. The fatigue strength modification factor f 0.87. For...
In the figure below, a rotating shaft (for speed reducing gearbox) is subjected to radial forces at A= 400 lbr
In the figure below, a rotating shaft (for speed reducing gearbox) is subjected to radial forces at A= 400 lbr .and at C = 800 Ibr. These radial forces are caused by spur gears mounted to shaft (a result of the pressure angle of the teeth, 20 degrees) that mesh with 2 other spur gears, not shown. Also, The shaft transmits a constant torque of 11110 in-lbr (925 ft-lbr) due to the tangential force (Wt: transmitted load) at C of...
The stepped shaft shown at right has constant bending moment of 40 N.m at the step
1) The stepped shaft shown at right has constant bending moment of 40 N.m at the step, transmits 75 N.m constant torque and rotates at constant 500 rpm. The shaft was machined from 1040 cold-rolled steel with D = 22.8 mm, d = 19 mm and r = 1.9 mm. Determine fatigue factor of safety for infinite life with reliability of 99%. Use Case 3) Goodman failure and ignore Neuber notch sensitivity. 2) Check factor of safety for fatigue failure of...
A 1045 hot rolled steel rod undergoes axial cyclic loading from a minimum stress of 2...
A 1045 hot rolled steel rod undergoes axial cyclic loading from a minimum stress of 2 kpsi to a maximum of 10 kpsi. The rod has a hole in the center of bar, with a Kt 1.7, and notch sensitivity factor 0.9. The yield strength of bar is 45 kpsi, ultimate strength 82 kpsi, fully endurance limit of 20 kpsi, fatigue strength fraction 0.85. 1. a. Using modified goodman criteria, find FOS b. lfinfinite life is not predicted estimate the...
A 2-in. diameter solid round bar has a groove machined on its surface (see Page 1046...
A 2-in. diameter solid round bar has a groove machined on its surface (see Page 1046 in the textbook) The radius of the groove is 0.1 in. The bar is loaded in cyclic bending that causes the bending moment at the groove to fluctuate between 0 and 25,000 lb.in. The bar material is a hot-rolled SAE 1095 steel Using the Goodman criterion, determine the factor of safety for infinite life.
2. A component has a fluctuating stress of σ() = 120MPa + 120MPa sin(t). The stress is due to bending and the material is AlSl 1060 HR. There is a groove cut in the part such that Kt=1.8. The minimum shaft diameter is 2cm and the notch radius is 3mm. a. Determine the endurance limit and all associated Marin factors b. Determine the factor of safety for infinite life using the Goodman Failure c. If the factor of safety is...
Question 1: A rotating shaft with a diameter of 30 mm is made of 1018 cold-rolled steel. The stress concentration factor is 2.366, and the shear stress concentration factor is 1.75 respectively. The notch sensitivity is 0.78 and for shear it's 0.96 Estimate the factor of safety guarding against fatigue failure using modified-Goodman and Soder- berg for each of the following loading conditions: a) The shaft is subjected to a completely reversed torque of 120 N.m in phase with a...
: A 1 in-diameter solid round bar has a groove with a 0.1-in radius machined into it. The bar is made of steel with an ultimate strength of 120 ksi and it is subjected to an axial force that fluctuates between-5.15 kip and 12.85 kip. The static stress concentration factor at the groove is Kt 2.1. (40 points) a) Classify the problem type based on the loading condition. b) Determine the fatigue factor of safety using the Goodman failure criterion....
PLEASE MAKE SURE THE ANSWERS MATCH THE ONES GIVEN BETWEEN
PARENTHESES
1. Fluctuating loading. The cold-drawn AISI 1040 steel bar (S590 MPa, S 490 MPa) shown in the figure is subjected to the following different cyclic loading conditions. Estimate the fatigue factor of safety based on achieving infinite life (use Modified Goodman method) and the yielding factor of safety. If infinite life is not predicted, estimate the number of cycles to failure. The fatigue strength modification factor f 0.87. For...
A 1045 hot rolled steel rod undergoes axial cyclic loading from a minimum stress of 2 kpsi to a maximum of 10 kpsi. The rod has a hole in the center of bar, with a Kt 1.7, and notch sensitivity factor 0.9. The yield strength of bar is 45 kpsi, ultimate strength 82 kpsi, fully endurance limit of 20 kpsi, fatigue strength fraction 0.85. 1. a. Using modified goodman criteria, find FOS b. lfinfinite life is not predicted estimate the...
A 2-in. diameter solid round bar has a groove machined on its surface (see Page 1046 in the textbook) The radius of the groove is 0.1 in. The bar is loaded in cyclic bending that causes the bending moment at the groove to fluctuate between 0 and 25,000 lb.in. The bar material is a hot-rolled SAE 1095 steel Using the Goodman criterion, determine the factor of safety for infinite life.
