1- VLSI question Froim the layout below draw the Stick Diagram and circuit using transistors. KEY...

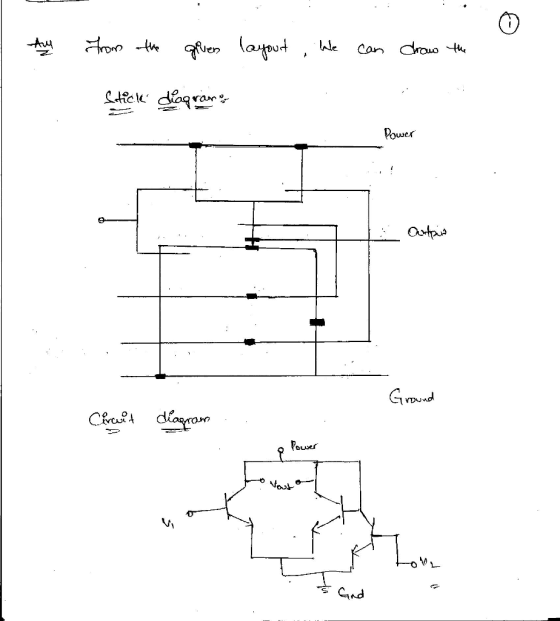

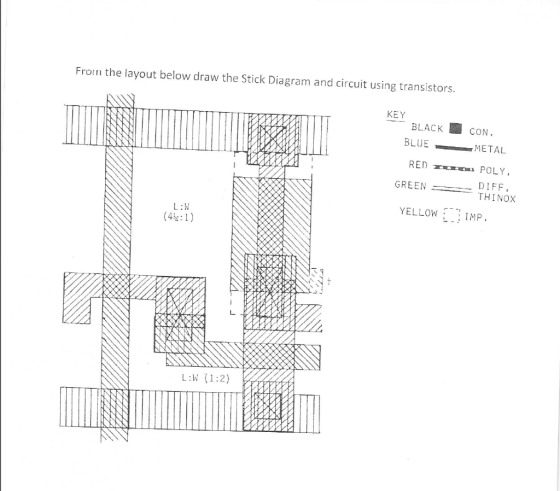

2, From the layout below draw the Stick Diagram and circuit using transistors. KEY BLACK ■ CON. BLUEMETAL RED POLY DIFF. THINOX GREEN = YELLOW -"? IMP. " L :W LW (1:2)
2, From the layout below draw the Stick Diagram and circuit using transistors. KEY BLACK ■ CON. BLUEMETAL RED POLY DIFF. THINOX GREEN = YELLOW -"? IMP. " L :W LW (1:2)
Vlsi:
Please draw the stick diagram for this transistor diagram
using the right color schematics.
Note: Alarm is the output and everything else is the
input.
VoD Vos ligh Aloor ighb
2. Reverse engineer the layout shown below. Draw a) a stick diagram corresponding to the layout S$
2. Reverse engineer the layout shown below. Draw a) a stick diagram corresponding to the layout S$
Sketch the layout of this CMOS static 3-input NAND gate using stick diagram. The stick diagram should include the N-diffusion (green), P-diffusion (yellow), polysilicon (red), metal areas (blue), and contact (black 1) layers should be implemented between a power (V and ground rail. (3 markah/marks)
7. (20pt) For the following Stick Diagram: • (a) Draw the Circuit Diagram. • (b) Which two transistors have shared diffusion? • (c) Write the Boolean Function Equation for OUT. (d) Draw the Logic Diagram using NAND, NOR, INV. (e) Which important items and layers may be missing in the below stick diagram? E D A B C Vdd P+ Active Out N* Active Gnd Metal Poly
The layout of a CMOS complex logic circuit is given in the Figure 1. 1. Draw the corresponding circuit diagram; and a. b. Calculate the (W/equivaientfall the nMOS and PMOS transistors for simultaneous equivalent switching of all the inputs, assuming that (W/L), = 25 for all pMOS transistors and W-20 for all nMOS transistors F(A,B,C,D,E ) A B Figure 1
The layout of a CMOS complex logic circuit is given in the Figure 1. 1. Draw the corresponding circuit diagram;...
The layout of a CMOS complex logic circuit is given in the Figure 1. 4. Draw the corresponding circuit diagram; and (10 Marks) a. b. Colculate the W/Doivalent of all the nMOS and PMOS transistors for simultaneous switching of all the inputs, assuming that (W/, 25 for all MOS transistors and (W/, 20 for al nMOS transistors. (10 Marks) FIA, B,C,D,E ) A B Figure 1
The layout of a CMOS complex logic circuit is given in the Figure 1....
The layout of a CMOS complex logic circuit is given in the Figure 1 4. Draw the corresponding circuit diagram; and (10 Marks) a. b. Calculate the (W) of all the nMOS and PMOS transistors for simultaneous switching (W/), 15 for all of all the inputs, assuming that (Wh),-20 for all pMOS transistors and (w/L), = 15 for all (WL 20 for all pMOS transistors and (10 Marks) nMOS transistors VDD n well metal poly silicon n+ diffussion OUT Contact...
The layout of a CMOS complex logiccircuit is given in the Figure 1 4. (10 Marks) a. Draw the corresponding circuit diagram;and b. calculate the (uivains f allthe nMoS and PMOS transistors for simultaneous switching of all the inputs, assumingthat(W/15 for all pMOS transistors and 10 for all equivalent 15 for all pMOS transistors and(W/D)10for all (10 Marks) nMOS transistors. n+ diffusion p+ diffusion ■ metal OUT polysilicon GND Figure 1
The layout of a CMOS complex logiccircuit is given...
