Consider a submarine in seawater with a water density of 휌 = 1026 kg/m 3 ....

Question

Question

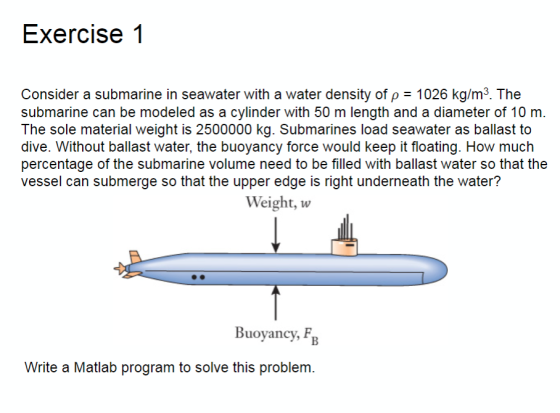

Consider a submarine in seawater with a water density of

휌

= 1026 kg/m

3

. The

submarine can be modeled as a cylinder with 50 m length and a diameter of 10 m.

The sole material weight is 2500000

kg. Submarines load seawater as ballast to

dive. Without ballast water, the buoyancy force would keep it floating. How much

percentage of the submarine volume need to be filled with ballast water so that the

vessel can submerge so that the upper

is right underneath the water?

engineering Mechanical-Engineering

Answer 1

Answer #1

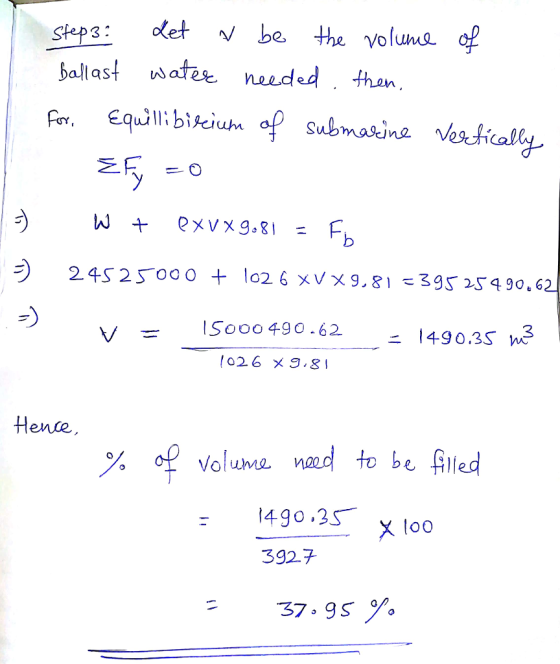

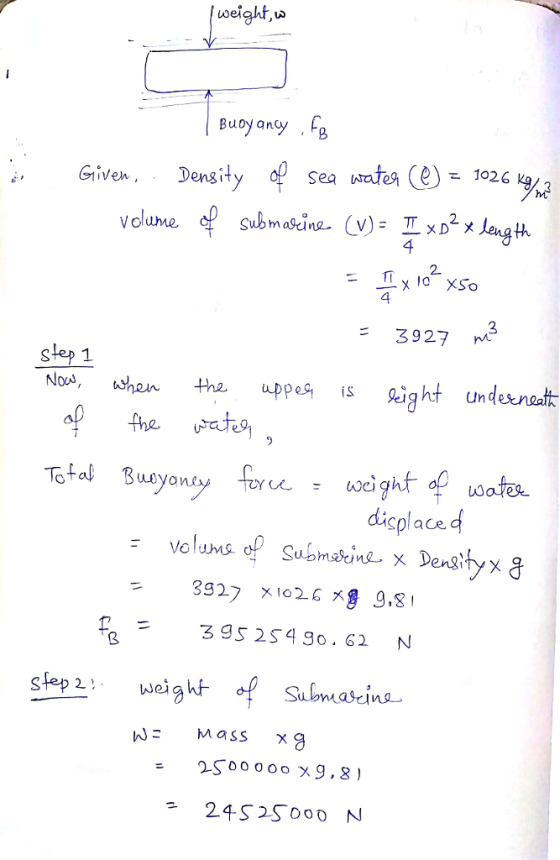

Given, Dengity op sea wataez 1026 4 2. 4 3927 M Novw, ushain h uppes is ight undeenalt the wo Tofal Busyons dicplace d r -525490.62 N Jeigh Mass ×g
