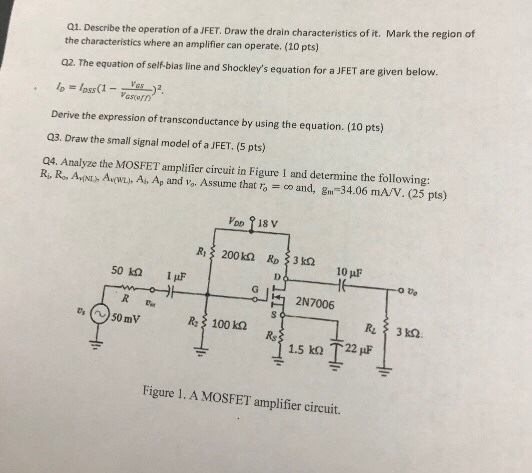

Mark the region of a1. Describe the operation of a JFET. Draw the drain characteristics of...
Please carry out prelab design questions Section Discrete Devices LAB 11 JFET BIAS DESIGN Objective: The...
Please carry out prelab design questions
Section Discrete Devices LAB 11 JFET BIAS DESIGN Objective: The objective of this laboratory is to design a JFET amplifier for specific DC operating point, employing self-bias and voltage-divider bias configurations, and verify the accuracy of the design. Prelab: Carry out the following on a separate sheet of paper. Show your work and box answers. 1. Design the self-bias circuit of Figure 11(a) for a centered operating point at /p=4 mA and Vos =...
Question 1: 7.33 +15V 1O MO R-200k 16n 7k MO 7.33 Figure P7.33 shows a discrete-circuit...
Question 1: 7.33 +15V 1O MO R-200k 16n 7k MO 7.33 Figure P7.33 shows a discrete-circuit amplifier. The input signal is coupled to the gate through a very large capacitor (shown as infinite). The transistor source is connected to ground at signal frequencies via a very large capacitor (shown as infinite). The output voltage signal that develops at the drain is coupled to a load resistance via a very large capacitor (shown as infinite). All capacitors behave as short circuits...
C- Amplifier: Consider figure 3. This circuit uses the JFET to amplify the input signal voltage F...
C- Amplifier: Consider figure 3. This circuit uses the JFET to amplify the input signal voltage First the dc operation must be set. Use equation 1 and your previous data to calculate the value of Vas required to give I-0.5 mA. Determine the source resistance Rs needed to set this bias. Set up the circuit of figure 3 with your calculated value of Rs. Measure Vo and Vs to determine if your operating conditions are correct. Apply an input voltage...
1. Design the common source amplifier shown in Figure 1 with Ip- 1 mA and Vo 5 V Determine V2 and Ri. The MOSFET characteristics are V-50 V, k-0.093 A/V, gate-to- drain capacitance, Cd 40 pF,...
1. Design the common source amplifier shown in Figure 1 with Ip- 1 mA and Vo 5 V Determine V2 and Ri. The MOSFET characteristics are V-50 V, k-0.093 A/V, gate-to- drain capacitance, Cd 40 pF, and Vi 1.1 V. (For PSpice simulations, use parameters: VTO. 1.1 LAMBDA-002 KP-0.093 CGDO-4E-7 w=100u L-I00u for the 2N7000 MOSFET.) a. Determine the gain and gm of the circuit b. Determine the low-frequency (high-pass response) poles of the common-source amplifier due to the coupling...
D **7.124 The MOSFET in the amplifier circuit of Fig. P7.124 has V, 0.6 V and...
D **7.124 The MOSFET in the amplifier circuit of Fig. P7.124 has V, 0.6 V and 5 mA/V'. We shall assume that Vis sufficiently large so that we can ignore the Early effect. The input signal v has a zero average. (a) It is required to bias the transistor to operate at an overdrive voltage 0.2 V. What must the dc voltage at the drain be? Calculate the dc drain current Ip. What value must Rp have? (b) Calculate the...
A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os,...
A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os, is so large it may be neglected. 0) Calculate the open circuit voltage gain Av Yout/ Vis. i) The amplifier has a load of 10 k2. Determine the current gain Va. = 12 V 150k 4k3 Vout Vin 200k GND = 0 V Figure 4b a) State the name...
Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteri...
thanks
Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteristics of an operational amplifier 2. To study the bias circuit of an operational amplifier B. Apparatus: 1. DC Power supply 2. Experimental board and corresponding components 3. Electronic calculator (prepared by students) 4. Digital camera (prepared by students for photo taking of the experimental results) 5. Laptop computer with the software PicoScope 6 and Microsoft Word installed. 6. PicoScope PC Oscilloscope and its accessories. 7. Multimeter...
Homework 4 Due: June 26, 2019, at 5 pm. Note: Show all steps required to get...
Homework 4 Due: June 26, 2019, at 5 pm. Note: Show all steps required to get to your answers and make sure to box them. Writing down answers to questions asked without any explanation(s) will not do it. Clarity should be a priority Moreover, the assigned textbook for this class is Sedra and Smith, Microelectronic Circuits, Seventh Edition, Oxford University Press. Make sure you have the proper book Reminder: In class, we have expressed the overall voltage gain of a...
Vss (b) Find ( Drav amp the variation of D 7.103 Figure P7.103 feedback-bias circuit of...
Vss (b) Find ( Drav amp the variation of D 7.103 Figure P7.103 feedback-bias circuit of Fig. 7.50. Using a 5-V supply with an NMOS transistor for which V, =0.8 V, k. = 8 mA/V =0, provide a design that biases the transistor at I = 1 nA, with Vps large enough to allow saturation operation for a 2-V negative signal swing at the drain. Use 22 MS2 as the largest resistor in the feedback-bias network. What values of R...
V.+w Operation in the triode reglon Condition v. e Wov 20 Vos uov os os-V (2) p V, so onl+Pala Characteristics Same rel...
V.+w Operation in the triode reglon Condition v. e Wov 20 Vos uov os os-V (2) p V, so onl+Pala Characteristics Same relationships as for NMOS trasistos tCharacteristics: a CuGs- V,) ®os- } ip.C Replace .and NA with p,,and Nprespectively. V.V V, and yare negative. 2 wov ps For vos 2( -V) e Conditions for operation in the triode region ip lvi Q1. (10 points) For the following configuration of the given figure below, with the following parameters: VDD= +10...
Please carry out prelab design questions
Section Discrete Devices LAB 11 JFET BIAS DESIGN Objective: The objective of this laboratory is to design a JFET amplifier for specific DC operating point, employing self-bias and voltage-divider bias configurations, and verify the accuracy of the design. Prelab: Carry out the following on a separate sheet of paper. Show your work and box answers. 1. Design the self-bias circuit of Figure 11(a) for a centered operating point at /p=4 mA and Vos =...
Question 1: 7.33 +15V 1O MO R-200k 16n 7k MO 7.33 Figure P7.33 shows a discrete-circuit amplifier. The input signal is coupled to the gate through a very large capacitor (shown as infinite). The transistor source is connected to ground at signal frequencies via a very large capacitor (shown as infinite). The output voltage signal that develops at the drain is coupled to a load resistance via a very large capacitor (shown as infinite). All capacitors behave as short circuits...
C- Amplifier: Consider figure 3. This circuit uses the JFET to amplify the input signal voltage First the dc operation must be set. Use equation 1 and your previous data to calculate the value of Vas required to give I-0.5 mA. Determine the source resistance Rs needed to set this bias. Set up the circuit of figure 3 with your calculated value of Rs. Measure Vo and Vs to determine if your operating conditions are correct. Apply an input voltage...
1. Design the common source amplifier shown in Figure 1 with Ip- 1 mA and Vo 5 V Determine V2 and Ri. The MOSFET characteristics are V-50 V, k-0.093 A/V, gate-to- drain capacitance, Cd 40 pF, and Vi 1.1 V. (For PSpice simulations, use parameters: VTO. 1.1 LAMBDA-002 KP-0.093 CGDO-4E-7 w=100u L-I00u for the 2N7000 MOSFET.) a. Determine the gain and gm of the circuit b. Determine the low-frequency (high-pass response) poles of the common-source amplifier due to the coupling...
D **7.124 The MOSFET in the amplifier circuit of Fig. P7.124 has V, 0.6 V and 5 mA/V'. We shall assume that Vis sufficiently large so that we can ignore the Early effect. The input signal v has a zero average. (a) It is required to bias the transistor to operate at an overdrive voltage 0.2 V. What must the dc voltage at the drain be? Calculate the dc drain current Ip. What value must Rp have? (b) Calculate the...
A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os, is so large it may be neglected. 0) Calculate the open circuit voltage gain Av Yout/ Vis. i) The amplifier has a load of 10 k2. Determine the current gain Va. = 12 V 150k 4k3 Vout Vin 200k GND = 0 V Figure 4b a) State the name...
thanks
Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteristics of an operational amplifier 2. To study the bias circuit of an operational amplifier B. Apparatus: 1. DC Power supply 2. Experimental board and corresponding components 3. Electronic calculator (prepared by students) 4. Digital camera (prepared by students for photo taking of the experimental results) 5. Laptop computer with the software PicoScope 6 and Microsoft Word installed. 6. PicoScope PC Oscilloscope and its accessories. 7. Multimeter...
Homework 4 Due: June 26, 2019, at 5 pm. Note: Show all steps required to get to your answers and make sure to box them. Writing down answers to questions asked without any explanation(s) will not do it. Clarity should be a priority Moreover, the assigned textbook for this class is Sedra and Smith, Microelectronic Circuits, Seventh Edition, Oxford University Press. Make sure you have the proper book Reminder: In class, we have expressed the overall voltage gain of a...
Vss (b) Find ( Drav amp the variation of D 7.103 Figure P7.103 feedback-bias circuit of Fig. 7.50. Using a 5-V supply with an NMOS transistor for which V, =0.8 V, k. = 8 mA/V =0, provide a design that biases the transistor at I = 1 nA, with Vps large enough to allow saturation operation for a 2-V negative signal swing at the drain. Use 22 MS2 as the largest resistor in the feedback-bias network. What values of R...
V.+w Operation in the triode reglon Condition v. e Wov 20 Vos uov os os-V (2) p V, so onl+Pala Characteristics Same relationships as for NMOS trasistos tCharacteristics: a CuGs- V,) ®os- } ip.C Replace .and NA with p,,and Nprespectively. V.V V, and yare negative. 2 wov ps For vos 2( -V) e Conditions for operation in the triode region ip lvi Q1. (10 points) For the following configuration of the given figure below, with the following parameters: VDD= +10...
