A synchronous TDM system has 8 input channels. Each channel sends an amount of data equivalent...
A synchronous TDM system has 8 input channels. Each channel
sends an amount of data equivalent
to 14,000 characters per second (each character is represented by 8
bits).
For each output frame, the TDM system takes 16-bit sample from
each input channel and adds one sync bit at the beginning of
the
frame.
Answer the following questions:

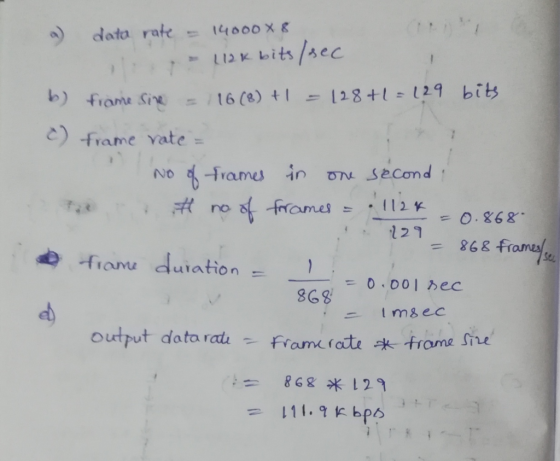

a. What is the data rate (in bit per second) of each source?
b. What is the frame size?
c. What are the frame rate (in frame per second) and frame duration
(in microsecond)?
d. What is the output data rate (in megabit per second) of the
multiplexing link?
Show all workings
Homework Answers
