Four channels are multiplexed using TDM. If the input bit rate is 600 kbps and the...
Four channels are multiplexed using TDM. If the input bit rate is 600 kbps and the multiplexer uses a time slot of 4 bits, what will be the frame duration and the bit duration in the output channel?
Homework Answers
Each frame carries 4 bits from each channel;
the size of each frame, therefore, is 4 * 4 16 bits.
Because each channel is sending 600 kb/s and a frame carries 4 bits
from each channel, the frame rate must be 600 kframes per
second.
Frame Duration = 1/600,000 = 1.67µs
The bit rate is 600000 × 16, or 9600000 bps
Bit duration = 1/9600000 = 0.1 µs
Add Answer to:
Four channels are multiplexed using TDM. If the input bit rate
is 600 kbps and the...
A Time Division Multiplexer combines four 100-Kbps channels employing a time slot of 2 bits
A Time Division Multiplexer combines four 100-Kbps channels employing a time slot of 2 bits. Input on channel 1=01010101. Input on channel 2=10101010, Input on channel 3=00110011 and input on channel 4=11001100 a) With aid of an illustration and using TDM principles show the input messages along the input channels and output massages along the output channel, (insert MUX) b) Determine frame rate and frame duration c) Determine bit rate and bit duration look d) Explain the cause of quantization noise
A multiplexer combines five 750 kbps channels A, B, C, D, E (see Figure 1 below)....
A multiplexer combines five 750 kbps channels A, B, C, D, E (see Figure 1 below). Each frame has 1 synchronisation bit added to the beginning of the frame and has slot size of 6 bits, one slot per channel. Synchronous time division multiplexing will start from Channel A, then B, C, D, E and then back to channel A, then B, C, D, E and so on... a) Draw a diagram to show the content of the first two...
A synchronous TDM system has 8 input channels. Each channel sends an amount of data equivalent...
A synchronous TDM system has 8 input channels. Each channel sends an amount of data equivalent to 14,000 characters per second (each character is represented by 8 bits). For each output frame, the TDM system takes 16-bit sample from each input channel and adds one sync bit at the beginning of the frame. Answer the following questions: a. What is the data rate (in bit per second) of each source? b. What is the frame size? c. What are the...
We need to use synchronous TDM and combine 20 digital sources, each of 100 Kbps. Each output...
We need to use synchronous TDM and combine 20 digital sources, each of 100 Kbps. Each output slot carries 1 bit from each digital source, but one extra bit is added toeach frame for synchronization.What is the size of an output frame in bits?b. What is the output frame rate?c. What is the duration of an output frame?d. What is the output data rate?e. What is the efficiency of the system (ratio of useful bits to the totalbits).
plzz answer quickly is soon as possible thnks a. Define packet switch and Circuit switching network...
plzz answer quickly is soon as possible thnks

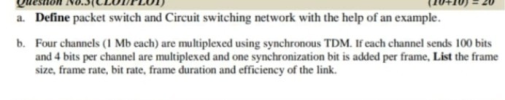

a. Define packet switch and Circuit switching network with the help of an example. b. Four channels (1 Mb each) are multiplexed using synchronous TDM. If each channel sends 100 bits and 4 bits per channel are multiplexed and one synchronization bit is added per frame, List the frame size, frame rate, bit rate, frame duration and efficiency of the link.
Synchronous TDM is used to combine 20 digital sources of 256 kbps. Each output frame carries 32 bits from each source, and 8 extra bits are added for synchronization.
Synchronous TDM is used to combine 20 digital sources of 256 kbps. Each output frame carries 32 bits from each source, and 8 extra bits are added for synchronization.a. What is the size of an output frame in bits?b. What is the output frame rate?c. What is the duration of an output frame?d. What is the output data rate?
1. (ch.7) A PCM/TDM system multiplexes 24 voice band channels. Each sample is encoded into 7...
1. (ch.7) A PCM/TDM system multiplexes 24 voice band channels. Each sample is encoded into 7 bits and a frame consists of one sample from each channel. A framing bit is added to each frame. The sampling rate is 9000 samples/sec. What is the line speed in bits per second? 2. (ch.9) An asynchronous protocol uses 1 start bit, 7 data bits, 2 stop bits and 1 even parity bit for each character. a. How many bits are in a...
4) A multiplexer uses TDM scheme for 15 different signals. Each signal is sampled by flat-top sam...
4) A multiplexer uses TDM scheme for 15 different signals. Each signal is sampled by flat-top sampling with a sampling duration 2.5 μsec. During operation synchronization is provided by using additional 5 bits, each has 4.5 usec duration. a) If the sampling rate is 5kHz, what is the spacing between two channels? b) What should be the sampling rate, to be able to use 2 psec spacing?
4) A multiplexer uses TDM scheme for 15 different signals. Each signal is...
4) A multiplexer uses TDM scheme for 15 different signals. Each signal is sampled by flat-top sam...
4) A multiplexer uses TDM scheme for 15 different signals. Each signal is sampled by flat-top sampling with a sampling duration 2.5 μsec. During operation synchronization is provided by using additional 5 bits, each has 4.5 usec duration. a) If the sampling rate is 5kHz, what is the spacing between two channels? b) What should be the sampling rate, to be able to use 2 usec spacing?
4) A multiplexer uses TDM scheme for 15 different signals. Each signal is...
P6-4. guard band or control) in each hierarchy level (group, supergroup, master group, and jumbo group)....
P6-4. guard band or control) in each hierarchy level (group, supergroup, master group, and jumbo group). We need to use synchronous TDM and combine 20 digital sources, each of 100 Kbps. Each output slot carries 1 bit from each digital source, but one extra bit is added to each frame for synchronization. Answer the following questions: a. What is the size of an output frame in bits? b. What is the output frame rate? c. What is the duration of...
A multiplexer combines five 750 kbps channels A, B, C, D, E (see Figure 1 below). Each frame has 1 synchronisation bit added to the beginning of the frame and has slot size of 6 bits, one slot per channel. Synchronous time division multiplexing will start from Channel A, then B, C, D, E and then back to channel A, then B, C, D, E and so on... a) Draw a diagram to show the content of the first two...
plzz answer quickly is soon as possible thnks
a. Define packet switch and Circuit switching network with the help of an example. b. Four channels (1 Mb each) are multiplexed using synchronous TDM. If each channel sends 100 bits and 4 bits per channel are multiplexed and one synchronization bit is added per frame, List the frame size, frame rate, bit rate, frame duration and efficiency of the link.
1. (ch.7) A PCM/TDM system multiplexes 24 voice band channels. Each sample is encoded into 7 bits and a frame consists of one sample from each channel. A framing bit is added to each frame. The sampling rate is 9000 samples/sec. What is the line speed in bits per second? 2. (ch.9) An asynchronous protocol uses 1 start bit, 7 data bits, 2 stop bits and 1 even parity bit for each character. a. How many bits are in a...
4) A multiplexer uses TDM scheme for 15 different signals. Each signal is sampled by flat-top sampling with a sampling duration 2.5 μsec. During operation synchronization is provided by using additional 5 bits, each has 4.5 usec duration. a) If the sampling rate is 5kHz, what is the spacing between two channels? b) What should be the sampling rate, to be able to use 2 psec spacing?
4) A multiplexer uses TDM scheme for 15 different signals. Each signal is...
4) A multiplexer uses TDM scheme for 15 different signals. Each signal is sampled by flat-top sampling with a sampling duration 2.5 μsec. During operation synchronization is provided by using additional 5 bits, each has 4.5 usec duration. a) If the sampling rate is 5kHz, what is the spacing between two channels? b) What should be the sampling rate, to be able to use 2 usec spacing?
4) A multiplexer uses TDM scheme for 15 different signals. Each signal is...
P6-4. guard band or control) in each hierarchy level (group, supergroup, master group, and jumbo group). We need to use synchronous TDM and combine 20 digital sources, each of 100 Kbps. Each output slot carries 1 bit from each digital source, but one extra bit is added to each frame for synchronization. Answer the following questions: a. What is the size of an output frame in bits? b. What is the output frame rate? c. What is the duration of...
