From the above impulse response, it is observed that the response is exponentially decaying with sinusoidal oscillations with a time period of 1sec.
T0 = 1 sec.
Therefore, the damped frequency is give by f0 = 1/T0 = 1 / 1 = 1Hz
Therefore the frequency in rad sec is 1* 2*pi rad/sec = 6.28 rad/sec.
Therefore the spectrum of the damped oscillations must have the peaks at w = 6.28 rad/sec.
Among the given figures, the last figure has a peak at 6.28 rad/sec.
Hence the fourth figure in the frequency responses (last figure) is the correct option.

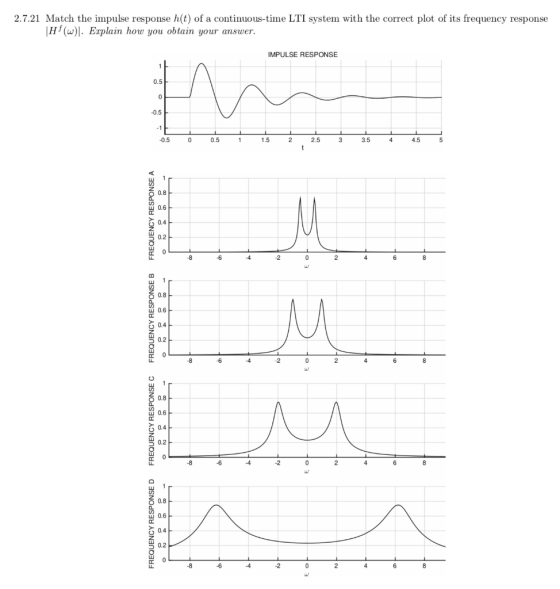

2.7.21 Match the impulse response h(t) of a continuous-time LTI system with the correct plot of...
2.7.5 The impulse response of a continuous-time LTI system is given by h(t) = f(t) - et u(t). (a) What is the frequency response H (w) of this system? (b) Find and sketch H(w). (c) Is this a lowpass, bandpass, or highpass filter, or none of those? 2.7.6 The impulse response of a continuous-time LTI system is given by h(t) = S(t – 2). (This is a delay of 2.) (a) What is the frequency response H (w) of this...
Question 1 (10 pts): Consider the continuous-time LTI system S whose unit impulse response h is given by Le., h consists of a unit impulse at time 0 followed by a unit impulse at time (a) (2pts) Obtain and plot the unit step response of S. (b) (2pts) Is S stable? Is it causal? Explain Two unrelated questions (c) (2pts) Is the ideal low-pass continuous-time filter (frequency response H(w) for H()0 otherwise) causal? Explain (d) (4 pts) Is the discrete-time...
2.7.5 The impulse response of a continuous-time LTI system is given by (a) What is the frequency response H (w) of this system? (b) Find and sketch |H(w) (c) Is this a lowpass, bandpass, or highpass filter, or none of those? 2.7.6 The impulse response of a continuous-time LTI system is given by h(t) = δ(t-2) (This is a delay of 2.) (a) What is the frequency response H (w) of this system? (b) Find and sketch the frequency response...
Create chart or table Consider the system with the impulse response ht)e u(t), as shown in Figure 3.2(a). This system's response to an input of x(t) 1) would be y(t) h(r ult 1). as shown in Figure 3.2(b). If the input signal is a sum of weighted, time-shifted impulses as described by (3.10), separated in time by Δ = 0.1 (s) so that xt)01-0.1k), as shown in Figure 3.2(c), then, according to (3.11), the output is This output signal is...
A continuous-time LTI system has unit impulse response h(t). The
Laplace transform of h(t), also called the “transfer function” of
the LTI system, is
.
For each of the following cases, determine the region of
convergence (ROC) for H(s) and the corresponding h(t), and
determine whether the Fourier transform of h(t) exists.
(a) The LTI system is causal but not stable.
(b) The LTI system is stable but not causal.
(c) The LTI system is neither stable nor causal
8...
Consider an LTI system with the impulse response h(t) = e- . Is the system casual? Explain. Find and plot the output s(t) given that the system input is x(t) = u(t). Note that s(t) in this case is commonly known as the step response of the system. If the input is x(t) = u(t)-u(t-T). Express the output y(t) as a function of s(t). Also, explicitly write the output y(t) as a function of t. a) b) c)
Consider a continuous-time LTI system impulse response h(t) as given below. h(t) = 2/3 e^-tu(t)-1/3 e^2t u(-t) (a) Determine Laplace Transform H(s) of h(t). Determine and clearly sketch its ROC. (b) Is it possible to find the Fourier Transform H(j!) of h(t) by using Laplace Transform? If possible, determine H(j!). Why, or why not? Explain. (c) Is this system causal? Is this system stable? Explain your answers.
Exercise 2.5 response of the LTI system with impulse response h(t)-e cos(2t)u(t)
1. (20 p) Compute and sketch the output y(t) of the continuous-time LTI system with impulse response h(t) = el-tuſt - 1)for an input signal x(t) = u(t) - ut - 3). 2. (20p) Consider an input x[n] and an unit impulse response h[n] given by n-2 x[n] = (4)”- u[n – 2] h[n] = u(n + 2] Determine and plot the output y[n] = x[n] *h[n].
5.44. The impulse responses of four linear-phase FIR filters hi[n], h2[n],h3[n], and h4n]are given below. Moreover, four magnitude response plots, A, B. C, and D, that potentially corre- spond to these impulse responses are shown in Figure P5.44. For each impulse response hi[n 1.....4, specify which of the four magnitude response plots, if any, corresponds to it. If none of the magnitude response plots matches a given hi[n, then specify "none as the answer for that hiIn] h1 [n] :...
