Homework Answers
Add Answer to:

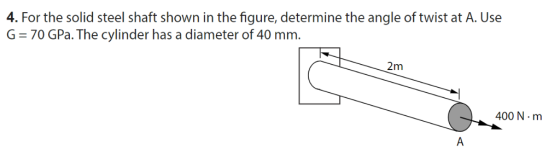

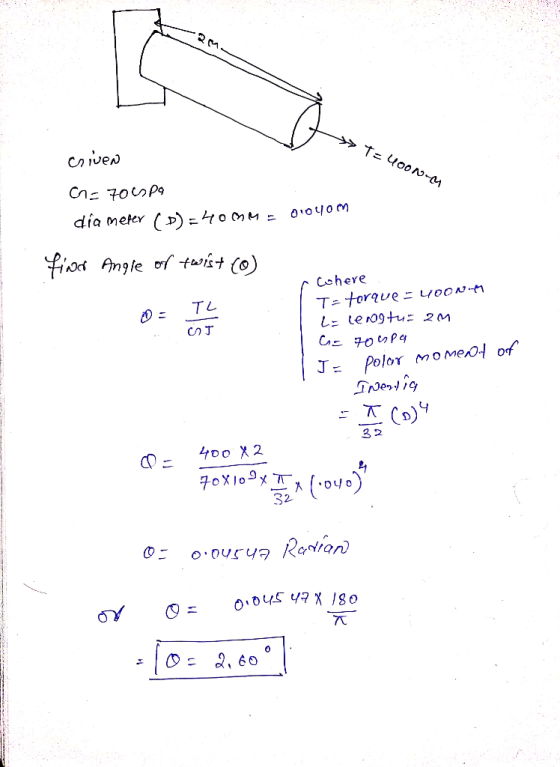

4. For the solid steel shaft shown in the figure, determine the angle of twist at...
Problem 1 (25 Points) Two solid steel (6-80 GPa) shafts are connected by the gears shown. Shaft (1) has a diameter of 45 mm, and shaft (2) has an outside diameter of 55 mm and wall thickness 4 mm...
Problem 1 (25 Points) Two solid steel (6-80 GPa) shafts are connected by the gears shown. Shaft (1) has a diameter of 45 mm, and shaft (2) has an outside diameter of 55 mm and wall thickness 4 mm. Assume that the bearings shown allow free rotation of the shafts. If a 400 N-m torque is applied at gear D, determine (a) the maximum shear stress magnitudes in each shaft. (b) the angles of twist ф, and ф (c) the...
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60...
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T = 524 N·m from the engine to the generator. Determine the angle of twist (0) of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa.
Figure Q3 (a) shows a solid 40 mm diameter steel shaft which is supported by smooth bearings at B and D
Figure Q3 (a) shows a solid 40 mm diameter steel shaft which is supported by smooth bearings at B and D. It is coupled to a motor at C, which delivers 6 kW of power to the shaft while it is turning at 50 Hz. The modulus of rigidity of steel is 80 GPa. The shaft is free to turn in its support bearings at B and D. If gears A and E consume powers of 2 kW and 4...
A. What is the minimum diameter of a solid steel shaft that will not twist through...
A. What is the minimum diameter of a solid steel shaft that will not twist through more than 3° in a 6-m length when subjected to a torque of 12 kN·m? Use G = 83 GPa. B. Determine the bearing stress of the punch out plate of the precious problem, Answer in MPa
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60...
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T=524 N·m from the engine to the generator. Determine the angle of twist (%) of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa. (10 points)
The splined ends and gears attached to the A992 steel shaft are subjected to the torques...
The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown. Determine the angle of twist of end B with respect to end A. The shaft has a diameter of 40 mm. Also, determine the maximum shear stess on shaft. Here, G=75 GPa. 400 Nm 1200 Nm B 600 Nm 600 mm 500 mm 200 Nm 400 mm
2. (25 Points) The splined ends and gears attached to the A992 steel shaft are subjected...
2. (25 Points) The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown. Determine the angle of twist of end B with respect to end A. The shaft has a diameter of 40 mm. For A992 steel, G = 75 GPa. 400 N·m 1200 N·m 600 N.m 600 mm 200 N·m 500 mm 400 mm
#3 4) A mild steel solid shaft 1.8 meters long and 30 mm in diameter withstands...
#3
4) A mild steel solid shaft 1.8 meters long and 30 mm in diameter withstands a tor shear modulus for this steel is 7 shaft. o GPa. Determine the shear stress in the shaft and the angle of twist of the
Mechanics of Materials. Need Help (b) The A-36 solid steel shaft is 3.5 m long and...
Mechanics of Materials. Need Help
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T-524 Nm from the engine to the generator. Determine the angle of twist () of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa.
A. What is the minimum diameter of a solid steel shaft that will not twist through...
A. What is the minimum diameter of a solid steel shaft that will not twist through more than 3° in a 6-m length when subjected to a torque of 12 kN·m? Use G = 83 GPa. B. What maximum shearing stress is developed? C. Determine the bearing stress of the punch out plate of the precious problem, Answer in MPa
Problem 1 (25 Points) Two solid steel (6-80 GPa) shafts are connected by the gears shown. Shaft (1) has a diameter of 45 mm, and shaft (2) has an outside diameter of 55 mm and wall thickness 4 mm. Assume that the bearings shown allow free rotation of the shafts. If a 400 N-m torque is applied at gear D, determine (a) the maximum shear stress magnitudes in each shaft. (b) the angles of twist ф, and ф (c) the...
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T = 524 N·m from the engine to the generator. Determine the angle of twist (0) of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa.
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T=524 N·m from the engine to the generator. Determine the angle of twist (%) of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa. (10 points)
The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown. Determine the angle of twist of end B with respect to end A. The shaft has a diameter of 40 mm. Also, determine the maximum shear stess on shaft. Here, G=75 GPa. 400 Nm 1200 Nm B 600 Nm 600 mm 500 mm 200 Nm 400 mm
2. (25 Points) The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown. Determine the angle of twist of end B with respect to end A. The shaft has a diameter of 40 mm. For A992 steel, G = 75 GPa. 400 N·m 1200 N·m 600 N.m 600 mm 200 N·m 500 mm 400 mm
#3
4) A mild steel solid shaft 1.8 meters long and 30 mm in diameter withstands a tor shear modulus for this steel is 7 shaft. o GPa. Determine the shear stress in the shaft and the angle of twist of the
Mechanics of Materials. Need Help
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T-524 Nm from the engine to the generator. Determine the angle of twist () of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa.
