A. What is the minimum diameter of a solid steel shaft that will not twist through...

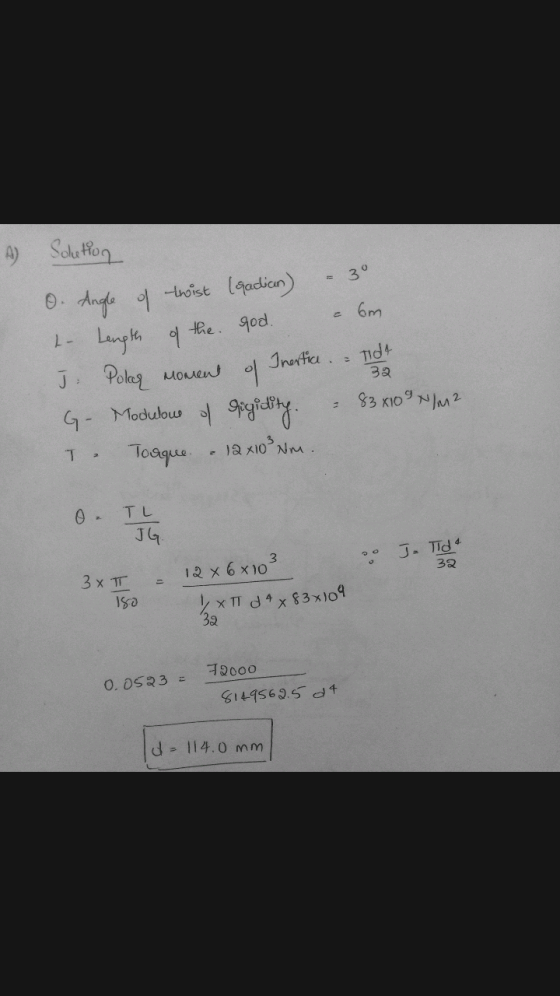

A. What is the minimum diameter of a solid steel shaft that will
not twist through more than 3° in a 6-m length when subjected to a
torque of 12 kN·m? Use G = 83 GPa.
B. Determine the bearing stress of the punch out plate of the
precious problem, Answer in MPa

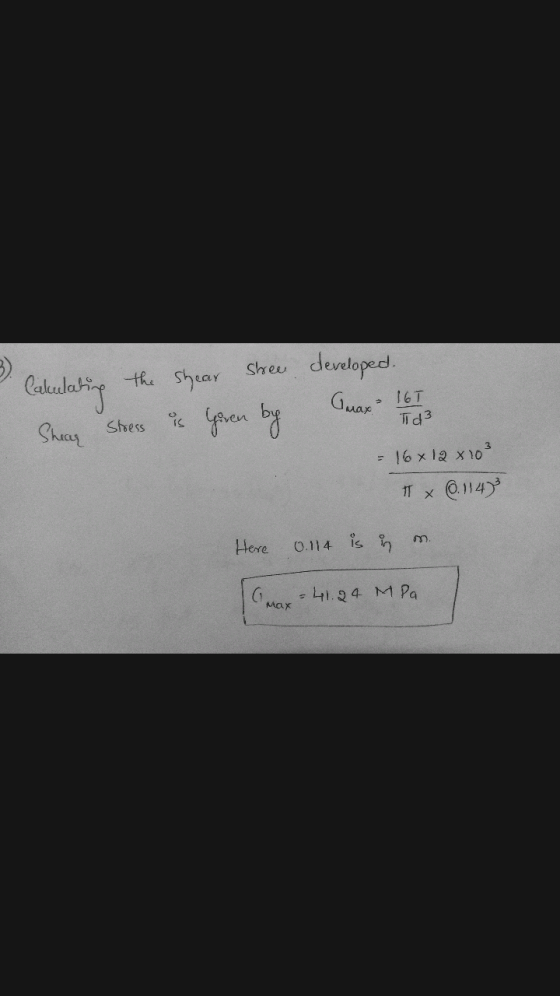

Homework Answers

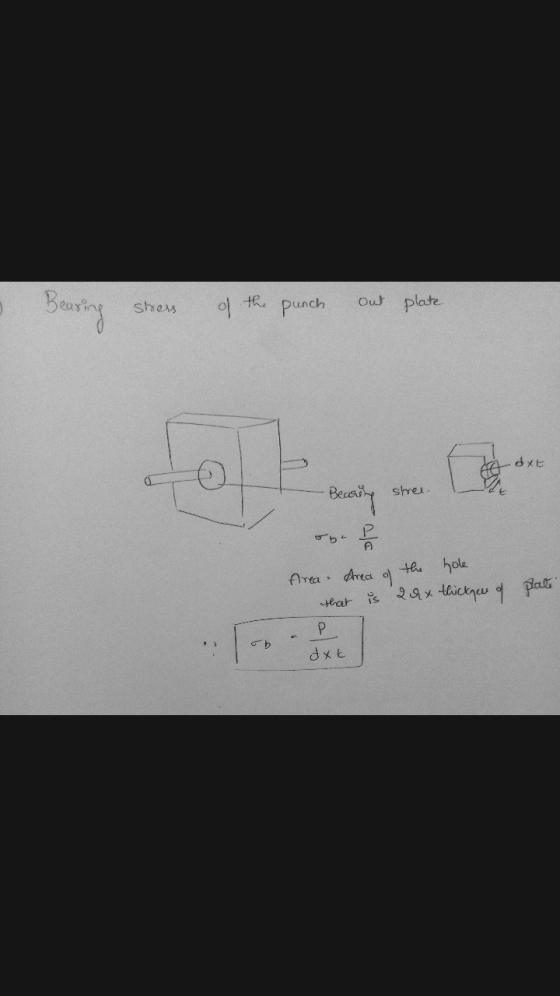

For B)
Assuming there is no thickness of plate I am calculating shear stress from the previous problem.
If at all there is incomplete question of part B considering the thickness and load acting we can calculate the bearing stress.(if at all thickness of plate is given)
