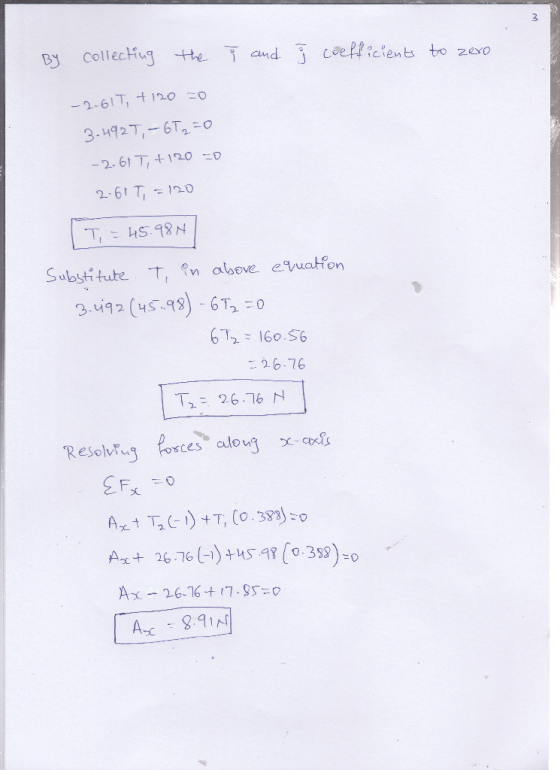

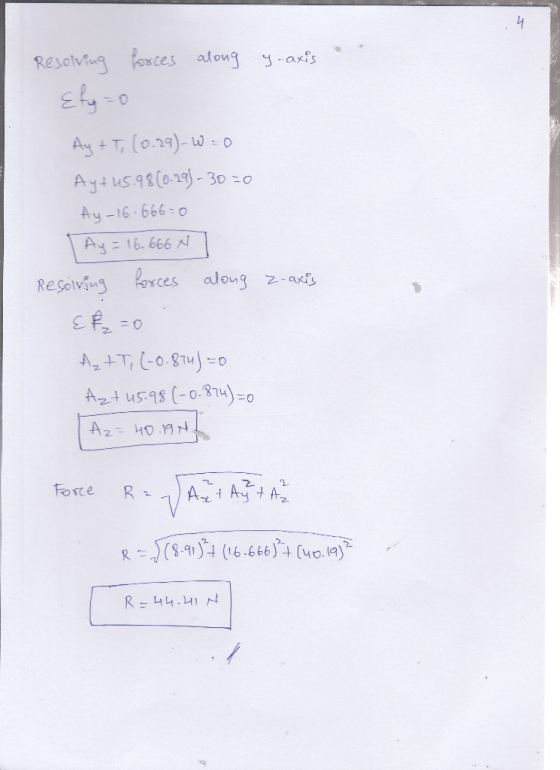

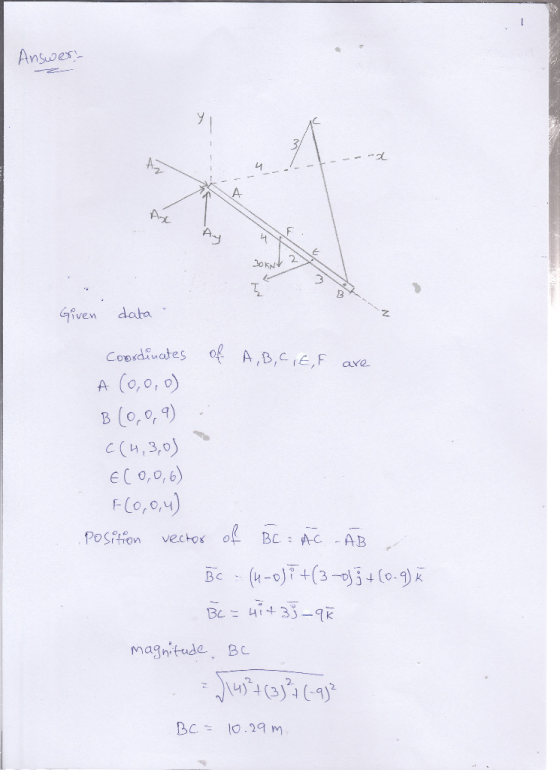

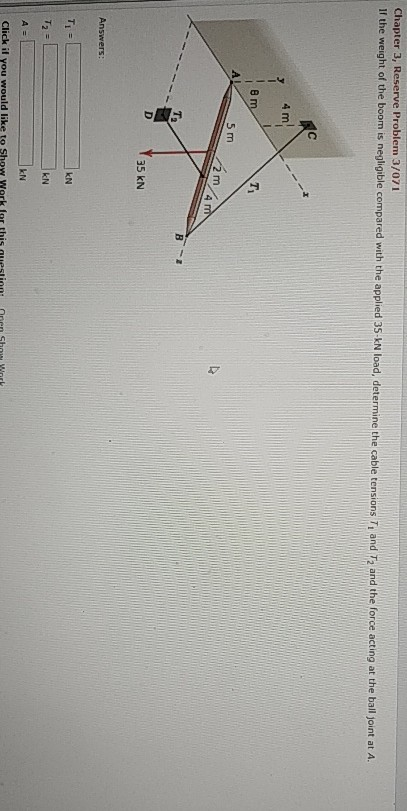

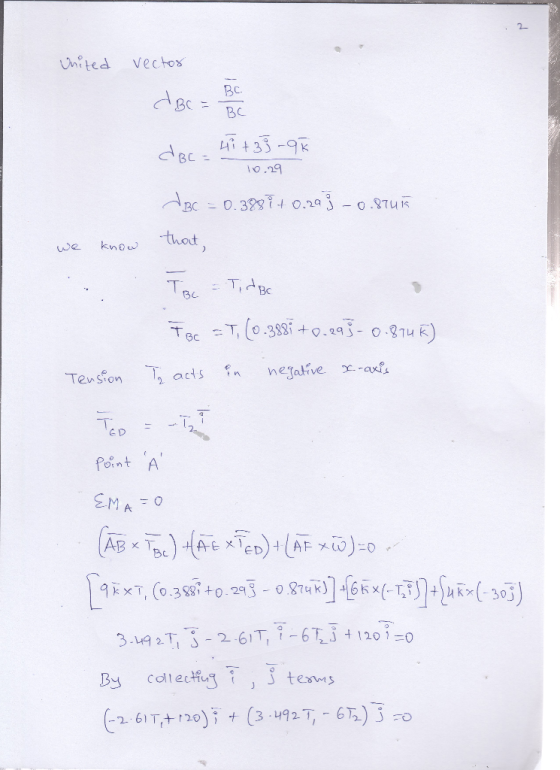

Chapter 3, Reserve Problem 3/071 if the weight of the boom is negligible compared with the...
If the weight of the boom is negligible compared with the applied 35-kN load, determine the...
If the weight of the boom is negligible compared with the applied 35-kN load, determine the cable tensions T1 and T2 and the force acting at the ball joint at A.
Boom AC has negligible weight and is in equilibrium. The boom is supported by cables at...
Boom AC has negligible weight and is in equilibrium.
The boom is supported by cables at D and E and a
ball-and-socket joint at A. The suspended crate weighs 114
lb.
What is the tension (lb) in cable BDC?
What is the tension (lb) in cable CE?
What is the x component of the reaction (lb) (exerted
on the boom by the wall) at A?
What is the y component of the reaction (lb) at
A?
What is the z...
Question 2: (15 Point) The boom ABC is held in place by two cables and a...
Question 2: (15 Point) The boom ABC is held in place by two cables and a ball-and-socket support at A. Force F = 0 i + F j + F k kN is applied at C. Ifthe tension in cable BE is 9-kN and tension in cable BD is 6.4-kN, determine the magnitude of the force Fand D the reactions at A. Weight of the boom is negligible. Do not use geometry .5 m- 1 m
Question 6 3 points Save Answ The boom shown below has negligible weight, but it has sufficient strength to support the 1000 kN load without buckling, What is most nearly the tension in the suppo...
Question 6 3 points Save Answ The boom shown below has negligible weight, but it has sufficient strength to support the 1000 kN load without buckling, What is most nearly the tension in the supporting cable between points A and B? 1000 kN 580 kN 430 kN 200 kN 870 kN
Question 6 3 points Save Answ The boom shown below has negligible weight, but it has sufficient strength to support the 1000 kN load without buckling, What is most...
Write out a hand solution for the following problem. For the figure, the rigid pole AB...
Write out a hand solution for the following problem. For the figure, the rigid pole AB is attached to two cables: one going down to Cland one going down the D. Point A is a frictionless ball and socket joint (a 3D pinned support, if you will), . Draw an appropriate FBD labeling the internal cable tensions (Ti and T:) as well as the forc e reactions at A (x, y, and force reactions). Show all force vectors, resultants, and...
Chapter 4, Reserve Problem 005 The nigd structure ABD shown is supported at y a 35...
Chapter 4, Reserve Problem 005 The nigd structure ABD shown is supported at y a 35 mm diameter tierod (1) and at Aby N acts as shown at D. Determine the normal force in rod (1) 30mm diameter in the rod is connected at and by 24 mm diameter pers. A concentrated lood of P 99 263.3 KN 224.1 kN 128.7 kN 209.5 kN CES Chapter 4, Reserve Problem 005 The rigid structure ABD shown is supported at B by...
Chapter 2, Reserve Problen 2/011 cable AB is 93.67% of the weight of the cylinder of mass m, while the tension in cable...
Chapter 2, Reserve Problen 2/011 cable AB is 93.67% of the weight of the cylinder of mass m, while the tension in cable AC is 60.194% of the suspended weight. write each tension torce acting developed in Chapter 3, you will soon be able to verity that the tension an point A as a vector if the mass m is 75 kg 0.8 m 25m 1.1m Аляwors ТАв - ТАс-,
Chapter 2, Reserve Problen 2/011 cable AB is 93.67% of...
Solve ay four ME 246 Q.i A container of weight W - 1165 N is supported by threecables 530 mm as shown. Determine th...
Solve ay four ME 246 Q.i A container of weight W - 1165 N is supported by threecables 530 mm as shown. Determine the tension in each cable. 600 mm The uniforma steel boom in Fit 22a weighs soo ib. It is supported by two cabks CE uai CD. and a ball-and socket joint at A. The cable supporting the 1000-6 dasses over a small pulley at B. Find the tension in cable CE and in cable 1 4 rt...
Problem 4 (25 points) An overhang beam with negligible weight is loaded as shown. Knowing that...
Problem 4 (25 points) An overhang beam with negligible weight is loaded as shown. Knowing that the flexural rigidity of the beam is EI = 100 x 10 Nm?, (a) derive the elastic curve for section AB of the beam and (b) determine the slope at supports A and B. 10 KN 5 kN/m M 40 kN-m B 4 m - 2 m (a) V = (b) A = es =
Problem 4 (25 points) An overhang beam with negligible weight is loaded as shown. Knowing that...
Problem 4 (25 points) An overhang beam with negligible weight is loaded as shown. Knowing that the flexural rigidity of the beam is El = 100 x 106 Nm?, (a) derive the elastic curve for section AB of the beam and (b) determine the slope at supports A and B. 10 KN 5 kN/m А) M = 40 kN-m B. 4 m - 2 m (a) V= (b) өA = OB
Boom AC has negligible weight and is in equilibrium.
The boom is supported by cables at D and E and a
ball-and-socket joint at A. The suspended crate weighs 114
lb.
What is the tension (lb) in cable BDC?
What is the tension (lb) in cable CE?
What is the x component of the reaction (lb) (exerted
on the boom by the wall) at A?
What is the y component of the reaction (lb) at
A?
What is the z...
Question 2: (15 Point) The boom ABC is held in place by two cables and a ball-and-socket support at A. Force F = 0 i + F j + F k kN is applied at C. Ifthe tension in cable BE is 9-kN and tension in cable BD is 6.4-kN, determine the magnitude of the force Fand D the reactions at A. Weight of the boom is negligible. Do not use geometry .5 m- 1 m
Question 6 3 points Save Answ The boom shown below has negligible weight, but it has sufficient strength to support the 1000 kN load without buckling, What is most nearly the tension in the supporting cable between points A and B? 1000 kN 580 kN 430 kN 200 kN 870 kN
Question 6 3 points Save Answ The boom shown below has negligible weight, but it has sufficient strength to support the 1000 kN load without buckling, What is most...
Write out a hand solution for the following problem. For the figure, the rigid pole AB is attached to two cables: one going down to Cland one going down the D. Point A is a frictionless ball and socket joint (a 3D pinned support, if you will), . Draw an appropriate FBD labeling the internal cable tensions (Ti and T:) as well as the forc e reactions at A (x, y, and force reactions). Show all force vectors, resultants, and...
Chapter 4, Reserve Problem 005 The nigd structure ABD shown is supported at y a 35 mm diameter tierod (1) and at Aby N acts as shown at D. Determine the normal force in rod (1) 30mm diameter in the rod is connected at and by 24 mm diameter pers. A concentrated lood of P 99 263.3 KN 224.1 kN 128.7 kN 209.5 kN CES Chapter 4, Reserve Problem 005 The rigid structure ABD shown is supported at B by...
Chapter 2, Reserve Problen 2/011 cable AB is 93.67% of the weight of the cylinder of mass m, while the tension in cable AC is 60.194% of the suspended weight. write each tension torce acting developed in Chapter 3, you will soon be able to verity that the tension an point A as a vector if the mass m is 75 kg 0.8 m 25m 1.1m Аляwors ТАв - ТАс-,
Chapter 2, Reserve Problen 2/011 cable AB is 93.67% of...
Solve ay four ME 246 Q.i A container of weight W - 1165 N is supported by threecables 530 mm as shown. Determine the tension in each cable. 600 mm The uniforma steel boom in Fit 22a weighs soo ib. It is supported by two cabks CE uai CD. and a ball-and socket joint at A. The cable supporting the 1000-6 dasses over a small pulley at B. Find the tension in cable CE and in cable 1 4 rt...
Problem 4 (25 points) An overhang beam with negligible weight is loaded as shown. Knowing that the flexural rigidity of the beam is EI = 100 x 10 Nm?, (a) derive the elastic curve for section AB of the beam and (b) determine the slope at supports A and B. 10 KN 5 kN/m M 40 kN-m B 4 m - 2 m (a) V = (b) A = es =
Problem 4 (25 points) An overhang beam with negligible weight is loaded as shown. Knowing that the flexural rigidity of the beam is El = 100 x 106 Nm?, (a) derive the elastic curve for section AB of the beam and (b) determine the slope at supports A and B. 10 KN 5 kN/m А) M = 40 kN-m B. 4 m - 2 m (a) V= (b) өA = OB
