You must use a 1MΩ resistor and a 1Ω resistor in an electrical circuit with a...
You must use a 1MΩ resistor and a 1Ω resistor in an electrical
circuit with a 10V battery. What is the largest current possible
(pick the best answer)? Support your answer.
a. > 1μA
b. 1μA
c. > 1A
d. 1A
e. < 1A

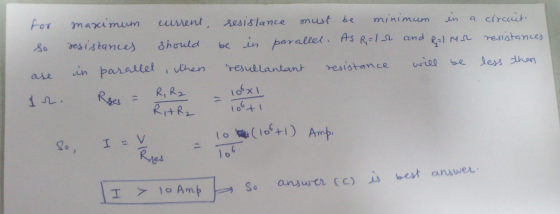

Homework Answers
