Homework Answers

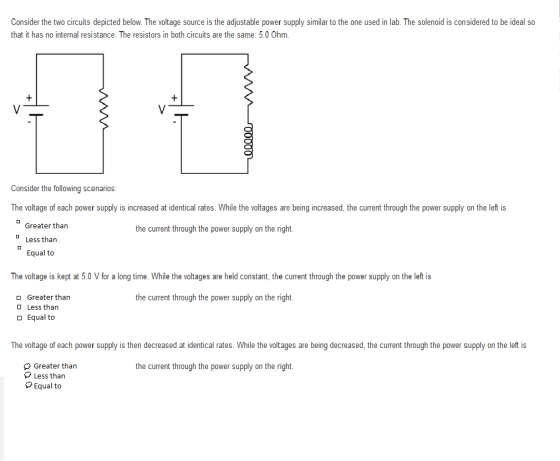

the given circuit are represent the alternating current the first represent alternating voltage applied to resistor
the second circuit represent alternating voltage applied to L-R series circuit
in this circuit 1 the voltage is applied the current is also increases
in the circuit 2 the voltage is applied the current is also decreases
basing on this condition
(1) the current through the power supply on the left is greater than the current through the power supply on the right
(2) the current through the power supply on the left is eaual to the current through the power supply on the right
(3) the current through the power supply on the left is less than the current through the power supply on the right
