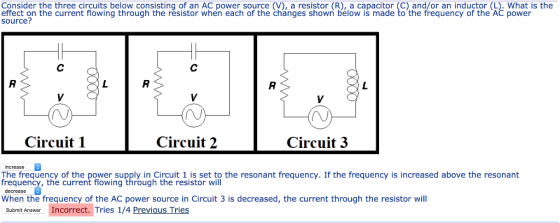

Consider the three circuits below consisting of an AC power source (V), a resistor (R), a...
An external AC voltage source provides a 100 V peak voltage to each of the circuits described below. Assume the peak voltage of the source remains 100 V when the frequency is changed. Select Decrease, Increase or Remain unchanged to each of the following statements. Decrease: The AC voltage source is connected to an inductor and a resistor in series. If the frequency of the source is increased the current n the circuit will A: Increase OB: Decrease C: Remain...
An external AC voltage source provides a 100 V peak voltage to each of the circuits described below. Assume the peak voltage of the source remains 100 V when the frequency is changed. Select Decrease, Increase or Remain Unchanged to each of the following statements. A resistor, capacitor and an inductor are connected to the voltage supply and the circuit is at resonance. If the frequency of the source is decreased, the current in the circuit will __________. A: Increase...
An AC generator supplies an rms voltage of 115 V at 60.0 Hz. It is connected in series with a 0.450 H inductor, a 3.20 μF capacitor and a 396 Ω resistor. What is the impedance of the circuit? 7.69×102 ohm You are correct. Previous Tries What is the rms current through the resistor? 1.50×10-1 A You are correct. Previous Tries What is the average power dissipated in the circuit? Power is only dissipated in a resistor. Thus, you have...
An AC generator supplies an rms voltage of 115 V at 60.0 Hz. It is connected in series with a 0.450 H inductor, a 3.20 μF capacitor and a 396 Ω resistor. What is the impedance of the circuit? 7.69×102 ohm You are correct. Previous Tries What is the rms current through the resistor? You can use a similar equation fo Ohm's law for an RLC circuit. Incorrect. Tries 1/20 Previous Tries What is the average power dissipated in the...
23.104 RLC Series AC Circuits H An RLC series circuit has a 1.90 k resistor, 170 mH inductor, and a 28.0 nF capacitor. Find the power factor at f 8.70 kHz. Tries 0/10 Submit Answer What is the phase angle at this frequency? Submit Answer Tries 0/10 If the voltage source has Vrms = 450 V, what is the average power at this frequency? Submit Answer Tries 0/10 Find the average power at the circuit's resonant frequency Tries 0/10 Submit...
An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 74 volts. At half the resonant frequency, the phase angle is -25 degrees and the inductive reactance is 47 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
A continuous AC voltage with peak voltage of 6 V and frequency f=732398 Hz is connected with a resistor (R-220 Ω), a capacitor with C-0.1 μΕ and an an inductor with L=680 nH. What is the capacitive reactance? What is the inductive reactance? What is the impedance when all three components are connected in SERIES? What is the current when all three components are connected in SERIES? What is the impedance of the circuit when all three components are connected...
Consider a series ac circuit consisting of a voltage source, resistor, capacitor, and inductor. Given their values are: R = 200 Ω, C = 60.0 µF, L = 210 mH, fd= 60.0 Hz, and Em = 25.0 V. Calculate the magnitude and direction of the voltage on the resistor, capacitor, and inductor?
A series circuit consists of an AC source of variable frequency, a 115Ω resistor, a 1.25 μF capacitor, and a 4.50 mH inductor. Find the impedance of this circuit when the angular frequency of the ac source is adjusted to (a) the resonance angular frequency; (b) twice the resonance angular frequency. If the power source provides a peak voltage of 60 V. what ore (c) the peak current in the circuit and (d) the average power dissipated in the circuit...
Consider three different AC circuits (A-C) consist of a resistor, capacitor and inductor, connected in series to a function generator that creates a voltage of Av-2.0 cos(wt) Volts with ?-2x104 rad/s. The circuits are: (A) R-3 ; C-25 F, L-300 H 1. Rank the circuits by the amplitude of the alternating current flowing in the circuit from greatest to least.
