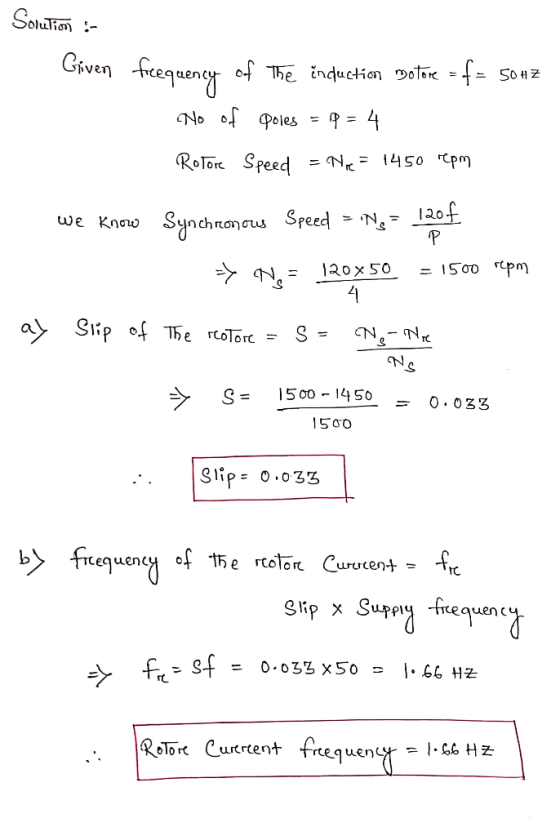

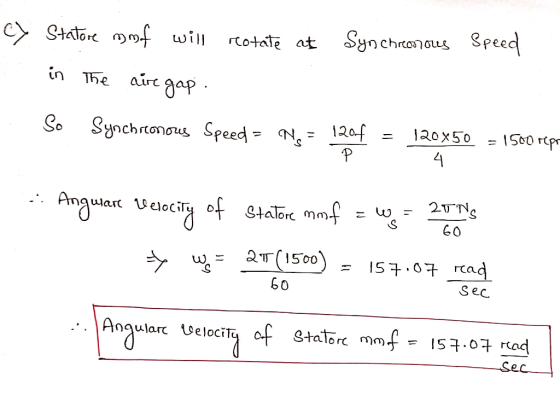

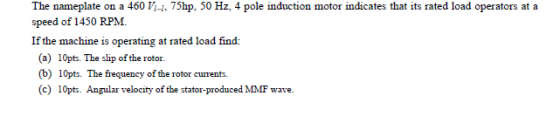

The nameplate on a 460 Vi-i. 75hp, 50 Hz, 4 pole induction motor...
4. A 50-kW, 460-V, 50-Hz, two-pole induction motor has a slip of 5 percent when operating...
4. A 50-kW, 460-V, 50-Hz, two-pole induction motor has a slip of 5 percent when operating a full-load conditions. At full-load conditions, the friction and windage losses are 700 W, and the core losses are 600 W. Find the following values for full-load conditions: (10 pts.) (a) The shaft speed in rpm (b) The output power in horse power (c) The load torque in lb-ft (d) The induced torque in lb-ft (e) The rotor frequency in hertz
1. A six pole, 240V, 50 Hz three phase squirrel-cage induction motor has a no-load speed...
1. A six pole, 240V, 50 Hz three phase squirrel-cage induction motor has a no-load speed of 103 rad/s and a speed regulation of 5% at rated load. Find the amount of slip (in rpm) at full load for this motor. 2.. A 2 HP, 240 VAC, 60 Hz, capacitor-start motor is 75% efficient and draws 10 A at full load. What is this motor's power factor at rated load? 3. A wound rotor, 3 phase induction motor in Mr....
A three-phase 4 pole wye connected 220 V, 15 Hp, 50 Hz induction machine (rated conditions) has t...
A three-phase 4 pole wye connected 220 V, 15 Hp, 50 Hz induction machine (rated conditions) has the following parameters per phase refereed to the stator. RI : 0.29 Ω , R2 0. 14 Ω , Xi-0.50 Ω , X2-0.20 Ω , Xm-1 0.53 Ω The total windage and core losses can be assumed to be a constant 350 W. If the machine is operating at rated voltage and frequency with a 5.5% slip, find the steady-state: (a) 10pts. Mechanical...
A 4-pole, 60 hz, 3-phase induction motor has a blocked rotor reactance per phase that is...
A 4-pole, 60 hz, 3-phase induction motor has a blocked rotor reactance per phase that is four times the rotor resistance per phase. At what speed will the motor develop maximum torque? 1200 rpm 1500 rpm 1350 rpm 1620 rpm What is the ratio of maximum to full load torque in a motor having slip of 4% at full load and 20% at maximum torque? 15 3 2.6 5.2 If a motor has a slip of 2% at rated voltage,...
Problem Solving: 1. A 220V, 4-pole, 60Hz, 1-phase induction motor has an effective rotor resistance and...
Problem Solving: 1. A 220V, 4-pole, 60Hz, 1-phase induction motor has an effective rotor resistance and leakage reactance of 0.5 Ohms and 5 ohms respectively. It is running at a speed of 1,800 rpm. Determine: a. Frequencies of forward and backward rotor current components b. Relative magnitudes of forward and backward fluxes. Neglect magnetizing current and stator impedance. A 220-W, 2-pole, 115-V, 60-Hz single-phase induction motor delivers rated output at a slip 10%. The total copper loss at full load...
Q1 Consider a 24 slot machine. This machine is designed to have 4-poles a) If the...
Q1 Consider a 24 slot machine. This machine is designed to have 4-poles a) If the phase winding 5/6 pitched, draw winding diagram of phase A. b) What is the mechanical angle between the poles of a phase? c) What is the electrical angle between the poles of a phase? d) Calculate the number of coils per phase. e) Each coil has 10 turns. What is the number of turns per phase? f) The phase A current is 5 A....
4.6. A 460-V, 75 kW, 4-pole, delta-connected, 60-Hz, three- phase induction motor has a full-load slip of 5 percent, an efficiency of 92 percent and a power-factor of 0.87 lagging at full-load. At st...
4.6. A 460-V, 75 kW, 4-pole, delta-connected, 60-Hz, three- phase induction motor has a full-load slip of 5 percent, an efficiency of 92 percent and a power-factor of 0.87 lagging at full-load. At start-up, the motor develops 1.9 times the full load developed torque but draws 7.5 times the rated current at the rated voltage. This motor is to be started with an auto- transformer reduced-voltage starter. Assume the stator resistance and the stator core loss to be negligible. Calculate...
A 3-phase, 460 V, 1740 rpm, 60 Hz, 4-pole wound-rotor induction motor has the following parameters...
A 3-phase, 460 V, 1740 rpm, 60 Hz, 4-pole wound-rotor induction motor has the following parameters per phase: R1 = 0.25 Ω, ' 2R = 0.2Ω, ' 1 2 X = X = 0.5Ω, 30 m X = Ω. The rotational losses are 1700 W. With the rotor terminals short-circuited, find: 1. at starting: • current when started direct on full voltage, • a torque 2. at full load: • slip • current • ratio of starting current to full-load...
A four-pole Y-connected, 415 V, 50 Hz, induction motor has phase equivalent circuit parameters of R1=...
A four-pole Y-connected, 415 V, 50 Hz, induction motor has phase equivalent circuit parameters of R1= 2 ohms. R2=2.2 ohms. X1=X2=4 ohms. X(motor)=90 ohms Under rated condition, the rotor slip is 6%. (i) What is the rotor speed and rotor electrical frequency under the rated conditions; (ii) Calculate the stator input current, power factor, and electromagnetic torque under these conditions; (iii) The machine is running at rated conditions and it is to be stopped by switching the two stator leads....
. A 460-V 460-V, 25-hp, 60-Hz, six-pole, Y-connected induction motor has the following impedanc ohms per...
. A 460-V 460-V, 25-hp, 60-Hz, six-pole, Y-connected induction motor has the following impedanc ohms per phase referred to the stator circuit. Ri= 0.212 R2 = 0.282 X1 = 1.055 12 X2 = 1.055 22 XM = 33.9 W The total rotational losses are 1100 W and are assumed to be constant. The core loss is lumped with the rotational losses. For a rotor slip of 4% at the rated voltage and rated frequency, a) The input power b) Peony...
4. A 50-kW, 460-V, 50-Hz, two-pole induction motor has a slip of 5 percent when operating a full-load conditions. At full-load conditions, the friction and windage losses are 700 W, and the core losses are 600 W. Find the following values for full-load conditions: (10 pts.) (a) The shaft speed in rpm (b) The output power in horse power (c) The load torque in lb-ft (d) The induced torque in lb-ft (e) The rotor frequency in hertz
1. A six pole, 240V, 50 Hz three phase squirrel-cage induction motor has a no-load speed of 103 rad/s and a speed regulation of 5% at rated load. Find the amount of slip (in rpm) at full load for this motor. 2.. A 2 HP, 240 VAC, 60 Hz, capacitor-start motor is 75% efficient and draws 10 A at full load. What is this motor's power factor at rated load? 3. A wound rotor, 3 phase induction motor in Mr....
A three-phase 4 pole wye connected 220 V, 15 Hp, 50 Hz induction machine (rated conditions) has the following parameters per phase refereed to the stator. RI : 0.29 Ω , R2 0. 14 Ω , Xi-0.50 Ω , X2-0.20 Ω , Xm-1 0.53 Ω The total windage and core losses can be assumed to be a constant 350 W. If the machine is operating at rated voltage and frequency with a 5.5% slip, find the steady-state: (a) 10pts. Mechanical...
Problem Solving: 1. A 220V, 4-pole, 60Hz, 1-phase induction motor has an effective rotor resistance and leakage reactance of 0.5 Ohms and 5 ohms respectively. It is running at a speed of 1,800 rpm. Determine: a. Frequencies of forward and backward rotor current components b. Relative magnitudes of forward and backward fluxes. Neglect magnetizing current and stator impedance. A 220-W, 2-pole, 115-V, 60-Hz single-phase induction motor delivers rated output at a slip 10%. The total copper loss at full load...
4.6. A 460-V, 75 kW, 4-pole, delta-connected, 60-Hz, three- phase induction motor has a full-load slip of 5 percent, an efficiency of 92 percent and a power-factor of 0.87 lagging at full-load. At start-up, the motor develops 1.9 times the full load developed torque but draws 7.5 times the rated current at the rated voltage. This motor is to be started with an auto- transformer reduced-voltage starter. Assume the stator resistance and the stator core loss to be negligible. Calculate...
. A 460-V 460-V, 25-hp, 60-Hz, six-pole, Y-connected induction motor has the following impedanc ohms per phase referred to the stator circuit. Ri= 0.212 R2 = 0.282 X1 = 1.055 12 X2 = 1.055 22 XM = 33.9 W The total rotational losses are 1100 W and are assumed to be constant. The core loss is lumped with the rotational losses. For a rotor slip of 4% at the rated voltage and rated frequency, a) The input power b) Peony...
