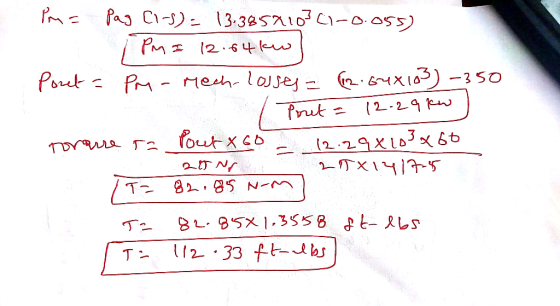

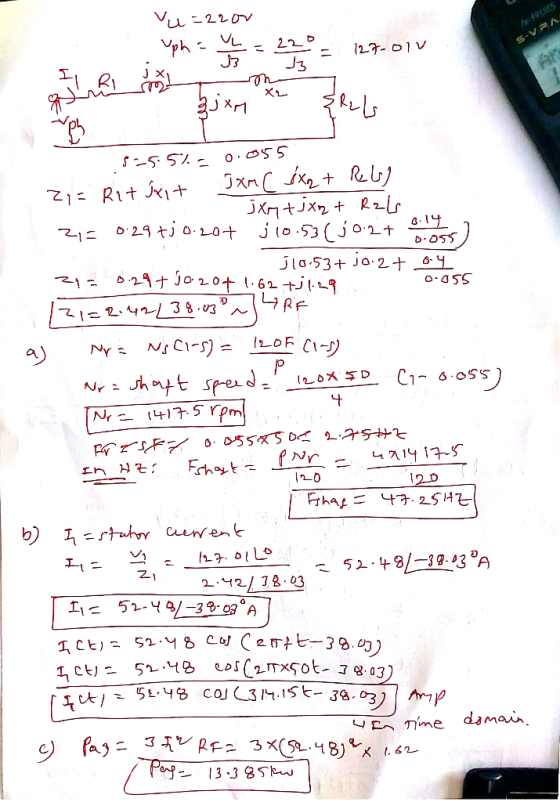

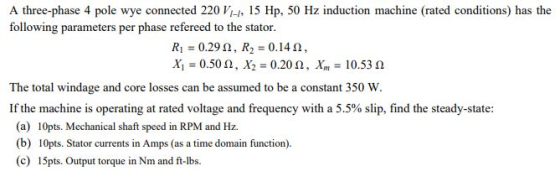

A three-phase 4 pole wye connected 220 V, 15 Hp, 50 Hz induction machine (rated conditions) has t...
A two-pole, 75kW, 440 V, 50 Hz, Y-connected, three-phase squirrel cage induction motor has the fo...
Please solve this question. Thank you.
A two-pole, 75kW, 440 V, 50 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters, in Ω/phase referred to the stator: R1-0.075, XI 0.17, xm-72, R2-0.065 and X-0.17. Its rated slip is 4%. Assume that the mechanical losses are 1 kW and the core losses are 1.1 kW. Compute: a. The rated input current b. The rated power factor. c. The pullout torque d. The induced and load torques at rated conditions....
6. [Induction Motor - 15 points] A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected...
6. [Induction Motor - 15 points] A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor draws 25 A at a power factor of 0.9 lagging. The core loss is 900 W, stator copper loss is 1100 W, friction and windage loss is 300 W, and stray loss is neglected. The machine shaft rotates at a speed of 1738 rpm. Calculate the air gap power and output load torque.
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected induction motor draws 25...
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected
induction motor draws 25 A at a power factor of 0.9 lagging. Core
loss is 900 W, stator copper loss is 1100W, friction and winding
losses are 300 W, and stray loss is neglected. The machine shaft
rotates at 1738 rpm. Calculate the air gap power and output load
torque
- [Induction Motor - 15 points) A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor...
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the ...
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters in Ω/phase referred to the stator: R,-0.220, Xi = 0.430, X,-15.0, R2 0.130 and X2-0.430. Mechanical and core losses amount to 300 W and 200 W respectively for rated voltage. (a) The motor is fed with a 60 Hz, 208 V voltage. It runs with a slip of 4.5 %. Find the speed, shaft torque and power, efficiency and power...
A 120-V (line-neutral) wye-connected 4-pole 60-Hz three-phase induction motor is operating at 100% of its 10-kW...
A 120-V (line-neutral) wye-connected 4-pole 60-Hz three-phase induction motor is operating at 100% of its 10-kW rated output shaft power at 5% slip. What is the frequency of the rotor electrical currents in Hz?
A 3-phase, 208 V, 60 Hz, 30 hp, four-pole induction motor
A 3-phase, 208 V, 60 Hz, 30 hp, four-pole induction motor has the following equivalent circuit parameters. R1 = 0.2 Ω, , , Xm = 12Ω.The rotational loss is 500 W. For a slip of 5%, calculate (a) The motor speed in rpm and radians per sec (b) The current drawn by the motor from the power supply (c) The stator cu-loss (d) The air gap power (e) The rotor cu-loss (f) The shaft power (g)The developed torque and the shaft torque (h) The efficiency of the motor Use...
Problem # 3: Induction Motor Analysis [30 points] The parameters of the per phase equivalent circuit...
Problem # 3: Induction Motor Analysis [30 points] The parameters of the per phase equivalent circuit of a three phase wye-connected, 220 V (line- line, rms) 10 hp, 60 Hz, six-pole induction motor are given as: Ri = 0.3 Ohm, R2-0.15 Ohm, Xi-0.5 Ohms, X2= 0.2 Ohm, Xm-15.0 The total friction, windage and core losses add up to be a constant of 400 W. For a slip of 0.025 with motor operating at rated frequency and stator voltage, calculate the...
Q10. A three phase, 100-hp, 2400V, 6-pole, 50 Hz induction motor is tested, with the following...
Q10. A three phase, 100-hp, 2400V, 6-pole, 50 Hz induction motor is tested, with the following test results obtained: No-load test (at 50 Hz) Block-rotor test (at 12.5 Hz) 420 35 11500 Signal Voltage (V) 2400 Current (A) 10 Power (W) 4200 Stator resistance is measured at 1.75 Ω per phase. a) Find the parameters of the equivalent circuit b) At a slip of 0.25, calculate the power and torque output and the efficiency of this motor. Ans. : a)...
A 480 V, 60 Hz, 4-pole-pair, three-phase, delta-connected induction motor has the following parameters: R1=0.42 Ω,...
A 480 V, 60 Hz, 4-pole-pair, three-phase, delta-connected induction motor has the following parameters: R1=0.42 Ω, R2=0.23 Ω, X1=0.48 Ω, X2=0.29 Ω, Xm=29.71 Ω where: R1 is the stator resistance R2 is the rotor resistance reflected in the stator; X1 is the stator leakage inductance; X2 is the rotor leakage inductance reflected in the stator; Xm is the magnetising inductance; The rotational losses are 2450 W. The motor drives a mechanical load at a speed of...
A 1.6-hp, 8-pole, 60-Hz, three-phase induction motor is rated for 820 rpm, 220 V rms (line-to-line),...
A 1.6-hp, 8-pole, 60-Hz, three-phase induction motor is rated for 820 rpm, 220 V rms (line-to-line), and 4.32 A (line current) at 77.0 percent lagging power factor. Find the full-load efficiency if the motor is delta-connected and if it is wye-connected.
Please solve this question. Thank you.
A two-pole, 75kW, 440 V, 50 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters, in Ω/phase referred to the stator: R1-0.075, XI 0.17, xm-72, R2-0.065 and X-0.17. Its rated slip is 4%. Assume that the mechanical losses are 1 kW and the core losses are 1.1 kW. Compute: a. The rated input current b. The rated power factor. c. The pullout torque d. The induced and load torques at rated conditions....
6. [Induction Motor - 15 points] A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor draws 25 A at a power factor of 0.9 lagging. The core loss is 900 W, stator copper loss is 1100 W, friction and windage loss is 300 W, and stray loss is neglected. The machine shaft rotates at a speed of 1738 rpm. Calculate the air gap power and output load torque.
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected
induction motor draws 25 A at a power factor of 0.9 lagging. Core
loss is 900 W, stator copper loss is 1100W, friction and winding
losses are 300 W, and stray loss is neglected. The machine shaft
rotates at 1738 rpm. Calculate the air gap power and output load
torque
- [Induction Motor - 15 points) A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor...
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters in Ω/phase referred to the stator: R,-0.220, Xi = 0.430, X,-15.0, R2 0.130 and X2-0.430. Mechanical and core losses amount to 300 W and 200 W respectively for rated voltage. (a) The motor is fed with a 60 Hz, 208 V voltage. It runs with a slip of 4.5 %. Find the speed, shaft torque and power, efficiency and power...
Problem # 3: Induction Motor Analysis [30 points] The parameters of the per phase equivalent circuit of a three phase wye-connected, 220 V (line- line, rms) 10 hp, 60 Hz, six-pole induction motor are given as: Ri = 0.3 Ohm, R2-0.15 Ohm, Xi-0.5 Ohms, X2= 0.2 Ohm, Xm-15.0 The total friction, windage and core losses add up to be a constant of 400 W. For a slip of 0.025 with motor operating at rated frequency and stator voltage, calculate the...
Q10. A three phase, 100-hp, 2400V, 6-pole, 50 Hz induction motor is tested, with the following test results obtained: No-load test (at 50 Hz) Block-rotor test (at 12.5 Hz) 420 35 11500 Signal Voltage (V) 2400 Current (A) 10 Power (W) 4200 Stator resistance is measured at 1.75 Ω per phase. a) Find the parameters of the equivalent circuit b) At a slip of 0.25, calculate the power and torque output and the efficiency of this motor. Ans. : a)...
