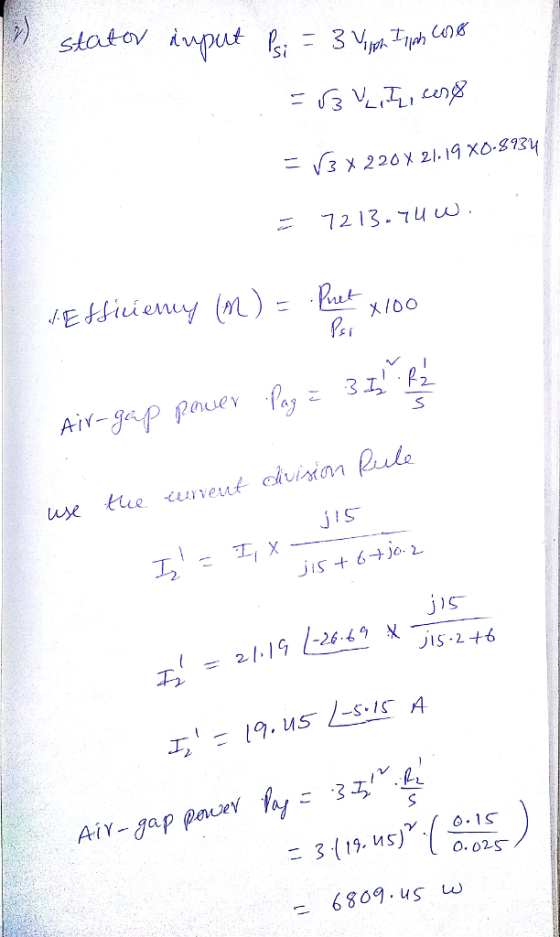

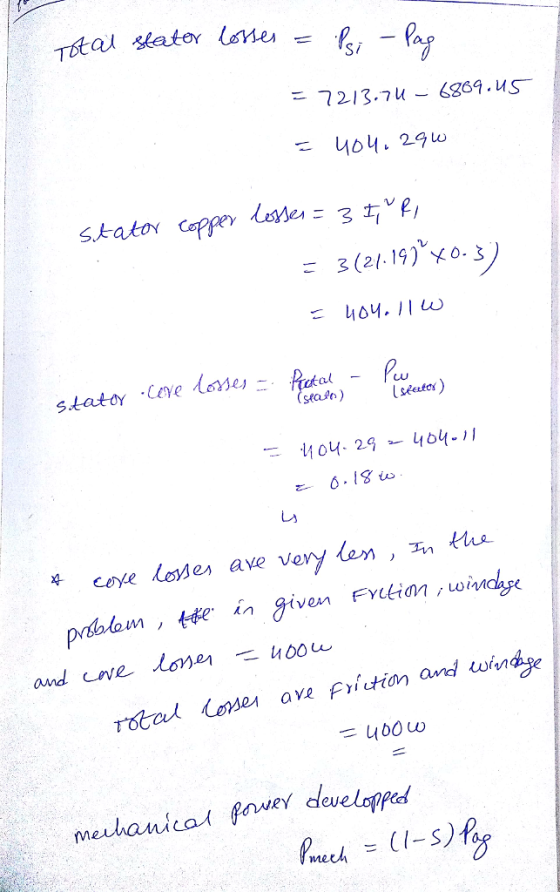

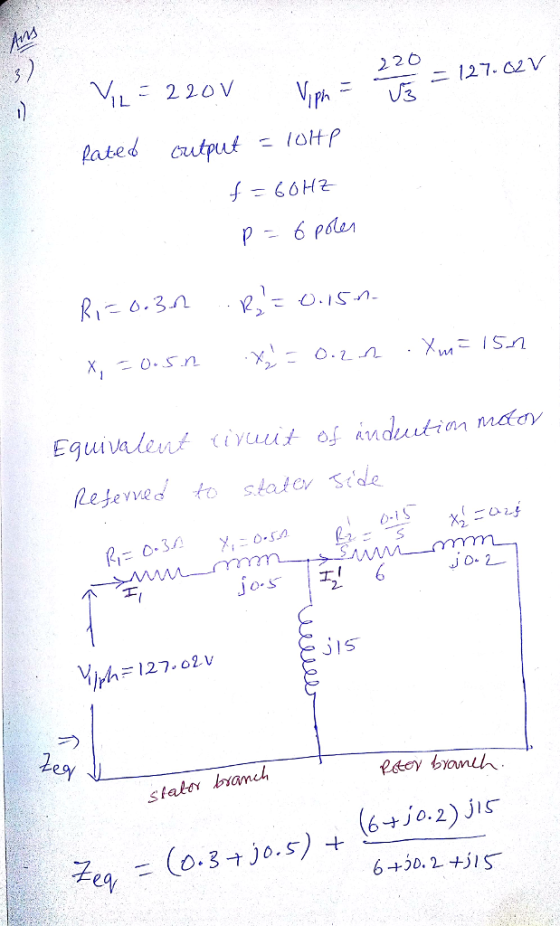

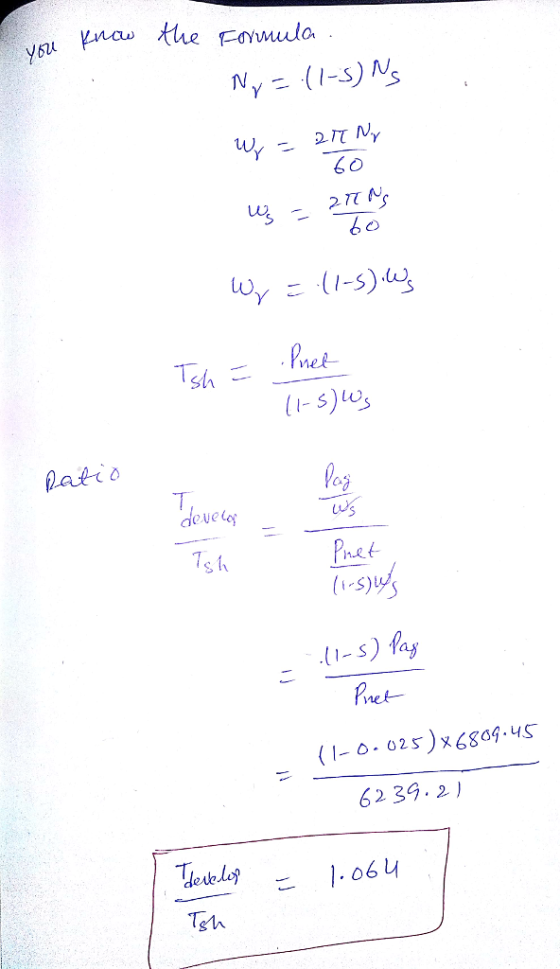

![Problem # 3: Induction Motor Analysis [30 points] The parameters of the per phase equivalent circuit of a three phase wye-connected, 220 V (line- line, rms) 10 hp, 60 Hz, six-pole induction motor are given as: Ri = 0.3 Ohm, R2-0.15 Ohm, Xi-0.5 Ohms, X2= 0.2 Ohm, Xm-15.0 The total friction, windage and core losses add up to be a constant of 400 W. For a slip of 0.025 with motor operating at rated frequency and stator voltage, calculate the followings: (1) The stator input current and input power factor [12 points) (2) The output shaft power and efficiency [12 points] (3) The ratio of the developed torque to the output shaft torque [6 points]](http://img.homeworklib.com/questions/5fac52c0-7d3c-11eb-9d05-3f8a0baf5765.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
Problem # 3: Induction Motor Analysis [30 points] The parameters of the per phase equivalent circuit...
