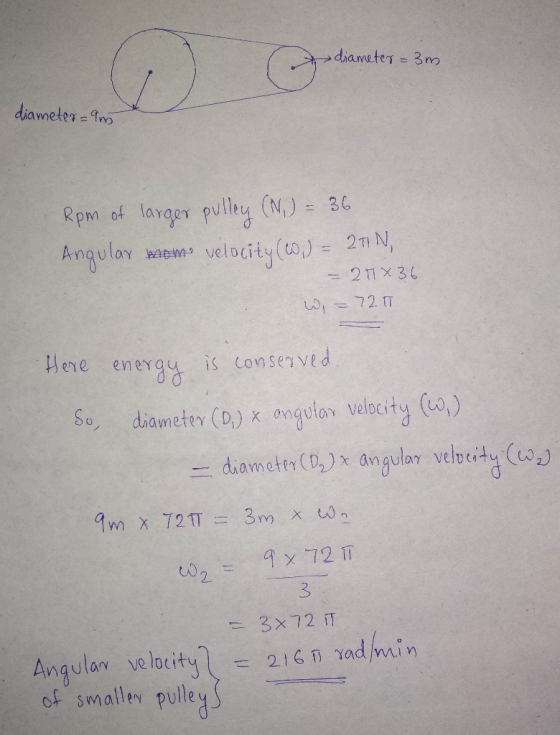

16) Two pulleys of diameter 9 m and 3 m are cónnected by a belt. The...
Motor drives a water pump through a vee belt transmission system as shown in motor pulleys have d...
motor drives a water pump through a vee belt transmission system as shown in motor pulleys have diameters D,-600 mm and Di-200 mm, centres is d-1.5 m. The friction coefficient between 1. An electric Figure 1. The pump and respectively. The distance between pulley th e belt and pulleys is 0.4. If the motor rotates at 2000 rpm in clockwise direction determine: (4 marks) (3 marks) (4 marks) a) the lap angle on pulley D2; b) the tight and slack...
Q.2 A flat belt (Polyamide A-3 belt having 10 inch width) is used to reduce speed...
Q.2 A flat belt (Polyamide A-3 belt having 10 inch width) is used to reduce speed and connects horizontal shafts on 16-ft centers with diameter of smaller pulley 16 in. The velocity ratio is 2.25:1 and angular speed of small pulley is 860 rpm. The design HP of this system is 60. Find actual coefficient of friction. Please note that belt is already designed. (6)
30 Two pulleys, one with a radius of 13 inches and the other with a radius...
30 Two pulleys, one with a radius of 13 inches and the other with a radius of 5 inches, are connected by a belt. If the larger pulley makes 3 revolutions per minute, how many revolutions per minute does the smaller pulley make? Round your answer to the nearest tenth.
Pulley A rotates clockwise at a constant angular velocity, driving a second larger Pulley B using...
Pulley A rotates clockwise at a constant angular velocity, driving a second larger Pulley B using a flexible belt moving around the two pulleys without slipping. The radius r_A for Pulley A is half of the radius r_B of Pulley B. Is the magnitude of the angular velocity of Pulley A greater than, less than, or equal to the magnitude of the angular velocity of Pulley B? Explain. Is the magnitude of the linear velocity of a point on the...
A line shaft supporting two pulleys A and B is shown in Figure (below).
QUESTION 2 A line shaft supporting two pulleys A and B is shown in Figure (below). Power is supplied to the shaft by means of a vertical belt on pulley A, which is then transmitted to pulley B carrying a horizontal belt. The ratio of belt tensions on tight and loose sides is 3:1 and the maximum tension in either belt is limited to 2.7 kN. The maximum belts tension will occur in belt on pulley A due to smaller diameter....
A countershaft carrying two V-belt pulleys is shown in the figure. Pulley A receives power from...
A countershaft carrying two V-belt pulleys is shown in the figure. Pulley A receives power from a motor through a belt with the belt tensions shown. The power is transmitted through the shaft and delivered to the belt on pulley B. Assume the belt tension on the loose side at Bis 15 percent of the tension on the tight side. For the steel countershaft shown in the figure below, find the slope of the shaft at each bearing. Use superposition...
Flat and round belt drives
A 7-in wide polyamide F-1 flat belt is used to connect a 2-in diameter pulley to drive a larger pulley with an angular velocity ratio of 0.5. The center-to-center distance is 9 ft. The angular speed of the small pulley is 2000 rev/min as it delivers 2 hp. The service is such that a service factor of Ks of 1.25 is appropriate.Find Fc, Fi, (F1)a, and F2, assuming operation at the maximum tension limit. (You must provide an answer before moving to the next part.) The value...
5) [40 pts) Tensions in a flat belt drive A 5-in wide polyamide F-1 flat belt...
5) [40 pts) Tensions in a flat belt drive A 5-in wide polyamide F-1 flat belt is used to connect a 2-in diameter pulley to drive a larger pulley with an angular velocity ratio of 0.5. The center-to-center distance is 8 ft. The angular speed of the small pulley is 1800 rev/min as it delivers 2 hp. The service is such that a service factor of Ks of 1.25 is appropriate Find F, F, (F1)a, and F2, assuming operation at...
Problem 2: (Problem 3.79 in the book) A countershaft carrying two V-belt pulleys is shown in...
Problem 2: (Problem 3.79 in the book) A countershaft carrying two V-belt pulleys is shown in the figure. Pulley A receives power from a motor through a belt with the belt tensions shown. The power is transmitted through the shaft and delivered to the belt on pulley B. Assume the belt tension on the loose side at B is 15 percent of the tension on the tight side. (a) Determine the tensions in the belt on pulley B, assuming the...
A countershaft, made of AISI 1035 CD steel, carrying two V-belt pulleys is shown in the figure. P...
A countershaft, made of AISI 1035 CD steel, carrying two V-belt pulleys is shown in the figure. Pulley A receives power from a motor through a belt with the belt tensions shown. The power is transmitted through the shaft and delivered to the belt on pulley B. Assume the belt tension on the loose side at B is 25 percent of the tension on the tight side (F2 - 0.25 F) 1) Based on the equations for yielding conditions discussed...
motor drives a water pump through a vee belt transmission system as shown in motor pulleys have diameters D,-600 mm and Di-200 mm, centres is d-1.5 m. The friction coefficient between 1. An electric Figure 1. The pump and respectively. The distance between pulley th e belt and pulleys is 0.4. If the motor rotates at 2000 rpm in clockwise direction determine: (4 marks) (3 marks) (4 marks) a) the lap angle on pulley D2; b) the tight and slack...
Q.2 A flat belt (Polyamide A-3 belt having 10 inch width) is used to reduce speed and connects horizontal shafts on 16-ft centers with diameter of smaller pulley 16 in. The velocity ratio is 2.25:1 and angular speed of small pulley is 860 rpm. The design HP of this system is 60. Find actual coefficient of friction. Please note that belt is already designed. (6)
30 Two pulleys, one with a radius of 13 inches and the other with a radius of 5 inches, are connected by a belt. If the larger pulley makes 3 revolutions per minute, how many revolutions per minute does the smaller pulley make? Round your answer to the nearest tenth.
Pulley A rotates clockwise at a constant angular velocity, driving a second larger Pulley B using a flexible belt moving around the two pulleys without slipping. The radius r_A for Pulley A is half of the radius r_B of Pulley B. Is the magnitude of the angular velocity of Pulley A greater than, less than, or equal to the magnitude of the angular velocity of Pulley B? Explain. Is the magnitude of the linear velocity of a point on the...
A countershaft carrying two V-belt pulleys is shown in the figure. Pulley A receives power from a motor through a belt with the belt tensions shown. The power is transmitted through the shaft and delivered to the belt on pulley B. Assume the belt tension on the loose side at Bis 15 percent of the tension on the tight side. For the steel countershaft shown in the figure below, find the slope of the shaft at each bearing. Use superposition...
5) [40 pts) Tensions in a flat belt drive A 5-in wide polyamide F-1 flat belt is used to connect a 2-in diameter pulley to drive a larger pulley with an angular velocity ratio of 0.5. The center-to-center distance is 8 ft. The angular speed of the small pulley is 1800 rev/min as it delivers 2 hp. The service is such that a service factor of Ks of 1.25 is appropriate Find F, F, (F1)a, and F2, assuming operation at...
Problem 2: (Problem 3.79 in the book) A countershaft carrying two V-belt pulleys is shown in the figure. Pulley A receives power from a motor through a belt with the belt tensions shown. The power is transmitted through the shaft and delivered to the belt on pulley B. Assume the belt tension on the loose side at B is 15 percent of the tension on the tight side. (a) Determine the tensions in the belt on pulley B, assuming the...
A countershaft, made of AISI 1035 CD steel, carrying two V-belt pulleys is shown in the figure. Pulley A receives power from a motor through a belt with the belt tensions shown. The power is transmitted through the shaft and delivered to the belt on pulley B. Assume the belt tension on the loose side at B is 25 percent of the tension on the tight side (F2 - 0.25 F) 1) Based on the equations for yielding conditions discussed...
