This is a 2 part problem.

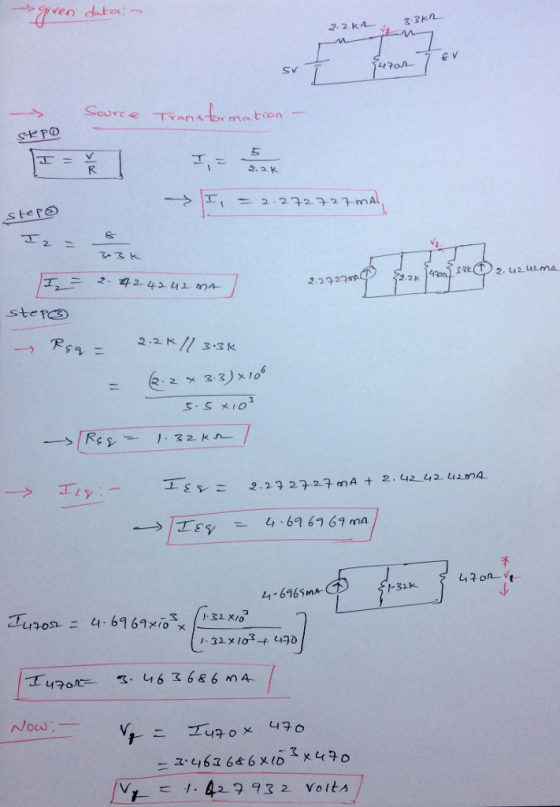

Please show both parts by the asked methods. Part 1) Calculate V1

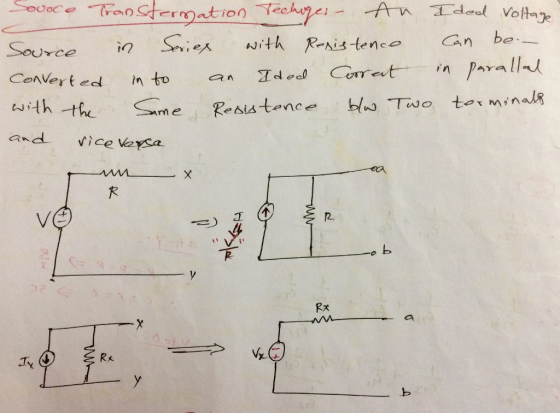

by transforming the voltage sources to current sources and
evaluating

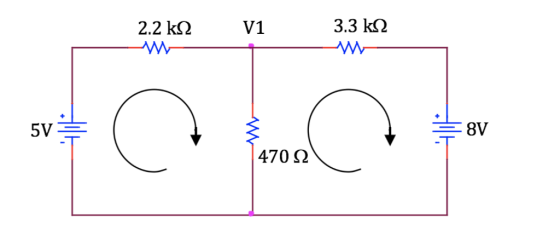

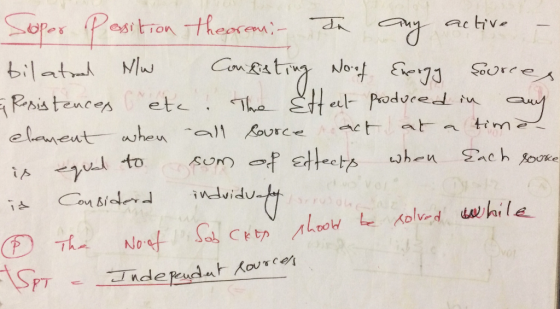

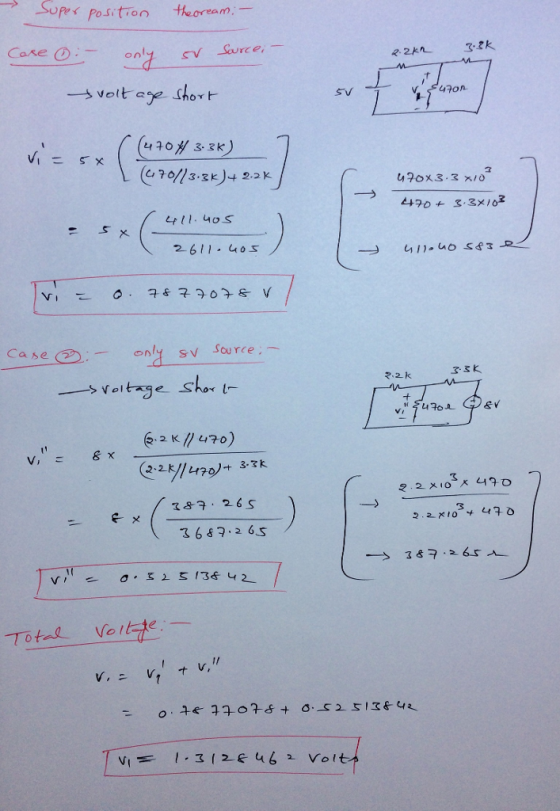

the equivalent circuit. (Use transformation method). Part 2) Use the superposition technique to calculate the value of V1 in figure 2.1.
