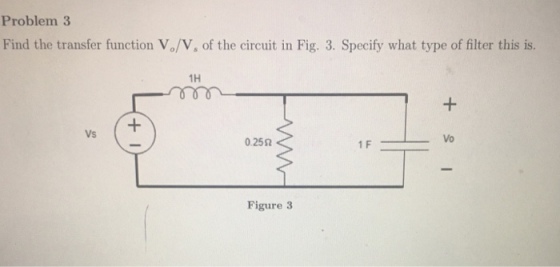

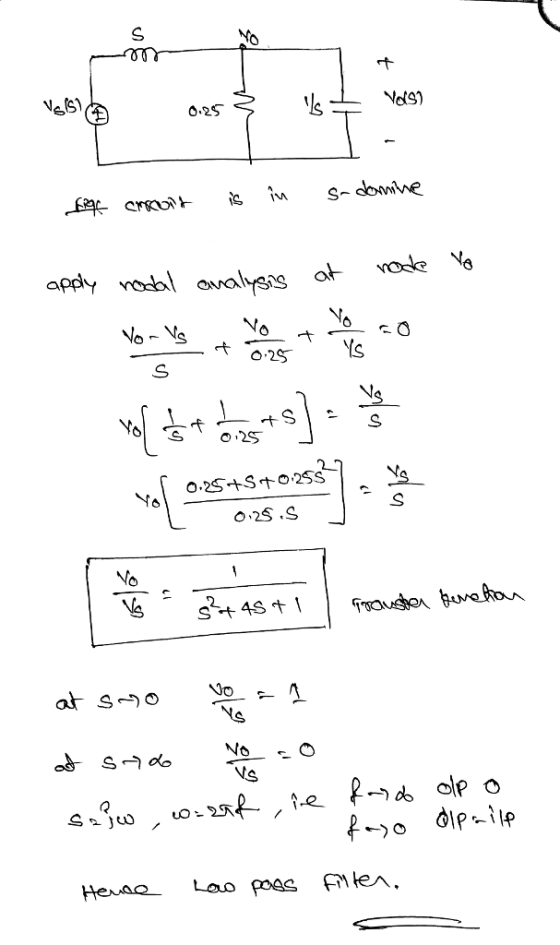

Problem 3 Find the transfer function Vo/V, of the circuit in Fig. 3. Specify what type...
Find the transfer function H(s) = Vo/Vs for the circuit in Fig.
1,2 and 3. Describe the filter characteristics.
Fig. 1. An active filter Fig. 2. Another active filter. Fig. 3. Yet another active filter. R2 R1
4.29 Relate vo in the circuit of Fig. P4.29 to vs and specify the linear range of vs. Assume Vo -0. 8 k2 Vcc = 16V 0 RL Os 3 V 4 V Figure P4.29: Circuit for Problems 4.29 through 4.31.
F1 শ। Problem 3: For the circuit in Fig. 3, find Vo/Vs in terms of a, Ri, R2, Rs and Ra. If R-R2-R)-Ra, what value of a will produce Vo/Vs |-10? RI + Va RA R3 alo R2 V's Fig. 3
Problem 3 (30 points): For the circuit in Fig. 3, v, has an RMS value of 9.0 V and a frequency of 60 Hz. Assume that R-20 Ω and that V,-0.7 V for each diode. Vs R o Figure 3: Circuit for Problem 3 (10 points) 1. Find the maximum value of Vo 2. Find the value of C to guarantee a ripple voltage of 0.25 V or less. (10 points) 3. For what fraction of the time is the...
Q1. For the filter circuit shown below, (5 marks) Vo(s) a) Find the transfer function, G(s) and the type of the filter. (4 marks) Vi(s)' b) Find the initial and final values of vo(t) if vi(t) = 2u(t). (1 marks) 10 k12 w 6 тн 0000 v;(1) 5 k92 2 mF
9.7 For the circuit shown in Fig. P9.7, determine (a) the transfer function H = V./V; and (b) the frequency w, at which H is purely real. Figure P9.7: Circuit for Problem 9.7.
please write clearly
b.) Find the transfer function, Vo(s)/V(s), for the circuit in the figure below. 10000 0000 (8)
Find the transfer function Vo(s)/V(s) for the circuit shown in the figure. 1. IH OO00 H w 0000 TH IF IF
Problem 1130 pts 1. [12 pts] For the circuit shown in Fig. 1, istance Rm when the switch is open. What type of voltage gain Vo/Vin and the input resistance Rin when the switch is close. What type of a) Find the voltage gain val vin and the input resistance Rin when the switch is open b) Find the amplifier is this? amplifier is this? tin vo R Fig. 1 [18 pts] Design a circuit that implements the following: Vo(t)...
Find Vo in the circuit in fig.286 and the power absorbed by the
depent source
Find Vo in the circuit in Fig. 2.86 and the power absorbed by the dependent source. Figure 2.86 1022 - V. + 102 2510 27
