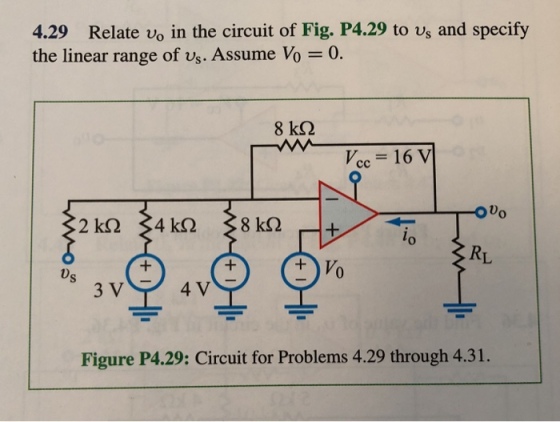

4.29 Relate vo in the circuit of Fig. P4.29 to vs and specify the linear range...

Question

Question

engineering Electrical-Engineering

Answer 1

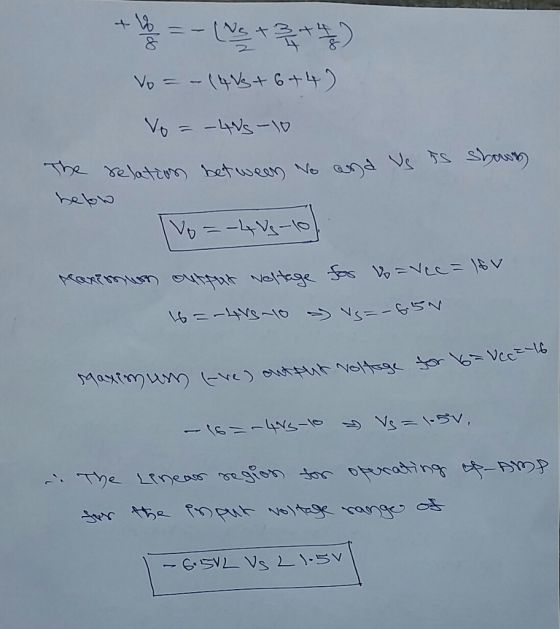

Answer #1

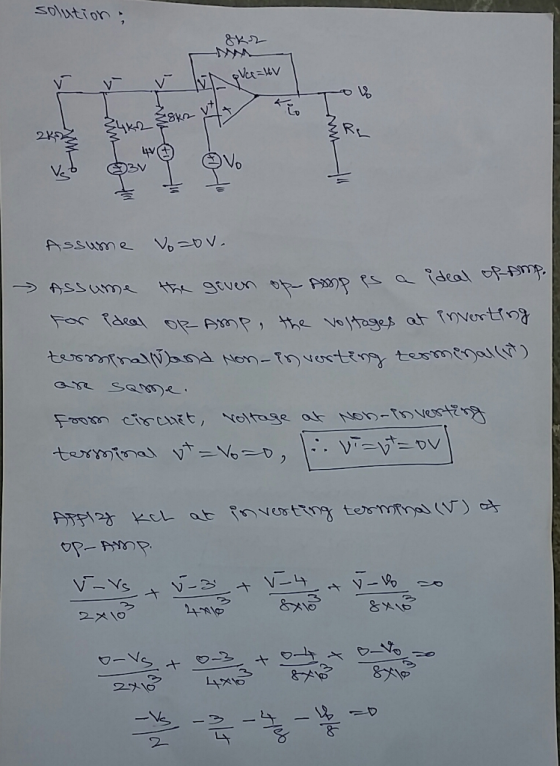

SDiutTon RE

Answer 2

Similar Homework Help Questions
