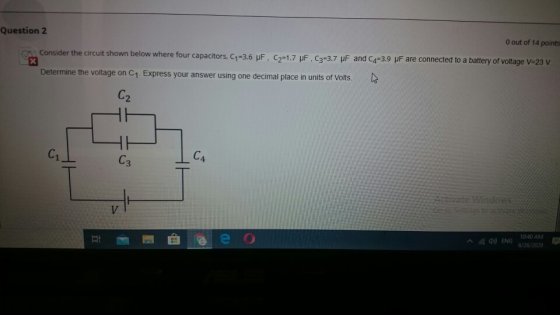

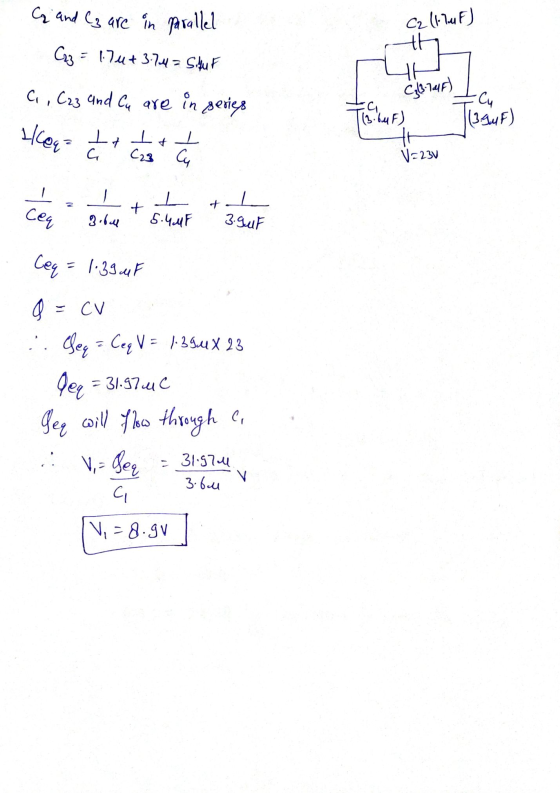

Question 2 O out of 14 points Consider the circuit shown below where four capacitors. C1=3.6...
A circuit is constructed with five capacitors and a battery as shown. The values for...
A circuit is constructed with five capacitors and a battery as
shown. The values for the capacitors are: C1 =
C5 = 3.9 μF, C2 = 1.9 μF, C3 = 7.6
μF, and C4 = 2.2 μF. The battery voltage is V = 12
V.
4)What is Q2, the charge on C2?
5)What is Q1, the charge on capacitor
C1?
C1 b HH Cz C4 Ca HH a C5
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C3? CA Hh C1 С2 C3 V. O 1.25 V 3.0 V 4.0 V 2.0 V 2.5 V
The circuit shown in the figure below contains three capacitors whose values are as follows: C1=1...
The circuit shown in the figure below contains three capacitors whose values are as follows: C1=1 UF, C2=2 pF, and C3=3 uF. The battery voltage Vo=20 V. When the circuit is connected, and the capacitors are charged, what will be charge on C3? C2, V. C3 GO 30 micro C 16.7 micro C 8.3 micro C 50 micro C 5 micro C
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be charge on C3? CA C₂ C3 V. HH 30 C 200 15 C 10 C O5C
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C1 C2 C3 V 2.5 V 4.0 V 2.0 V 3.0 V
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C3? C4 C1 C2 C3 1.25 V 3.0 V 4.0 V 2.0 V 2.5 V
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose
values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery
voltage V0=5 V. When the circuit is connected what will be charge
on C3?
C4 C1 C2 C3 G V.
A circuit is constructed with five capacitors and a battery as shown. The values for the...
A circuit is constructed with five capacitors and a battery as shown. The values for the capacitors are: C1 = C5 = 2.3 uF, C2 = 3.5 uF, C3 = 7.9 pF, and C4 = 2.6 uF. The battery voltage is V = 12 V. EC4 4) What is Q2, the charge on Cz? C Submit 5) What is Q1, the charge on capacitor Cy? uc Submit 6) What is V4, the voltage across capacitor C4? Submit
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose
values are as follows: C1=6 F, C2=2 F, and
C3=C4=4 F. The battery voltage
V0=5 V. When the circuit is connected what will be
voltage across C3?
1.25 V
3.0 V
4.0 V
2.0 V
2.5 V
C4 C1 C2 C3 G V.
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C1 C2 C3 VO 2.5 V 4.0 V 2.0 V 3.0 V O 1.25 V
A circuit is constructed with five capacitors and a battery as
shown. The values for the capacitors are: C1 =
C5 = 3.9 μF, C2 = 1.9 μF, C3 = 7.6
μF, and C4 = 2.2 μF. The battery voltage is V = 12
V.
4)What is Q2, the charge on C2?
5)What is Q1, the charge on capacitor
C1?
C1 b HH Cz C4 Ca HH a C5
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C3? CA Hh C1 С2 C3 V. O 1.25 V 3.0 V 4.0 V 2.0 V 2.5 V
The circuit shown in the figure below contains three capacitors whose values are as follows: C1=1 UF, C2=2 pF, and C3=3 uF. The battery voltage Vo=20 V. When the circuit is connected, and the capacitors are charged, what will be charge on C3? C2, V. C3 GO 30 micro C 16.7 micro C 8.3 micro C 50 micro C 5 micro C
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be charge on C3? CA C₂ C3 V. HH 30 C 200 15 C 10 C O5C
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C1 C2 C3 V 2.5 V 4.0 V 2.0 V 3.0 V
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C3? C4 C1 C2 C3 1.25 V 3.0 V 4.0 V 2.0 V 2.5 V
The circuit shown in the figure contains four capacitors whose
values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery
voltage V0=5 V. When the circuit is connected what will be charge
on C3?
C4 C1 C2 C3 G V.
A circuit is constructed with five capacitors and a battery as shown. The values for the capacitors are: C1 = C5 = 2.3 uF, C2 = 3.5 uF, C3 = 7.9 pF, and C4 = 2.6 uF. The battery voltage is V = 12 V. EC4 4) What is Q2, the charge on Cz? C Submit 5) What is Q1, the charge on capacitor Cy? uc Submit 6) What is V4, the voltage across capacitor C4? Submit
The circuit shown in the figure contains four capacitors whose
values are as follows: C1=6 F, C2=2 F, and
C3=C4=4 F. The battery voltage
V0=5 V. When the circuit is connected what will be
voltage across C3?
1.25 V
3.0 V
4.0 V
2.0 V
2.5 V
C4 C1 C2 C3 G V.
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C1 C2 C3 VO 2.5 V 4.0 V 2.0 V 3.0 V O 1.25 V
