Question A circuit is constructed with five capacitors and a battery as shown. The values for the capacitors are: C1 = C5 = 3.9 μF, C2 = 1.9 μF, C3 = 7.6 μF, and C4 = 2.2 μF. The battery voltage is V = 12 V.

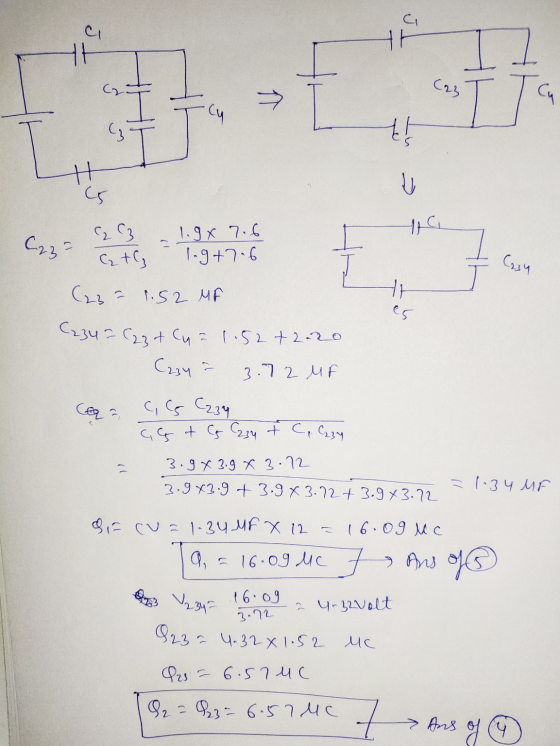

4)What is Q2, the charge on C2?

5)What is Q1, the charge on capacitor C1?
