the set of I=5A passed though the wire with a diameter
of 2 mm.

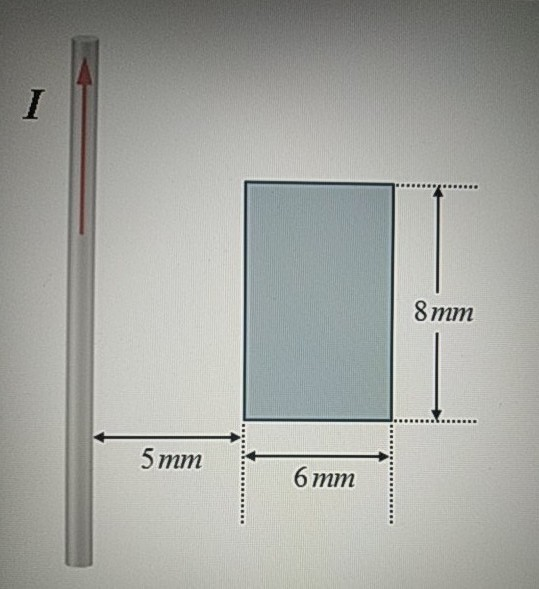

how many nWb of magnetic flux on the rectangular flat surface to
the right of the figure ? (nWb: nanoweber)
A)0,555
B)0,444
C)0,333
D)0,222
E)0

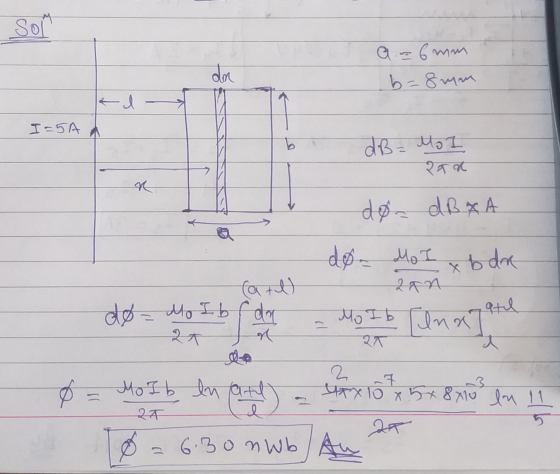

Homework Answers
