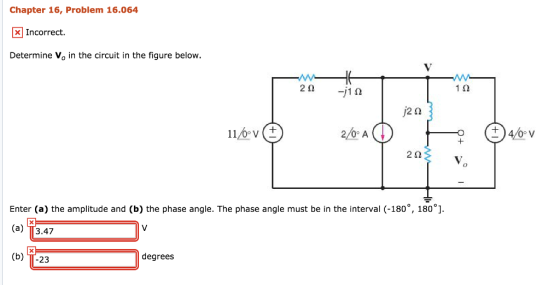

![Chapter 16, Problem 16.064 xIncorrect. Determine Vo in the circuit in the figure below. 2 1 2 j2? 2/0 A 2? Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180°, 180°] (a) T3.47 (b) TT-23 degrees](http://img.homeworklib.com/questions/13f60710-c88f-11ea-80c0-77740d2f62cf.png?x-oss-process=image/resize,w_560)

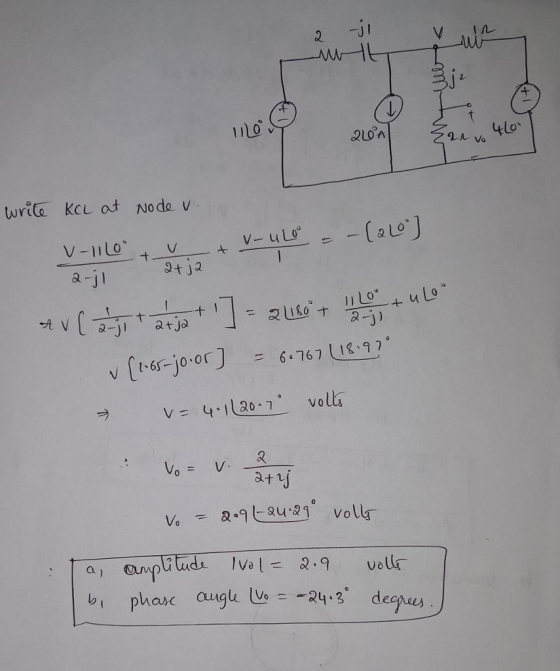

Homework Answers
Add Answer to:
Chapter 16, Problem 16.064 xIncorrect. Determine Vo in the circuit in the figure below. 2 1...
Chapter 8, Problem 8.133 Use Thévenin's theorem to find Vo in the network in the figure...
Chapter 8, Problem 8.133 Use Thévenin's theorem to find Vo in the network in the figure below. Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180, 180°] degrees Click if you would like to Show Work for this question: Open Show Work
Chapter 16, Problem 16.025 Calculate vo(t) in the circuit shown in the figure below ifh(t) is...
Chapter 16, Problem 16.025 Calculate vo(t) in the circuit shown in the figure below ifh(t) is 200 cos(105t + 60°) mA, i2(t) is 100 sin( 105t + 90°) mA, and vs(t) = 10 sin(105t) V vcl!) 250 nF 36 Ohnvo() (a) Find the amplitude of vo(t) (b) Find the phase of vo(t) in degrees degrees Chapter 16, Problem 16.011 (Circuit Solution) Find Z in the network in the figure below 2? 1? 2? 2?
Chapter 8, Problem 8.008 (Circuit Solution) Find the frequency-domain impedance, Z, as shown in the figure...
Chapter 8, Problem 8.008 (Circuit Solution) Find the frequency-domain impedance, Z, as shown in the figure below. z 7Ω j3Ω Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180°, 180°). (a) 2 (b) degrees Click if you would like to Show Work for this question: Open Show Work
Please answer this electrical circuits question correctly Chapter 8, Problem 8.099 Use mesh analysis to find...
Please answer this electrical circuits question
correctly
Chapter 8, Problem 8.099 Use mesh analysis to find Vo in the circuit shown in the figure below 3Ω 20 -j30 1 2Ω Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180 1801 degrees LINK TO TEXT Bv accessing this Question Assistance, you will learn while you earn points based on the Point Potential Policy set by your to search
Find the voltage across the inductor in the circuit shown in the figure below using nodal...
Find the voltage across the inductor in the circuit shown in the figure below using nodal analysis. V 12 V2 HE 13/30 v 603 jo 21, Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180°, 180°). (a) (b) degrees
Use Thévenin's theorem to find V, in the network in the figure below. 212 3/0° A...
Use Thévenin's theorem to find V, in the network in the figure below. 212 3/0° A 320 370A -110 4/A ja 10 v Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180°, 180°]. (b) degrees
Chapter 8, Problem 8.097 (Circuit Solution) Find Vo in the network in the figure below. 12,60...
Chapter 8, Problem 8.097 (Circuit Solution) Find Vo in the network in the figure below. 12,60 V (+ 2Ω 27 Ω 166 v 0° A (a) Find the real part of Vo (b) Find the imaginary part of Vo
Chapter 16, Problem 16.049 (Circuit Solution) Incorrect Find the frequency-domain voltage Vo shown in the figure...
Chapter 16, Problem 16.049 (Circuit Solution) Incorrect Find the frequency-domain voltage Vo shown in the figure below 15Ω 15Ω 5/30° A (a) Find the real part of the voltage. (b) Find the imaginary part of the voltage. (a) TT45.67 (b) T-18.12
Chapter 16, Problem 16.050 Find Vo in the network in the figure below 2Ω 40Ω (a)...
Chapter 16, Problem 16.050 Find Vo in the network in the figure below 2Ω 40Ω (a) Find the real part of vo (b) Find the imaginary part of Vo
Chapter 8, Problem 8.073 Use nodal analysis to find Vo in the circuit in the figure...
Chapter 8, Problem 8.073 Use nodal analysis to find Vo in the circuit in the figure below. 6/00 V 1 0 10 0 1Ω 2/0° A (a) Find the real part of Vo. (b) Find the imaginary part of V Vi Click if you would like to Show work for this question: Open-Show-work
Chapter 8, Problem 8.133 Use Thévenin's theorem to find Vo in the network in the figure below. Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180, 180°] degrees Click if you would like to Show Work for this question: Open Show Work
Chapter 16, Problem 16.025 Calculate vo(t) in the circuit shown in the figure below ifh(t) is 200 cos(105t + 60°) mA, i2(t) is 100 sin( 105t + 90°) mA, and vs(t) = 10 sin(105t) V vcl!) 250 nF 36 Ohnvo() (a) Find the amplitude of vo(t) (b) Find the phase of vo(t) in degrees degrees Chapter 16, Problem 16.011 (Circuit Solution) Find Z in the network in the figure below 2? 1? 2? 2?
Chapter 8, Problem 8.008 (Circuit Solution) Find the frequency-domain impedance, Z, as shown in the figure below. z 7Ω j3Ω Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180°, 180°). (a) 2 (b) degrees Click if you would like to Show Work for this question: Open Show Work
Please answer this electrical circuits question
correctly
Chapter 8, Problem 8.099 Use mesh analysis to find Vo in the circuit shown in the figure below 3Ω 20 -j30 1 2Ω Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180 1801 degrees LINK TO TEXT Bv accessing this Question Assistance, you will learn while you earn points based on the Point Potential Policy set by your to search
Find the voltage across the inductor in the circuit shown in the figure below using nodal analysis. V 12 V2 HE 13/30 v 603 jo 21, Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180°, 180°). (a) (b) degrees
Use Thévenin's theorem to find V, in the network in the figure below. 212 3/0° A 320 370A -110 4/A ja 10 v Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180°, 180°]. (b) degrees
Chapter 8, Problem 8.097 (Circuit Solution) Find Vo in the network in the figure below. 12,60 V (+ 2Ω 27 Ω 166 v 0° A (a) Find the real part of Vo (b) Find the imaginary part of Vo
Chapter 16, Problem 16.049 (Circuit Solution) Incorrect Find the frequency-domain voltage Vo shown in the figure below 15Ω 15Ω 5/30° A (a) Find the real part of the voltage. (b) Find the imaginary part of the voltage. (a) TT45.67 (b) T-18.12
Chapter 16, Problem 16.050 Find Vo in the network in the figure below 2Ω 40Ω (a) Find the real part of vo (b) Find the imaginary part of Vo
Chapter 8, Problem 8.073 Use nodal analysis to find Vo in the circuit in the figure below. 6/00 V 1 0 10 0 1Ω 2/0° A (a) Find the real part of Vo. (b) Find the imaginary part of V Vi Click if you would like to Show work for this question: Open-Show-work
