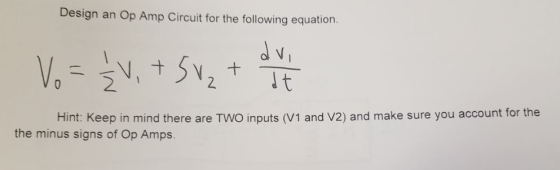

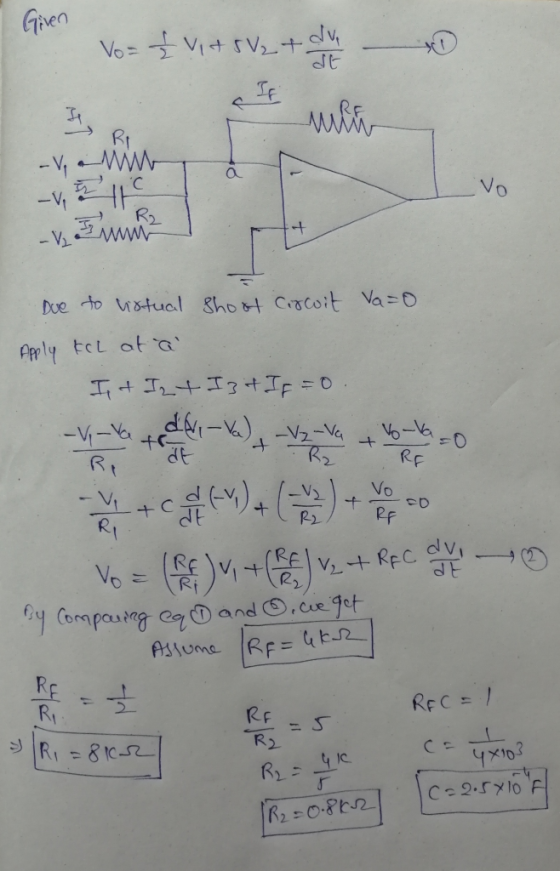

Design an Op Amp Circuit for the following equation. Hint: Keep in mind there are TWO...
3. Design an op amp circuit using one op amp that will take two inputs, Vi...
3. Design an op amp circuit using one op amp that will take two inputs, Vi and V2, and produce an output Vo--4V1 - 2V2.
out V1 (B) Design an op-amp circuit to process two signals V1 and V2 such that...
out V1 (B) Design an op-amp circuit to process two signals V1 and V2 such that Vout(t)=V1(t)+2dV2(t)/dt.
sing one op-amp (or op-amps) und kilo-Ohm resistors, design a circuit to om the operation with...
sing one op-amp (or op-amps) und kilo-Ohm resistors, design a circuit to om the operation with two inputs and one output). Assume ideal op-amps (an 12 volt power supplies). vo - 5(v12 - Vil)
Problem 7 (CLO 3, 4, 11 - Ideal Op-Amps, Design): We will now design an Op-Amp...
Problem 7 (CLO 3, 4, 11 - Ideal Op-Amps, Design): We will now design an Op-Amp circuit to perform the function where v1 - input voltage 1, input voltage 2, = input voltage 3, Vo = output voltage. It may be helpful to consult your recitation 6 (week 7) results as well as Table 4-3 for this problem. 7.a: Select an Op-Amp configuration for your design. Sketch the Op-Amp configuration with symbolic resistors (Rf, Ri, R2, etc) indicated. Do not...
For the Op Amp circuit shown, if the inputs v1 = 5 volts, and v2 = 3 volts
For the Op Amp circuit shown, if the inputs v1 = 5 volts, and v2 = 3 volts, and resistances R1 = R2 =10 KΩ and RF = 5kΩ , then the output out will be _______ volts. This circuit is called a _______ OP Amp circuit. The name indicates the application of the circuit. The Op Amp provides _______ output impedance.
7. Design an Op Amp circuit that solves the following first order differential equation for v(t):...
7. Design an Op Amp circuit that solves the following first order differential equation for v(t): dv dt 8. Design an Op Amp circuit that solves the following second order differential equations for y(t): 습+10 y(t) = cos(21t) · dt?
Please solve this ASAP. You are to design an op-amp based amplifier that generates the following transfer function Vref Task: Design an op-amp based amplifier that obeys the above function. Make sure...
Please solve this ASAP.
You are to design an op-amp based amplifier that generates the following transfer function Vref Task: Design an op-amp based amplifier that obeys the above function. Make sure you use reasonable values for components. The value Vref must be variable (i.e. adjustable via changing the value of resistance(s). Simulate the circuit using Multisim 1. 2,
You are to design an op-amp based amplifier that generates the following transfer function Vref Task: Design an op-amp based amplifier...
Design and set up a circuit using basic op-amp configuration that will implement a mathematical expression...
Design and set up a circuit using basic op-amp configuration that will implement a mathematical expression Y = 3A-2B-C (where A, B, and C are the inputs and Y is the out of the circuit). Then verify the design for A = 3V, B = 1V, and C = -2V. (Hint: Generate these input voltages from a 5V DC source). Use resistor values of the order of 100K ohms for the feedback and input resistors in the op-amp circuit. Note:...
4. Using resistor values in the 1 kOto 100 ㏀ range, design an op amp circuit...
4. Using resistor values in the 1 kOto 100 ㏀ range, design an op amp circuit that has the following output voltage vout, where va, Vb, Ve and va are input voltages. Use as many op amps as you like
Design a two-stage Op-Amp circuit as shown below to make the output voltage is vo=C1v1+C2v2, where...
Design a two-stage Op-Amp circuit as shown below to make the
output voltage is
vo=C1v1+C2v2,
where C1 = 6 and C2 = 11.5, given that
Rf1=84 k?, and Rf2=21.5 k?.
a. Find the values of R1 and R2.
R1: _______ (k?); R2: _______ (k?)
b. Find the value of RS2:
_______(k?)
c. If v1=2.4 V and v2=3 V, find the output
voltage vo:
_______(V)
Rf Rf R2 02 Pi P2 Stage 1 Stage 2
3. Design an op amp circuit using one op amp that will take two inputs, Vi and V2, and produce an output Vo--4V1 - 2V2.
out V1 (B) Design an op-amp circuit to process two signals V1 and V2 such that Vout(t)=V1(t)+2dV2(t)/dt.
sing one op-amp (or op-amps) und kilo-Ohm resistors, design a circuit to om the operation with two inputs and one output). Assume ideal op-amps (an 12 volt power supplies). vo - 5(v12 - Vil)
Problem 7 (CLO 3, 4, 11 - Ideal Op-Amps, Design): We will now design an Op-Amp circuit to perform the function where v1 - input voltage 1, input voltage 2, = input voltage 3, Vo = output voltage. It may be helpful to consult your recitation 6 (week 7) results as well as Table 4-3 for this problem. 7.a: Select an Op-Amp configuration for your design. Sketch the Op-Amp configuration with symbolic resistors (Rf, Ri, R2, etc) indicated. Do not...
7. Design an Op Amp circuit that solves the following first order differential equation for v(t): dv dt 8. Design an Op Amp circuit that solves the following second order differential equations for y(t): 습+10 y(t) = cos(21t) · dt?
Please solve this ASAP.
You are to design an op-amp based amplifier that generates the following transfer function Vref Task: Design an op-amp based amplifier that obeys the above function. Make sure you use reasonable values for components. The value Vref must be variable (i.e. adjustable via changing the value of resistance(s). Simulate the circuit using Multisim 1. 2,
You are to design an op-amp based amplifier that generates the following transfer function Vref Task: Design an op-amp based amplifier...
4. Using resistor values in the 1 kOto 100 ㏀ range, design an op amp circuit that has the following output voltage vout, where va, Vb, Ve and va are input voltages. Use as many op amps as you like
Design a two-stage Op-Amp circuit as shown below to make the
output voltage is
vo=C1v1+C2v2,
where C1 = 6 and C2 = 11.5, given that
Rf1=84 k?, and Rf2=21.5 k?.
a. Find the values of R1 and R2.
R1: _______ (k?); R2: _______ (k?)
b. Find the value of RS2:
_______(k?)
c. If v1=2.4 V and v2=3 V, find the output
voltage vo:
_______(V)
Rf Rf R2 02 Pi P2 Stage 1 Stage 2
