3. Design an op amp circuit using one op amp that will take two inputs, Vi...

Question

Question

3. Design an op amp circuit using one op amp that will take two inputs, Vi and V2, and produce an output Vo--4V1 - 2V2.

engineering Electrical-Engineering

Answer 1

Answer #1

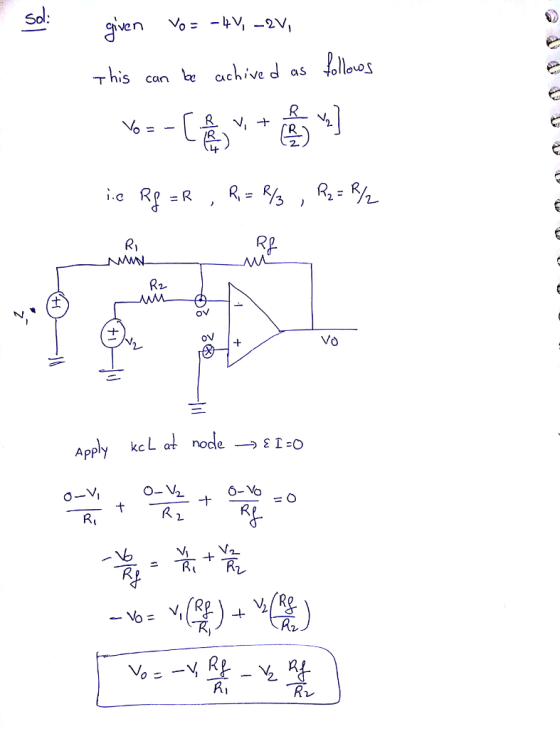

S0 his can e achived as hnou S 나 1.C ov 6-Vo R. 尺 2

Answer 2
