Homework Answers

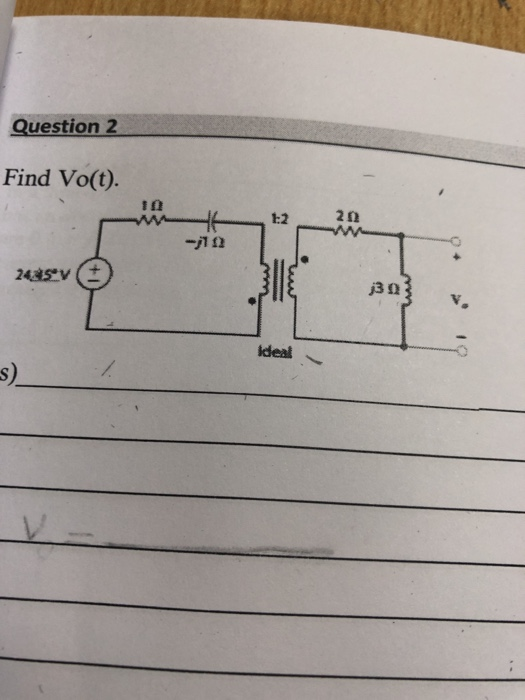

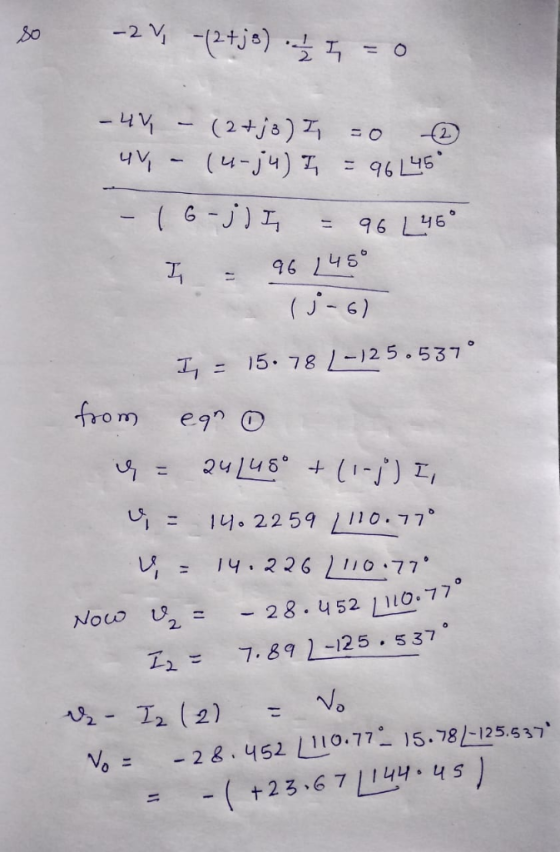

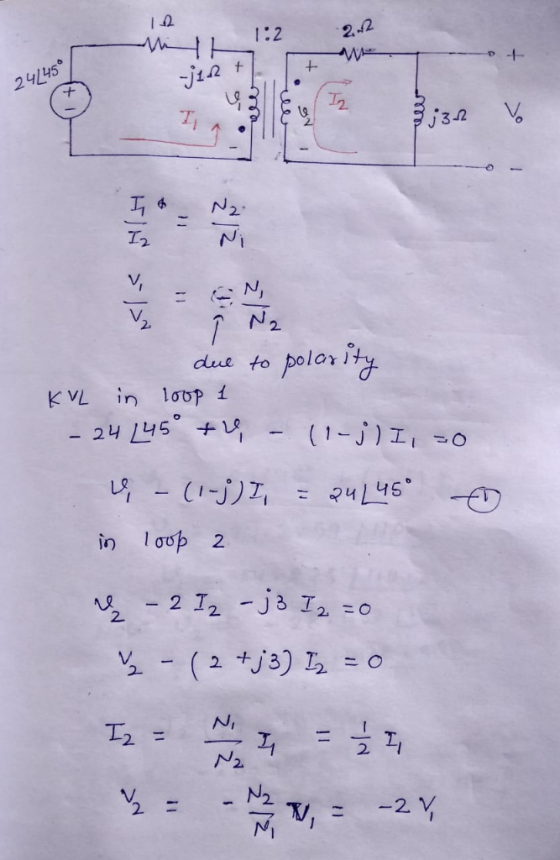

Negative sign of the voltage is because of polarity of transfarmer .
Find the Transfer Function Vo(s)/(s) for this circuit, where s-jo. 4. 10Ω 2Ω vo(t) t 0.1...
Find the Transfer Function Vo(s)/(s) for this circuit, where s-jo. 4. 10Ω 2Ω vo(t) t 0.1 F 2 H
please help Problem 2 (10 pts.) following circuit, please find the transfer function G(s)-Vo(sV(s). + Vo(t)-...
please help
Problem 2 (10 pts.) following circuit, please find the transfer function G(s)-Vo(sV(s). + Vo(t)- 2 H 3 H 2
Question 5 (30 points) RO x + vo R1 = 279 ohms Find the voltage vo(t)...
Question 5 (30 points) RO x + vo R1 = 279 ohms Find the voltage vo(t) in the s-domain Vo(s). V1 = 169 volts R2 = 569 ohms C1 = 344 uF C2 = 587 uF
B) Find Vo (s)and vo (t)in the following network:- k = 25e-75t u (t) 200 Ohms...
B) Find Vo (s)and vo (t)in the following network:- k = 25e-75t u (t) 200 Ohms Vo 4 micro F Vs
If Ug = 5,000tu(t) V, find Vo. Express your answer in terms of s The op...
If Ug = 5,000tu(t) V, find Vo. Express your answer in terms of s The op amp in the circuit shown in (Figure 1) is ideal There is no energy stored in the circuit at the time it is energized. Suppose that V 11 V vec 2.4(s + 400) s(s +76923) Submit Previous Answers Request Answer X Incorrect Try Again; 27 attempts remaining Figure 1 of 1 Part B 625 nF If Ug 5, 000tu(t) V, choose the correct expression...
Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a...
Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a function of vi and vs. B) Next assume the Op-Amp is ideal, except its low frequency gain is Ao= 100 V/V. Now find vo as a function of vi and v2. C) The Op-Amp has a terminal frequency of fi 10° Hz, find the -3 dB (corner) frequency of the output signal w2 10K
Find Vo(t) by finding Vo(s) and taking the LaPlace Transform of this simple circuit. Show work....
Find Vo(t) by finding Vo(s) and taking the LaPlace Transform of
this simple circuit. Show work. Aelement values are in the
image.
Vo 4u(t)
Find V0 and V1.Assume the Op-amps are ideal Question-4. (20 points) Find Vo and Vi. Assume...
Find V0 and V1.Assume the Op-amps are ideal
Question-4. (20 points) Find Vo and Vi. Assume the Op-amps are ideal. 40Ω 20Ω 1002 o v 10 V 10Ω 10Ω
help!! Incorrect For the network shown in the figure, find vo(t), t> o, using mesh equations....
help!!
Incorrect For the network shown in the figure, find vo(t), t> o, using mesh equations. 5 H 1Ω 2 2u(t) A 7 Find vo(t) at t-1 s. 2.07 the tolerance is +/-2% Click if you would like to Show Work for this question: Open Show Work SHOW HINT
S2* Find the differential equation for Vo in the opamp circu is ideal with infinite gain....
S2* Find the differential equation for Vo in the opamp circu is ideal with infinite gain. it below. Assume the opamp Vs(t) R1 Vol(t)
Find the Transfer Function Vo(s)/(s) for this circuit, where s-jo. 4. 10Ω 2Ω vo(t) t 0.1 F 2 H
please help
Problem 2 (10 pts.) following circuit, please find the transfer function G(s)-Vo(sV(s). + Vo(t)- 2 H 3 H 2
Question 5 (30 points) RO x + vo R1 = 279 ohms Find the voltage vo(t) in the s-domain Vo(s). V1 = 169 volts R2 = 569 ohms C1 = 344 uF C2 = 587 uF
B) Find Vo (s)and vo (t)in the following network:- k = 25e-75t u (t) 200 Ohms Vo 4 micro F Vs
If Ug = 5,000tu(t) V, find Vo. Express your answer in terms of s The op amp in the circuit shown in (Figure 1) is ideal There is no energy stored in the circuit at the time it is energized. Suppose that V 11 V vec 2.4(s + 400) s(s +76923) Submit Previous Answers Request Answer X Incorrect Try Again; 27 attempts remaining Figure 1 of 1 Part B 625 nF If Ug 5, 000tu(t) V, choose the correct expression...
Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a function of vi and vs. B) Next assume the Op-Amp is ideal, except its low frequency gain is Ao= 100 V/V. Now find vo as a function of vi and v2. C) The Op-Amp has a terminal frequency of fi 10° Hz, find the -3 dB (corner) frequency of the output signal w2 10K
Find Vo(t) by finding Vo(s) and taking the LaPlace Transform of
this simple circuit. Show work. Aelement values are in the
image.
Vo 4u(t)
Find V0 and V1.Assume the Op-amps are ideal
Question-4. (20 points) Find Vo and Vi. Assume the Op-amps are ideal. 40Ω 20Ω 1002 o v 10 V 10Ω 10Ω
help!!
Incorrect For the network shown in the figure, find vo(t), t> o, using mesh equations. 5 H 1Ω 2 2u(t) A 7 Find vo(t) at t-1 s. 2.07 the tolerance is +/-2% Click if you would like to Show Work for this question: Open Show Work SHOW HINT
S2* Find the differential equation for Vo in the opamp circu is ideal with infinite gain. it below. Assume the opamp Vs(t) R1 Vol(t)
