Fermi Level in Semiconductors, all parts please

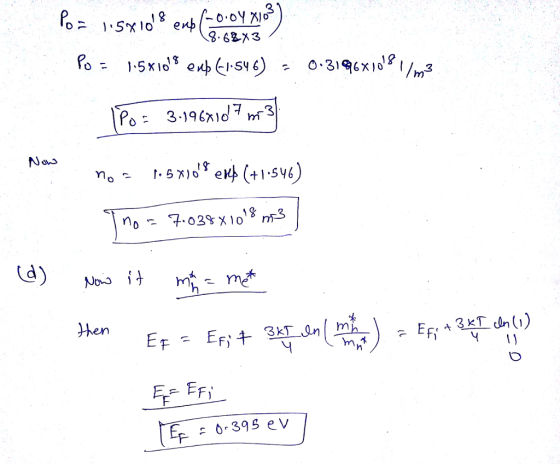

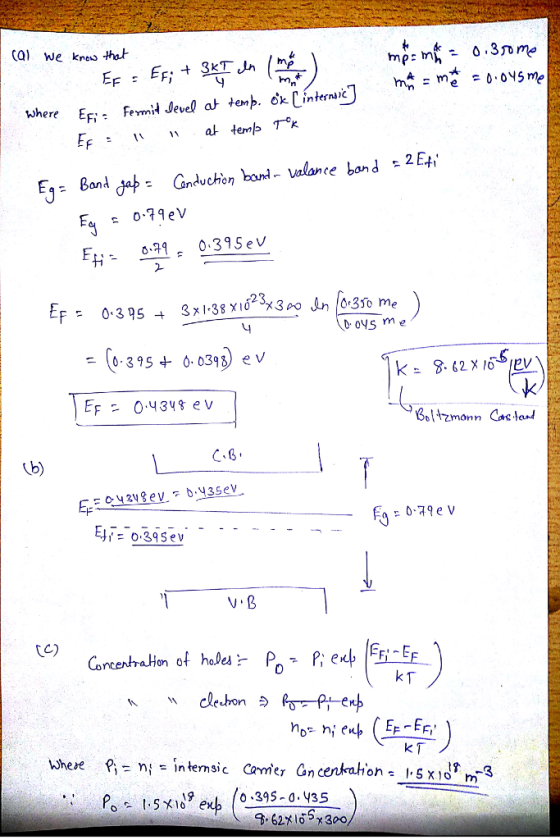

Fermi Level in Semiconductors, all parts please Pure GaSb at 300 K temperature has m-0.045,0.350e, E0.79...
Consider a sample of silicon at 300 K in which the Fermi level is found 0.22 eV above the top of the valence band. a) What type of semiconductor is this sample? b) Sketch the band diagram, labelling Ev, E., E. EF, E. – EF, EF - Ec, and Ea or Ed as applicable. c) What is the carrier concentration of electrons and holes in this sample at thermal equilibrium?
Consider a GaAs semiconductor at room temperature (T = 300 K). The bandgap energy is Eg = 1.42 eV. The electron-to-hole effective mass ratio is me*/mh*=0.134. It is given that the separation between the Fermi level (located in the bandgap) and the top of the valence band is 4 times the separation between the bottom of the conduction band and the Fermi level. Find the ratio of the electron concentration in the conduction band to the hole concentration in the...
Silicon at at T-300 K contains acceptor atoms at a concentration of Na-5x10A15 cmA-3. Donor atoms are added forming an n type compensated(counter doped) semiconductor such that the fermi level is 0.215 eV below the conduction band edge 4. a. What concentration of donor atoms were added. b. What were the concentration of holes and electrons before the silicon was counterdoped c. What are the electron and hole concentrations after the silicon was counter doped.
Silicon at at T-300 K...
Silicon at at T-300 K contains acceptor atoms at a concentration of Na-5x10A15 cmA-3. Donor atoms are added forming an n type compensated(counter doped) semiconductor such that the fermi level is 0.215 eV below the conduction band edge 4. a. What concentration of donor atoms were added. b. What were the concentration of holes and electrons before the silicon was counterdoped c. What are the electron and hole concentrations after the silicon was counter doped.
Silicon at at T-300 K...
Please explain part b in details thx!
Question 2 At 300 K, the bandgap of GaP is 2.26 eV and the effective density of states at the conduction and valence band edge are 1.8 x 1019 cm23 and 1.9 x 1019 cm3, respectively. (a) Calculate the intrinsic concentration of GaP at 300K (7 marks) Calculate the GaP effective mass of holes at 300K. (b) (8 marks) (c The GaP sample is now doped with donor concentration of 1021 cm3 with...
(0)If in GaAs, the Fermi level is 0.30 eV below the conduction band. [10] calculate the thermal equilibrium electron and hole concentration at room temperature. Bandgap of CaAs is 1.42 eV, the effective density of states of the conduction band at 300K is 4.7x10 cm and the effective density of states of the valence band is 7x10¹ cm³.L213(11)Identify and illustrate with required equations and diagrams, how energy and momentum are conserved in band to band transitions in indirect band gap...
1. Sketch the Fermi-dirac probability function at T= 0 K and T=300 K for function of E above and below EF. 2. Find (EP) 3. Describe Fermi Energy. What are the significances of Fermi energy level in semiconductor device physics? 4. Sktech Density of State Diagram, Fermi-dirac probability function diagram vs. E from there sketch n(E)vs.E and p(E)vs. E for N-type and P-type semiconductors, respectively. 5. A semiconductor has the following parameters: a. Eg = 1.12 eV, x = 4.05...
In a P-type semiconductor, the Fermi level lies 0.4 ev above the valence band at 300 0K. I)etermine the new position of the Fermi level (a) at 450 OK and (b) if the concentration of acceptor atoms is multiplied by a factor of 2. Assume kT = 0.03 eV.
1. Sketch the Fermi-dirac probability function at T=0 K and T=300 K for function of E above and below EF. 2. Find f(EP). 3. Describe Fermi Energy. What are the significances of Fermi energy level in semiconductor device physics? 4. Sktech Density of State Diagram, Fermi-dirac probability function diagram vs. E from there sketch n(E)vs.E and p(E)vs. E for N-type and P-type semiconductors, respectively. 5. A semiconductor has the following parameters: a. Eg = 1.12 eV, x = 4.05 eV,...
i. l e blank(s). A gap suggest two-word in your answer Drift current in semiconductors is due to electric [20] tield. Carriers in the band are referred to as statistics is applied to electrons in The semiconductors. The position and principle states that we cannot simultaneously determine the of electrons. Vy is a . while w is a number and Current in the conduction is due to the flow of Extrinsic semiconductors are vii. viii. The wave function in Schrodinger's...
