A giant yo-yo has a mass of 2 kg and a moment of inertia of 1.28...

A giant yo-yo has a mass of 2 kg and a moment of inertia of 1.28 kgm2. The central spool has a radius of 0.4 m. As it falls, the string unwinds from the central spool without slipping. If the yo-yo is released from rest, how fast will it be moving when it has fallen a distance of 1.5 meters?
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

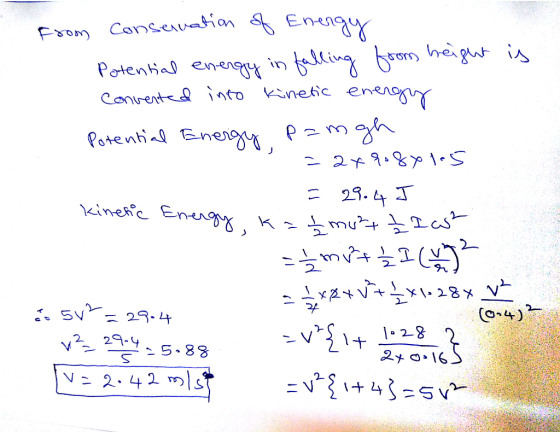

Answer #1

0 0
Add a comment
