1. Find transfer function H(s)=Vo/Is if the resistors are 5 Ohms instead of 1 Ohm. 1...

Question

Question

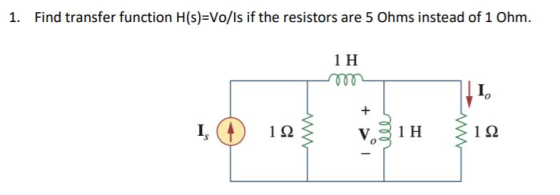

1. Find transfer function H(s)=Vo/Is if the resistors are 5 Ohms instead of 1 Ohm. 1 Η 1, I (1) 1Ω3 v31 Η διΩ

engineering Electrical-Engineering

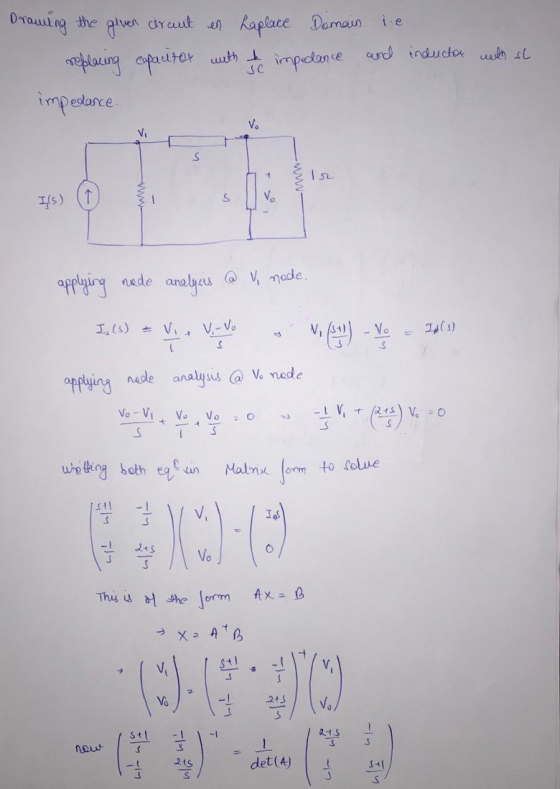

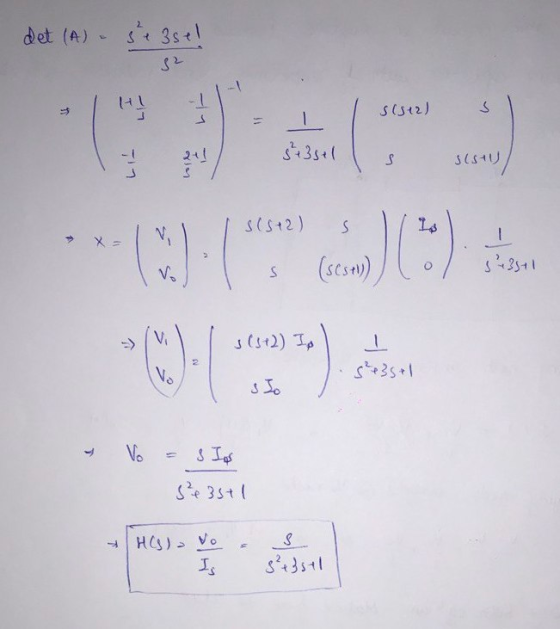

Answer 1

Answer #1

Feel free to ask doubts in the comment section

Add a comment
