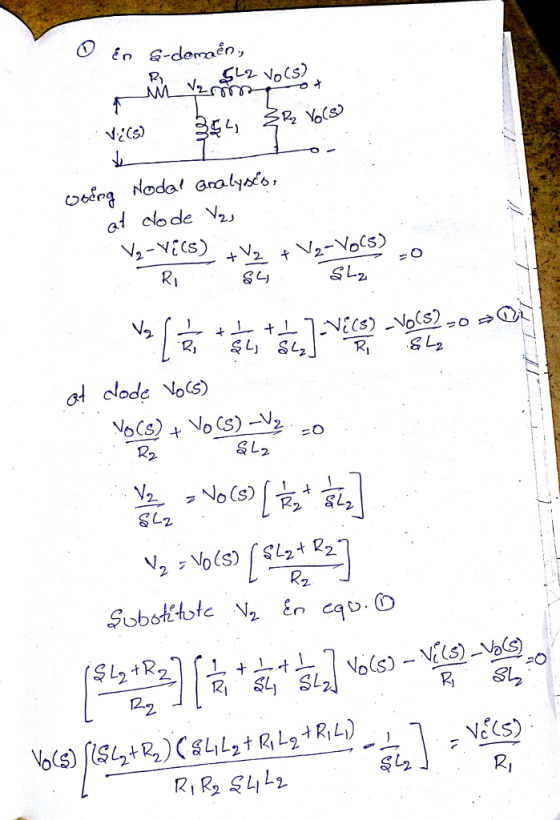

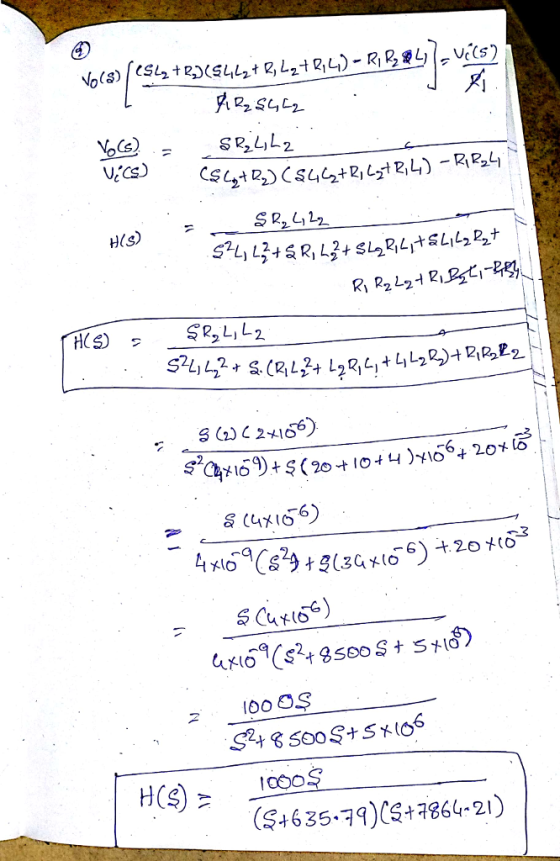

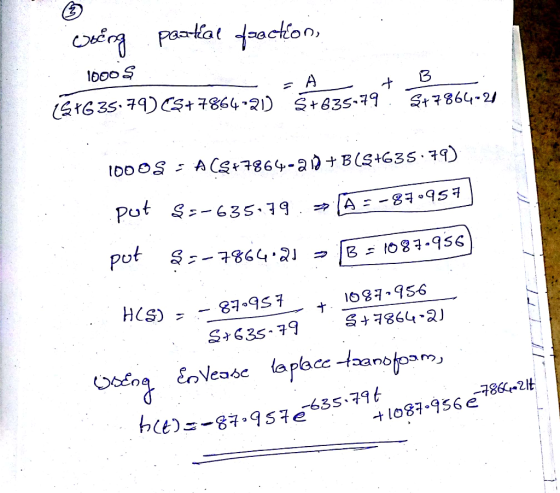

For the circuit shown in Figure 1, determine (a) The transfer function H(s) Vo(s)/V(s) 1 (b)....
Find the transfer function Vo(s)/V(s) for the circuit shown in the figure. 1. IH OO00 H...
Find the transfer function Vo(s)/V(s) for the circuit shown in the figure. 1. IH OO00 H w 0000 TH IF IF
PROBLEM #2: In the circuit shown, suppose that R and C are given. The transfer function...
PROBLEM #2: In the circuit shown, suppose that R and C are given. The transfer function of the circuit is G(s)== RCs +1 The impulse response of the circuit is g(t)== Let/RC ·u,(t). RC CV.CO Given that the input voltage is v;(t)=u,(t), determine the zero-state response v.(t) for t20 in two equivalent ways: (a) Use convolution. That is, compute the integral vo(t) = [ 8(t – T )v;()dt. (b) Use Laplace transforms. That is, compute vo(t) = ('{G(s)V;(s)}.
2. For the circuit shown in Figure 2: (a) (5 points) Calculate the transfer function H(s)-Volo)/V(o)....
2. For the circuit shown in Figure 2: (a) (5 points) Calculate the transfer function H(s)-Volo)/V(o). (b) (5 points) Find vo(t) due to a unit step input using the residue method. (e) (5 points) Find vo(t) due to a unit ramp input using the residue method. (d) (10 points) If v(t) 5/5 cos(2t-33.43499) V, find the steady-state expression for volt). R2 R1 2Ω 2Ω L 2H Volt) С 0.5F
Determine the complex transfer function T(s) = V/V; for the circuit shown below. Specify it as...
Determine the complex transfer function T(s) = V/V; for the circuit shown below. Specify it as a function of the complex frequency, s, and the symbols for the resistors and capacitor. On the attached graph, plot the magnitude of the complex transfer function T(jw) in decibels as a function of the frequency f of the source as f varies from 1 Hz to 1 MHz. Assume that the op amp is ideal. Use as the numerical values for the resistors...
the circuit shown, 1. Find the transfer function H(jw) 2. If R R2 12 and L1mH, plot the frequency response (both the ga...
the circuit shown, 1. Find the transfer function H(jw) 2. If R R2 12 and L1mH, plot the frequency response (both the gain and the phase shift) of the circuit; 3. Identify the type of filter the circuit is, and state the break (cut off) frequency. R1 v(t)Vcos(ut) L1 R2 Figure 1
the circuit shown, 1. Find the transfer function H(jw) 2. If R R2 12 and L1mH, plot the frequency response (both the gain and the phase shift) of...
Given the circuit in Figure 5 and 1(t) = Icos(ωt) A, find the transfer function H(ω)...
Given the circuit in Figure 5 and 1(t) = Icos(ωt) A, find the transfer function H(ω) = V/I 10 Ω + 1(t) 10 Ω Vo(t) 0000 20 mH Figure 5
The circuit shown in Figure 2 is called a lead-lag filter. a) Find the transfer function...
The circuit shown in Figure 2 is called a lead-lag filter. a) Find the transfer function Vols)/Vis). Assume an ideal operational amplifier. b) Determine the partial fraction expansion for Vols)/V(s) c) Determine Volt) and plot the results. Comment on the response of the filter 3. C1 R2 C2 iSin looot RI M(s) Figure 2: Lead-Lag Filter
2. H(s)Vo/v, for the circuit shown in Figure P9-12. 1 ΜΩ Figure P9-12 2. H(s)Vo/v, for the circuit shown in Figure P9-12. 1 ΜΩ Figure P9-12
2. H(s)Vo/v, for the circuit shown in Figure P9-12. 1 ΜΩ Figure P9-12
2. H(s)Vo/v, for the circuit shown in Figure P9-12. 1 ΜΩ Figure P9-12
Using () as the input and vo(t) as the output of the system, calculate the transfer...
Using () as the input and vo(t) as the output of the system, calculate the transfer function H(s), the impulse response h(t) vi Vo and the frequency response H(ia for the system shown in Figure 1 below. Plot (by hand or in Matlab) the asymptotic gain and phase of H(jw) Figure 1: Circuit for problem 1
၀ရ R - + vo(t) v(t) C Figure Q7 (a) 07 (a) A second order RLC...
၀ရ R - + vo(t) v(t) C Figure Q7 (a) 07 (a) A second order RLC circuit is given in Figure Q7 (a). Determine; (i) the time domain input-output relationship of the RLC circuit, (3 marks) (ii) the frequency response, H(W) of the circuit, (3 marks) (iii) the impulse response, h(t) given that R = 12, C = 1 F and L = 2 H. (4 marks) (b) An input vi(t) = e-ztu(t) is passed as the input to the...
Find the transfer function Vo(s)/V(s) for the circuit shown in the figure. 1. IH OO00 H w 0000 TH IF IF
PROBLEM #2: In the circuit shown, suppose that R and C are given. The transfer function of the circuit is G(s)== RCs +1 The impulse response of the circuit is g(t)== Let/RC ·u,(t). RC CV.CO Given that the input voltage is v;(t)=u,(t), determine the zero-state response v.(t) for t20 in two equivalent ways: (a) Use convolution. That is, compute the integral vo(t) = [ 8(t – T )v;()dt. (b) Use Laplace transforms. That is, compute vo(t) = ('{G(s)V;(s)}.
2. For the circuit shown in Figure 2: (a) (5 points) Calculate the transfer function H(s)-Volo)/V(o). (b) (5 points) Find vo(t) due to a unit step input using the residue method. (e) (5 points) Find vo(t) due to a unit ramp input using the residue method. (d) (10 points) If v(t) 5/5 cos(2t-33.43499) V, find the steady-state expression for volt). R2 R1 2Ω 2Ω L 2H Volt) С 0.5F
Determine the complex transfer function T(s) = V/V; for the circuit shown below. Specify it as a function of the complex frequency, s, and the symbols for the resistors and capacitor. On the attached graph, plot the magnitude of the complex transfer function T(jw) in decibels as a function of the frequency f of the source as f varies from 1 Hz to 1 MHz. Assume that the op amp is ideal. Use as the numerical values for the resistors...
the circuit shown, 1. Find the transfer function H(jw) 2. If R R2 12 and L1mH, plot the frequency response (both the gain and the phase shift) of the circuit; 3. Identify the type of filter the circuit is, and state the break (cut off) frequency. R1 v(t)Vcos(ut) L1 R2 Figure 1
the circuit shown, 1. Find the transfer function H(jw) 2. If R R2 12 and L1mH, plot the frequency response (both the gain and the phase shift) of...
Given the circuit in Figure 5 and 1(t) = Icos(ωt) A, find the transfer function H(ω) = V/I 10 Ω + 1(t) 10 Ω Vo(t) 0000 20 mH Figure 5
The circuit shown in Figure 2 is called a lead-lag filter. a) Find the transfer function Vols)/Vis). Assume an ideal operational amplifier. b) Determine the partial fraction expansion for Vols)/V(s) c) Determine Volt) and plot the results. Comment on the response of the filter 3. C1 R2 C2 iSin looot RI M(s) Figure 2: Lead-Lag Filter
2. H(s)Vo/v, for the circuit shown in Figure P9-12. 1 ΜΩ Figure P9-12
2. H(s)Vo/v, for the circuit shown in Figure P9-12. 1 ΜΩ Figure P9-12
Using () as the input and vo(t) as the output of the system, calculate the transfer function H(s), the impulse response h(t) vi Vo and the frequency response H(ia for the system shown in Figure 1 below. Plot (by hand or in Matlab) the asymptotic gain and phase of H(jw) Figure 1: Circuit for problem 1
၀ရ R - + vo(t) v(t) C Figure Q7 (a) 07 (a) A second order RLC circuit is given in Figure Q7 (a). Determine; (i) the time domain input-output relationship of the RLC circuit, (3 marks) (ii) the frequency response, H(W) of the circuit, (3 marks) (iii) the impulse response, h(t) given that R = 12, C = 1 F and L = 2 H. (4 marks) (b) An input vi(t) = e-ztu(t) is passed as the input to the...
