the cutting force in turning is given by g=ka where a is the cross sectional area...
the cutting force in turning is given by g=ka where a is the cross sectional area of cut and k is a work material constant. calculate the total power required to turn a mild steel rod of 50 mm diameter, with a tool fixed rate 0.05mm per work rotation, depth of cut 3mm per pass and spindle speed 140 rpm. K=1200N/mm square. Assume that the friction and wear losses amount to 40%of the total machining power. Draw a simple sketch of the setting.
Homework Answers
Add Answer to:

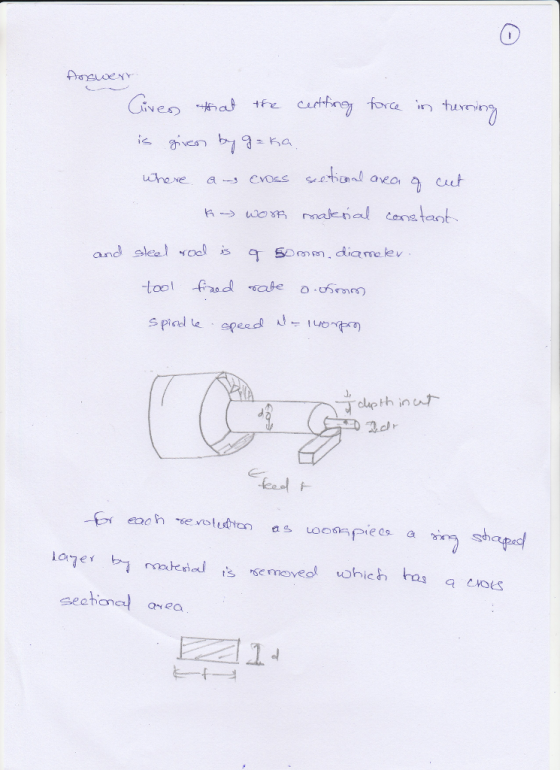

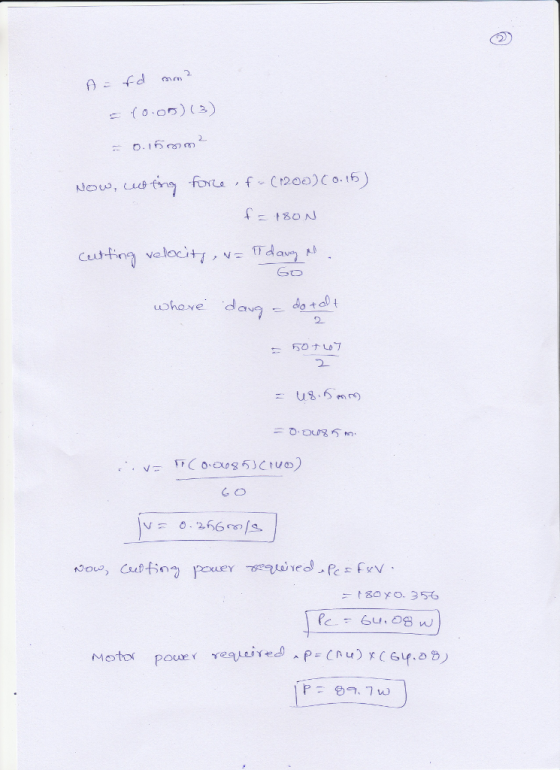

the cutting force in turning is given by g=ka where a is the
cross sectional area...
Rtant: Be precise; use sketches, formulae, and name all mathematical symbols you use. cutting for...
We were unable to transcribe this imagertant: Be precise; use sketches, formulae, and name all mathematical symbols you use. cutting force in turning is given by F-KA where A is the cross section of cut and K is the ultimate shear strength of the work material. Calculate: (a) material removal rate (MRR) and (b) the total power required by the machine for cylindrical surface turning of solid rods of 50 mm diameter with a tool feed rate of 0.05 mm/work...
in an accelerated tool life test an HSS cutting tool shows a Flank wear of 0.01...
in an accelerated tool life test an HSS cutting tool shows a Flank wear of 0.01 inch in 1 minute of cur while cylindrically turning on a lathe a copper cylinder of 2 inch diameter and sinch long with a workpiece rotational speed 200 rpm and a tool feed rate of 0.01 inch per each rotation of the workpiece and a depth of cut 0.1 inch per pass. When only the workpiece rotational speed is increased to 300 rpm (and...
Materials Forming: A solid cylinder of uniform circular cross-section is compressed axi-symmetrically to half its initial...
Materials Forming: A solid cylinder of uniform circular cross-section is compressed axi-symmetrically to half its initial height. Calculate the three true (log) strains (axial, radial, circumferential) and the total effective true strain (von Mises strain) (10 points) Machining: In a cylindrical turning operation on a horizontal engine lathe we have the following data: Work diameter: 1 inch, Work length: 3 inches, spindle speed: 200 rpm, tool feed rate: 0.01inch/rev., depth of cut per pass: 0.2 inch, ultimate shear strength (USS)...
a) A workpiece (φ-75 mm, 1 275 mm) is machined using turning at a feed rate of 0.25 mm/rev. At a cutting speed- 3.5 m/s, the turning tool is ineffective after machining 3 parts, and at a cutting s...
a) A workpiece (φ-75 mm, 1 275 mm) is machined using turning at a feed rate of 0.25 mm/rev. At a cutting speed- 3.5 m/s, the turning tool is ineffective after machining 3 parts, and at a cutting speed = 2.5 m/s, the turning tool is effective for producing 20 parts. Calculate the Cutting Speed that will allow 30 parts to be machined between tool changes [20 marks] b) An aluminium alloy workpiece (tensile strength - 325 N/mm2 and yield...
Fundamentals of Mechanical Manufacturing Technology: Exercise5 Material-removal Rate The rate (MRR) in turning is the volume...
Fundamentals of Mechanical Manufacturing Technology: Exercise5 Material-removal Rate The rate (MRR) in turning is the volume of material removed per unit time, with the units of m/min De + D t also can be written as MRR = drv Do: Orignal diameter of workpiece,mm Dr: Final diameter of workpiece, mm Davg: Average diameter of workpiece, mm d: Depth of cut, mm f: Feed, mm/rev 4feed rate ofdf-㈢ )-mm, the distance traveled is l mn, the cutting time is Eq. (2)...
QUESTION 5 During the orthogonal cutting of medium carbon steel rod with diameter of 75 mm...
QUESTION 5 During the orthogonal cutting of medium carbon steel rod with diameter of 75 mm and yield strength of 240 N/mm², the following machining data were used: Rake angle = 12°C Spindle speed = 950 rev/min Chip thickness ratio = 0.25 mm Depth of cut = 0.8 mm Width of cut = 5.0 mm Horizontal component of the cutting force = 1000 N The vertical component of the cutting force = 1400 N Calculate the following: (a) Shear plane...
Question 1 2) Manufacturing processes can be classified into 2 (Two) major groups. Briefly describe the...
Question 1 2) Manufacturing processes can be classified into 2 (Two) major groups. Briefly describe the characteristics of each group. Aid your answer with hierarchy. (10 marles) 1) Sand casting is a process for casting metal in sand molds. Explain FIVE (3) sand casting benefits to the industry (marks) Riser, also known as feeder, is an important part in a sand mold. Briefly describe the function of a riser in a sand casting mold Hence, illustrate the possible types and...
A 3.00 inch diameter workpiece that is 25 in long is to be turned down to...
A 3.00 inch diameter workpiece that is 25 in long is to be turned down to n2.384 inches. Process Specifications: a) Cutting Speed (V) = 300 ft/min, b) Feed (f) = 0.015 in/rev c) Depth of cut (d) = 0.044 in The bar will be held in a chuck and supported on the opposite end in a live center. With this work-holding setup, one end (15 inches) must be turned to diameter; then the bar must be reversed to turn...
Question 1 A turning operation is carried out on aluminum. Based on the specific energy values...
Question 1 A turning operation is carried out on aluminum. Based on the specific energy values in Table 20.2, determine material removal rate and cutting power in the operation under the following sets of cutting conditions: (a) Cutting speed 5.6 m/s, feed 0.25 mm/rev, and depth of cut 2.0 mm; and (b) cutting speed- 1.3 m/s, feed 0.75 mm/rev, and depth 4.0 mm. Question 2 Consider a turning operation performed on steel whose hardness 225 HB at a cutting speed...
• 23.44 Calculate the same quantities as in Example 23.1 for high-strength titanium alloy and at...
• 23.44 Calculate the same quantities as in Example 23.1 for high-strength titanium alloy and at N=700 rpm. Use units from Ex 23.1, specify units of each term. (20%) Format Tools Table Window Help 28th ed Chapter 23 - Saved to my Mac Mailings Review View Shape Format ut References ABC Astboeddte AaBb Abd A 2 Example 23.1 Material-removal Rate and Cutting Force in Turning Given: A 150-mm-long, 10-mm-diameter, 304 stainless-steel rod is being reduced in diameter to 8 mm...
We were unable to transcribe this imagertant: Be precise; use sketches, formulae, and name all mathematical symbols you use. cutting force in turning is given by F-KA where A is the cross section of cut and K is the ultimate shear strength of the work material. Calculate: (a) material removal rate (MRR) and (b) the total power required by the machine for cylindrical surface turning of solid rods of 50 mm diameter with a tool feed rate of 0.05 mm/work...
in an accelerated tool life test an HSS cutting tool shows a Flank wear of 0.01 inch in 1 minute of cur while cylindrically turning on a lathe a copper cylinder of 2 inch diameter and sinch long with a workpiece rotational speed 200 rpm and a tool feed rate of 0.01 inch per each rotation of the workpiece and a depth of cut 0.1 inch per pass. When only the workpiece rotational speed is increased to 300 rpm (and...
Materials Forming: A solid cylinder of uniform circular cross-section is compressed axi-symmetrically to half its initial height. Calculate the three true (log) strains (axial, radial, circumferential) and the total effective true strain (von Mises strain) (10 points) Machining: In a cylindrical turning operation on a horizontal engine lathe we have the following data: Work diameter: 1 inch, Work length: 3 inches, spindle speed: 200 rpm, tool feed rate: 0.01inch/rev., depth of cut per pass: 0.2 inch, ultimate shear strength (USS)...
a) A workpiece (φ-75 mm, 1 275 mm) is machined using turning at a feed rate of 0.25 mm/rev. At a cutting speed- 3.5 m/s, the turning tool is ineffective after machining 3 parts, and at a cutting speed = 2.5 m/s, the turning tool is effective for producing 20 parts. Calculate the Cutting Speed that will allow 30 parts to be machined between tool changes [20 marks] b) An aluminium alloy workpiece (tensile strength - 325 N/mm2 and yield...
Fundamentals of Mechanical Manufacturing Technology: Exercise5 Material-removal Rate The rate (MRR) in turning is the volume of material removed per unit time, with the units of m/min De + D t also can be written as MRR = drv Do: Orignal diameter of workpiece,mm Dr: Final diameter of workpiece, mm Davg: Average diameter of workpiece, mm d: Depth of cut, mm f: Feed, mm/rev 4feed rate ofdf-㈢ )-mm, the distance traveled is l mn, the cutting time is Eq. (2)...
QUESTION 5 During the orthogonal cutting of medium carbon steel rod with diameter of 75 mm and yield strength of 240 N/mm², the following machining data were used: Rake angle = 12°C Spindle speed = 950 rev/min Chip thickness ratio = 0.25 mm Depth of cut = 0.8 mm Width of cut = 5.0 mm Horizontal component of the cutting force = 1000 N The vertical component of the cutting force = 1400 N Calculate the following: (a) Shear plane...
Question 1 2) Manufacturing processes can be classified into 2 (Two) major groups. Briefly describe the characteristics of each group. Aid your answer with hierarchy. (10 marles) 1) Sand casting is a process for casting metal in sand molds. Explain FIVE (3) sand casting benefits to the industry (marks) Riser, also known as feeder, is an important part in a sand mold. Briefly describe the function of a riser in a sand casting mold Hence, illustrate the possible types and...
Question 1 A turning operation is carried out on aluminum. Based on the specific energy values in Table 20.2, determine material removal rate and cutting power in the operation under the following sets of cutting conditions: (a) Cutting speed 5.6 m/s, feed 0.25 mm/rev, and depth of cut 2.0 mm; and (b) cutting speed- 1.3 m/s, feed 0.75 mm/rev, and depth 4.0 mm. Question 2 Consider a turning operation performed on steel whose hardness 225 HB at a cutting speed...
• 23.44 Calculate the same quantities as in Example 23.1 for high-strength titanium alloy and at N=700 rpm. Use units from Ex 23.1, specify units of each term. (20%) Format Tools Table Window Help 28th ed Chapter 23 - Saved to my Mac Mailings Review View Shape Format ut References ABC Astboeddte AaBb Abd A 2 Example 23.1 Material-removal Rate and Cutting Force in Turning Given: A 150-mm-long, 10-mm-diameter, 304 stainless-steel rod is being reduced in diameter to 8 mm...
