Homework Answers

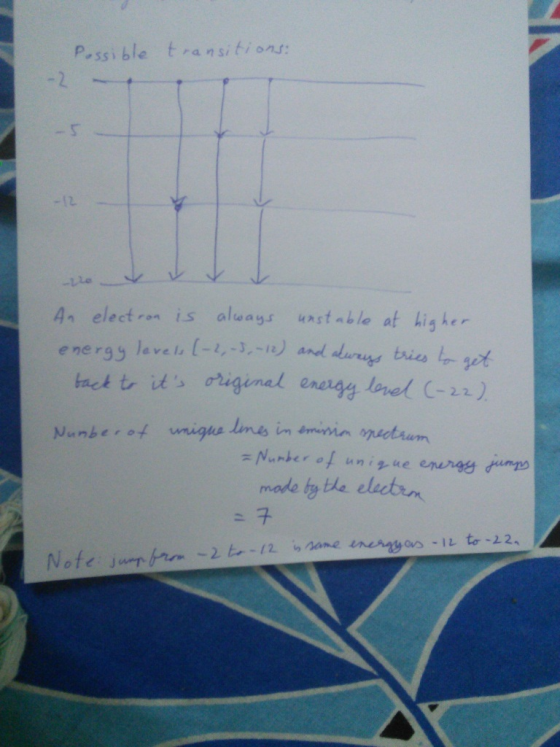

Correction in image answer: Unique lines = 5
When the electron jumps from level of energy E1 to level of energy E2, photon of energy E1-E2 is emitted.
All possible photon emissions with above energy levels: (-2 - -5),(-2 - -12),(-2 - -22),(-5 - -12),(-5 - -22), (-12 - -22) or 3,10,20,7,17 and 10 again.
Unique lines in emission spectrum = 3,7,10,17,20 ie 5
Add Answer to:
(PROBLEM BELOW):

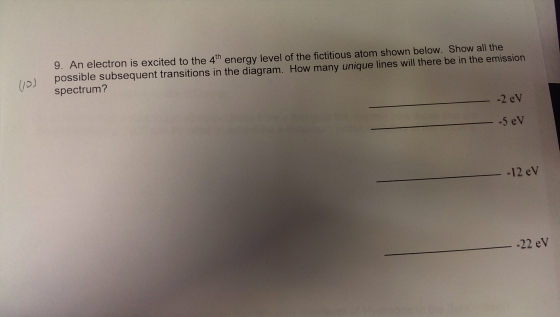

An electron is excited to the 4th energy level of the fictitious shown below....
An atom has the following energy levels for an electron: ground state, 0.0 eV; 1st excited...
An atom has the following energy levels for an electron: ground state, 0.0 eV; 1st excited state, 2.0 eV; 2nd excited state, 3.6 eV; 3rd excited state, 4.4 eV. How many possible emission lines are there in its spectrum? 1. Four 2. Five 3. Six 4. Three
6. A stream of laser photons with a frequency of 3.0x1015 Hz excited electrons in the...
6. A stream of laser photons with a frequency of 3.0x1015 Hz excited electrons in the lowest energy of the hydrogen atom shown in the energy level diagram below Energy a. Show to what level the photon excited the electron. -6.02x10-20 -8.72x10 b. Show all the possible emission transitions as the 1.36x10-19J state. tron returns from the n = 3 energy level to the ground 242x1-19 c. Calculate AE for each line produced in b. -5.45x1019 -2.18x101 d. What is...
a large number of hydrogen atoms have their electrons excited to the n=3 energy state. A....
a large number of hydrogen atoms have their electrons excited to the n=3 energy state. A. digram all possible electron transitions producing a spectral line in the emission spectrum. B. calculate the wavelength for each of the transitions
The electron in a hydrogen atom falls from an excited energy level to the ground state...
The electron in a hydrogen atom falls from an excited energy level to the ground state in two steps, causing the emission of photons with wavelengths of 1870 and 102.5 nm. What is the quantum number of the initial excited energy level from which the electron falls?
4. When a hydrogen atom is bombarded, the atom may be raised into a higher energy state. As the excited electron f...
4. When a hydrogen atom is bombarded, the atom may be raised into a higher energy state. As the excited electron falls back to the lower energy levels, light is emitted. What are the three longest-wavelength spectral lines emitted by the hydrogen atom as it returns to the n = 1 state from higher energy states? Give your answers to three significant figures. The lowest possible state, n = 1, corresponds to the electron in its smallest possible orbit; it...
When an electron of an excited hydrogen atom descends, from an initial energy level (ni) to...
When an electron of an excited hydrogen atom descends, from an initial energy level (ni) to a lower (nf), characteristic electromagnetic radiation is emitted. The Bohr model of the H-atom allows the calculation of ?E for any pair of energy levels. ?E is related to the wavelength (?) of the radiation according to Einstein's equation ( ?E = [(hc)/?]). Distinct series of spectral lines have been classified according to nf: Lyman series:nf=1 (91<?<123 nm; near-UV). Balmer series:nf=2 (365<?<658 nm; visible)....
energy Use this diagram to complete the table below. Which is the ground state? (pick one):...
energy Use this diagram to complete the table below. Which is the ground state? (pick one): How many excited states are there? How many lines are in the absorption line spectrum? Which transition causes the emission line at the shortest wavelength? 0-0 Which transition causes the emission line at the longest wavelength? Explanation Check
Energy (eV) 1. The figure to the right shows the first few energy levels for lithium. The ground state for the valence electron (the electron most likely to change 4 energy levels) is the 2s state wh...
Energy (eV) 1. The figure to the right shows the first few energy levels for lithium. The ground state for the valence electron (the electron most likely to change 4 energy levels) is the 2s state which is why that state is set to O eV. Make a table showing all possible transitions in the emission spectrum. For each possible transition indicate A. Energy change of possible transition. B. At for the transition. Is the transition allowed? C. Wavelength of...
This energy-level diagram depicts energy being absorbed or emitted by electrons undergoing electron transitions. 3rd attempt...
This energy-level diagram depicts energy being absorbed or emitted by electrons undergoing electron transitions. Part 1 Which of the arrows in the energy-level diagram represent absorption of energy and which represent emission of energy?
4R* En = - The energy level of a Helium Ion with one electron is given...
4R* En = - The energy level of a Helium Ion with one electron is given by the expression: nº, when R* = 13.6eV What is the required energy to ionize such Helium ion from the ground state? What is the maximum wavelength of such ionization energy? How many spectral lines are in the emission spectrum of the Helium ions ionized by that radiation from the ground state?
6. A stream of laser photons with a frequency of 3.0x1015 Hz excited electrons in the lowest energy of the hydrogen atom shown in the energy level diagram below Energy a. Show to what level the photon excited the electron. -6.02x10-20 -8.72x10 b. Show all the possible emission transitions as the 1.36x10-19J state. tron returns from the n = 3 energy level to the ground 242x1-19 c. Calculate AE for each line produced in b. -5.45x1019 -2.18x101 d. What is...
4. When a hydrogen atom is bombarded, the atom may be raised into a higher energy state. As the excited electron falls back to the lower energy levels, light is emitted. What are the three longest-wavelength spectral lines emitted by the hydrogen atom as it returns to the n = 1 state from higher energy states? Give your answers to three significant figures. The lowest possible state, n = 1, corresponds to the electron in its smallest possible orbit; it...
energy Use this diagram to complete the table below. Which is the ground state? (pick one): How many excited states are there? How many lines are in the absorption line spectrum? Which transition causes the emission line at the shortest wavelength? 0-0 Which transition causes the emission line at the longest wavelength? Explanation Check
Energy (eV) 1. The figure to the right shows the first few energy levels for lithium. The ground state for the valence electron (the electron most likely to change 4 energy levels) is the 2s state which is why that state is set to O eV. Make a table showing all possible transitions in the emission spectrum. For each possible transition indicate A. Energy change of possible transition. B. At for the transition. Is the transition allowed? C. Wavelength of...
4R* En = - The energy level of a Helium Ion with one electron is given by the expression: nº, when R* = 13.6eV What is the required energy to ionize such Helium ion from the ground state? What is the maximum wavelength of such ionization energy? How many spectral lines are in the emission spectrum of the Helium ions ionized by that radiation from the ground state?
