Add Answer to:
Q2

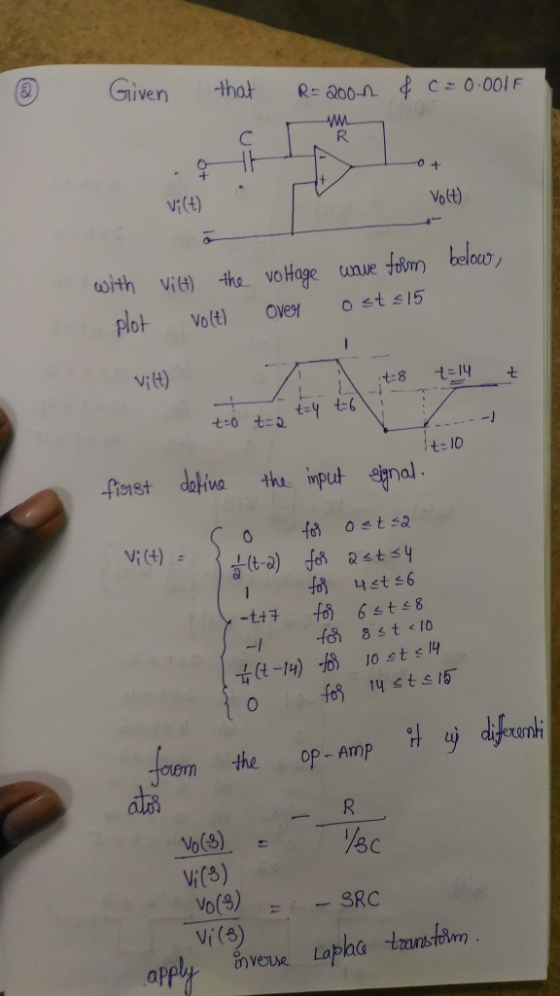

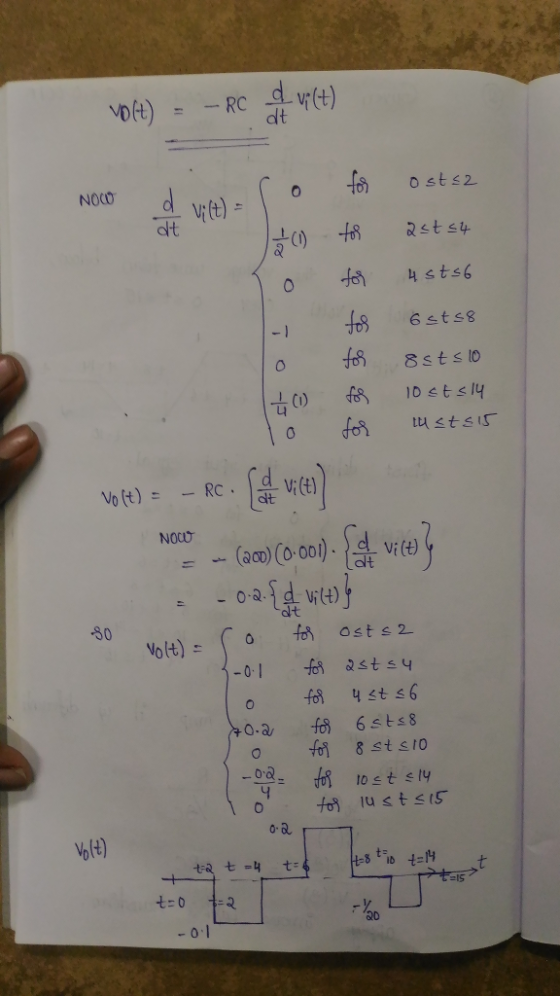

2. Assuming zero initial conditions, let R = 200 ?, and C = 0.001 F...
ECE 202- Experiment 3-PreLab Homework NTROD TION TOTHE INTEG IRO T OP AMP VOLTAGE COMPARATOR 1....
ECE 202- Experiment 3-PreLab Homework NTROD TION TOTHE INTEG IRO T OP AMP VOLTAGE COMPARATOR 1. Op Amp functions in two different modes, depending on the way it is connected in the circuit a) If there is no return loop, t is used to compare values of two input terminals (or as Explain how vo changes depending on the values of vi and v Vo . what are max and/or min values for v and vo? 2·The circuit shown below...
VO D IO 2. In the above circuit, the initial conditions are A. Determine the transfer...
VO D IO 2. In the above circuit, the initial conditions are A. Determine the transfer function, H(s) VI(S) k, b and c are constants. B. Determine the type of filter impleme C. Determine the values for R.C, R, and R. that Cons are all zero and the op-amp is ideal. (1.6 pts) in the form of H(s) = k zubte, where W, = 25000 rad/s, a bandwidth of R - 50000 requirement that ALL resistors must have a res...
1. Find the operating point of the circuit below assuming the op amp is ideal 2. Estimate the midband voltage gain Avs-...
1. Find the operating point of the circuit below assuming the op amp is ideal 2. Estimate the midband voltage gain Avs-vo v, 3. Choose values for C1 and C2 so that the pole frequency associated with Ci is 1 Hz and the pole frequency associated with C is 400 Hz. 4. At what frequency fz does a zero occur? 6. Why does the amplifier's gain drop at high frequencies? C2 R1 R2 99K C2] 2K param C2 0.1uF U1...
Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteri...
thanks
Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteristics of an operational amplifier 2. To study the bias circuit of an operational amplifier B. Apparatus: 1. DC Power supply 2. Experimental board and corresponding components 3. Electronic calculator (prepared by students) 4. Digital camera (prepared by students for photo taking of the experimental results) 5. Laptop computer with the software PicoScope 6 and Microsoft Word installed. 6. PicoScope PC Oscilloscope and its accessories. 7. Multimeter...
500 nF 1. (15 points) The energy stored in the capacitor is zero at the instant...
500 nF 1. (15 points) The energy stored in the capacitor is zero at the instant the switch is closed. This ideal op amp saturates in 15ms. What is the value of IN10V ON R? V -10V V.5.1 kn R v-4 car- ro 01 2. (30 points) The voltage pulse shown in (a) is applied to the ideal integrating amplifier shown in (b). Assume vo(0)=0. Derive a numerical expressions for vo(t) "(mV) 200 o 250 500 (ms) a) for 0<x<250...
Q #2 (Total 5 marks): Using an ideal op-amp model for the following circuit, a) Find...
Q #2 (Total 5 marks): Using an ideal op-amp model for the following circuit, a) Find the voltage gain at 300 MHz frequency. [3 mark] b) What is the value of Vo(t) if the input voltage is Vn(t) 5 sin(10t) V (assuume initial charge on the capacitors is zero). 2 mark] C1 20nF Cz 10nF in
A series RL circuit is excited by a unit ramp voltage source. Assuming zero initial conditions,...
A series RL circuit is excited by a unit ramp voltage source. Assuming zero initial conditions, [find and SKETCH the loop current i(t) for t ≥ 0]. Show all steps. *PLZ DO NOT FORGET DO GRAPH THE ANSWER
c) In estimating DC imperfections (input offset voltage, input offset current and the inverting amplifier with...
c) In estimating DC imperfections (input offset voltage, input offset current and the inverting amplifier with nominal gain of -100 using 1 current) of an op-map, an and 10MQ resistors is implemented using the op-amp as shown in Fig 2(a) below R2 10MQ R 100k Vi Vo Figure 2(a): Inverting amplifier Measurements are conducted on the output voltage of the inverting amplifier under the following conditions: (i) the input (V) is open circuited and the output voltage is found to...
For the driven-right-leg system below along with its equivalent circuit, assume 4. R,-5M0(non-ideal input impedance of op-amp) db Rx Auxiliary op amp RL db R1 Vcm_ Vi R5 2 RF R4 Rx o v RG 0 7 RA Aux...
For the driven-right-leg system below along with its equivalent circuit, assume 4. R,-5M0(non-ideal input impedance of op-amp) db Rx Auxiliary op amp RL db R1 Vcm_ Vi R5 2 RF R4 Rx o v RG 0 7 RA Auxiliary Amplifier O VREF 2 R2 What are the benefits of using the driven-right-leg circuit? What is the value of the common-mode voltage if resistor RRL is tied to ground instead of the auxiliary amplifier? e.
For the driven-right-leg system below along...
Consider the circuits below with ideal diodes, R = 2 ks, C = 1 uF, and...
Consider the circuits below with ideal diodes, R = 2 ks, C = 1 uF, and Vbi = VB2 = 3 V. (a) Calculate the current through D, and the output voltage for vin1 = 5 V (i.e. constant). (b) Calculate the current through D, and the output voltage for Vin2 = 5 V (i.e. constant). (c) Find the maximum and minimum values of the output voltage vouti(t) when the input voltage Vini(t) is a 10-V peak-to-peak sinusoids with zero...
ECE 202- Experiment 3-PreLab Homework NTROD TION TOTHE INTEG IRO T OP AMP VOLTAGE COMPARATOR 1. Op Amp functions in two different modes, depending on the way it is connected in the circuit a) If there is no return loop, t is used to compare values of two input terminals (or as Explain how vo changes depending on the values of vi and v Vo . what are max and/or min values for v and vo? 2·The circuit shown below...
VO D IO 2. In the above circuit, the initial conditions are A. Determine the transfer function, H(s) VI(S) k, b and c are constants. B. Determine the type of filter impleme C. Determine the values for R.C, R, and R. that Cons are all zero and the op-amp is ideal. (1.6 pts) in the form of H(s) = k zubte, where W, = 25000 rad/s, a bandwidth of R - 50000 requirement that ALL resistors must have a res...
1. Find the operating point of the circuit below assuming the op amp is ideal 2. Estimate the midband voltage gain Avs-vo v, 3. Choose values for C1 and C2 so that the pole frequency associated with Ci is 1 Hz and the pole frequency associated with C is 400 Hz. 4. At what frequency fz does a zero occur? 6. Why does the amplifier's gain drop at high frequencies? C2 R1 R2 99K C2] 2K param C2 0.1uF U1...
thanks
Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteristics of an operational amplifier 2. To study the bias circuit of an operational amplifier B. Apparatus: 1. DC Power supply 2. Experimental board and corresponding components 3. Electronic calculator (prepared by students) 4. Digital camera (prepared by students for photo taking of the experimental results) 5. Laptop computer with the software PicoScope 6 and Microsoft Word installed. 6. PicoScope PC Oscilloscope and its accessories. 7. Multimeter...
500 nF 1. (15 points) The energy stored in the capacitor is zero at the instant the switch is closed. This ideal op amp saturates in 15ms. What is the value of IN10V ON R? V -10V V.5.1 kn R v-4 car- ro 01 2. (30 points) The voltage pulse shown in (a) is applied to the ideal integrating amplifier shown in (b). Assume vo(0)=0. Derive a numerical expressions for vo(t) "(mV) 200 o 250 500 (ms) a) for 0<x<250...
Q #2 (Total 5 marks): Using an ideal op-amp model for the following circuit, a) Find the voltage gain at 300 MHz frequency. [3 mark] b) What is the value of Vo(t) if the input voltage is Vn(t) 5 sin(10t) V (assuume initial charge on the capacitors is zero). 2 mark] C1 20nF Cz 10nF in
c) In estimating DC imperfections (input offset voltage, input offset current and the inverting amplifier with nominal gain of -100 using 1 current) of an op-map, an and 10MQ resistors is implemented using the op-amp as shown in Fig 2(a) below R2 10MQ R 100k Vi Vo Figure 2(a): Inverting amplifier Measurements are conducted on the output voltage of the inverting amplifier under the following conditions: (i) the input (V) is open circuited and the output voltage is found to...
For the driven-right-leg system below along with its equivalent circuit, assume 4. R,-5M0(non-ideal input impedance of op-amp) db Rx Auxiliary op amp RL db R1 Vcm_ Vi R5 2 RF R4 Rx o v RG 0 7 RA Auxiliary Amplifier O VREF 2 R2 What are the benefits of using the driven-right-leg circuit? What is the value of the common-mode voltage if resistor RRL is tied to ground instead of the auxiliary amplifier? e.
For the driven-right-leg system below along...
Consider the circuits below with ideal diodes, R = 2 ks, C = 1 uF, and Vbi = VB2 = 3 V. (a) Calculate the current through D, and the output voltage for vin1 = 5 V (i.e. constant). (b) Calculate the current through D, and the output voltage for Vin2 = 5 V (i.e. constant). (c) Find the maximum and minimum values of the output voltage vouti(t) when the input voltage Vini(t) is a 10-V peak-to-peak sinusoids with zero...
