A generator is rated at 100MVA, 20kV, 60 Hz, 0.8 pf lagging and reactance of 10%....

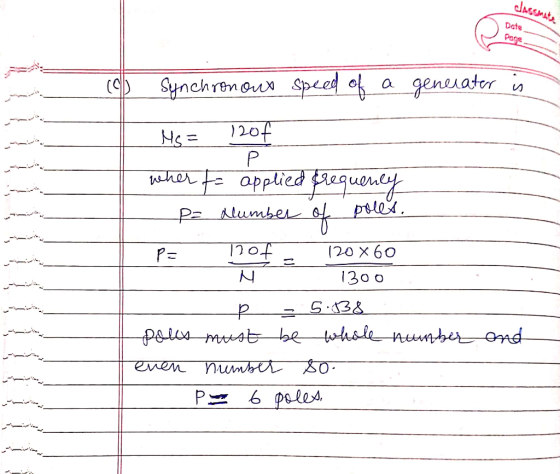

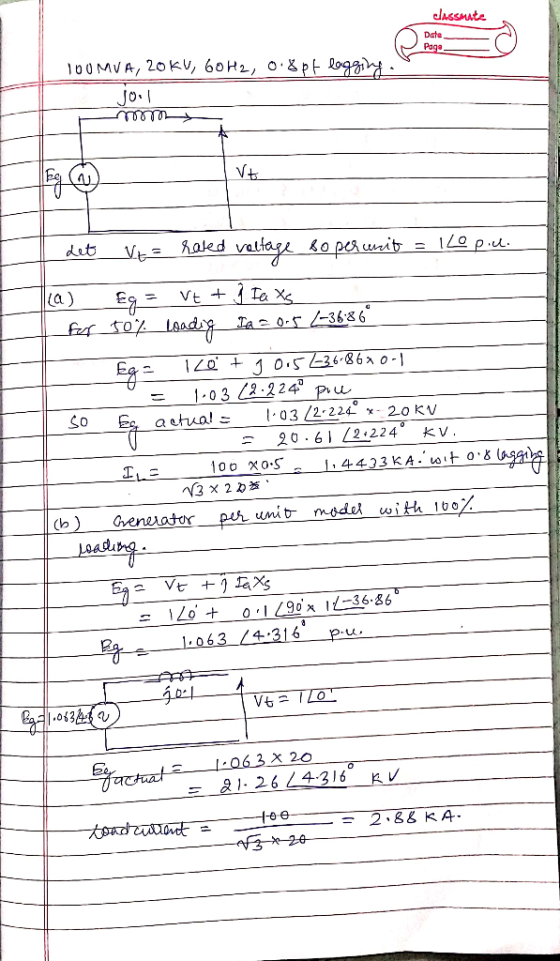

A generator is rated at 100MVA, 20kV, 60 Hz, 0.8 pf lagging and reactance of 10%. Compute the following: a) The generator per unit model if it is loaded at 50% b) The generator per unit model if it is loaded at 100% c) The number of poles in the generator if the shaft power is supplied at 1300 RPM
Homework Answers
Add Answer to:
A generator is rated at 100MVA, 20kV, 60 Hz, 0.8 pf lagging and
reactance of 10%....
A 480-V, 50-Hz, Y-connected, 6-pole synchronous generator has a synchronous reactance of 1 Ohm. Its full...
A 480-V, 50-Hz, Y-connected, 6-pole synchronous generator has a synchronous reactance of 1 Ohm. Its full load armature current is 60 A at 0.8 pf lagging. Under full load conditions, the friction and windage losses are 1.5 kW, and core losses are 1 kW at 50 Hz. Ignore armature copper losses. The field has been adjusted so that the terminal voltage is 480 V at no load. a.What is the speed of rotation of this gen? b.What is the generator...
A 13.8 kV, 10 MVA, 0.8 pf lagging, 60 Hz two-pole star-connected steam-turbine generator has a...
A 13.8 kV, 10 MVA, 0.8 pf lagging, 60 Hz two-pole star-connected steam-turbine generator has a synchronous reactance of 12 Ω per phase and an armature resistance of 1.5 Ω per phase. This generator is operating in parallel with a large power system (infinite bus). At the absolute maximum power possible, how much reactive power will this generator be supplying or consuming? Sketch the corresponding phasor diagram. (Assume IF is still unchanged.)
A 100-MVA 12.5-KV 0.85-PF lagging 50-Hz two-pole Y-connected synchronous generator has a synchronous reactance of 1.7...
A 100-MVA 12.5-KV 0.85-PF lagging 50-Hz two-pole Y-connected synchronous generator has a synchronous reactance of 1.7 Q and a negligible armature resistance. I) What is the magnitude of the internal generated voltage at rated conditions? 2) What is its torque angle at these conditions? 3) What is its voltage regulation? 4) Ignoring the losses in this generator, what torque must be applied to its shaft by the prime mover at full load? 5) What is the maximum power the generator...
(40%) Problem 2 of 3: An engine-generator set is paralleled with a 13.2 kv, 60 Hz infinite (utili...
please show steps. Thank you.
(40%) Problem 2 of 3: An engine-generator set is paralleled with a 13.2 kv, 60 Hz infinite (utility) bus to deliver power to a 2000 kw plant load at 0.866 lagging power factor. The synchronous generator is wye-connected and rated 3750 kva, 13.2 kv, and 0.8 power factor lagging with 1.0 per unit synchronous reactance and negligible armature resistance. 13.2 kVI 60 Hz I infinite bus utility) rated: 3750 kva 0.8 lag load: 2000 kW...
A six-pole, Y-connected synchronous generator rated at 1 MVA, 3.2 kV, 0.9 PF lagging, and 60...
A six-pole, Y-connected synchronous generator rated at 1 MVA, 3.2 kV, 0.9 PF lagging, and 60 Hz, assume that the generator is connected to a 3200-V infinite bus, and that its field current has been adjusted so that it is supplying rated power at 0.9 factor lag to the bus. Xs=1.5 Ohm, You may ignore the armature resistance RA when answering the following questions. What will happen to the real and reactive power supplied by this generator if the field...
2) A 480 V, 60 Hz, 400 hp 0.8 PF-lagging eight-pole A-connected synchronous motor has a...
2) A 480 V, 60 Hz, 400 hp 0.8 PF-lagging eight-pole A-connected synchronous motor has a synchronous reactance of 0.6 and negligible armature resistance. Ignore the mechanical and core losses. The magnitude of the internal machine voltage is 480 V when the field current is 4 A. Assume magnetic linearity. Initially, the motor operates at the rated conditions. a) Find the speed of this motor. b) Find the armature and field currents. c) What is the developed torque? What is...
A 2300-V 1000-kVA 0.8-PF-lagging 60-Hz two-pole Y-connected synchronous generator has X, = 1.1Q and RA 0.15Q....
A 2300-V 1000-kVA 0.8-PF-lagging 60-Hz two-pole Y-connected synchronous generator has X, = 1.1Q and RA 0.15Q. At 60 Hz, its friction and windage losses are 24 kW, and its core losses are 18 kW. The field circuit has an adjustable dc source. The OCC of this generator is shown in the following figure. (a) How much field current is required to make V, equal to 2300 V when the generator is running at no load? (b) What is the internal...
A 480-V, 60-Hz, A-connected, four-pole synchronous generator has a synchronous reactance of 0.1 ohm and an...
A 480-V, 60-Hz, A-connected, four-pole synchronous generator has a synchronous reactance of 0.1 ohm and an armature resistance of 0.0 15 ohm. At full load, the machine supplies 1200 A at 0.8 PF lagging. Under full-load conditions, the friction and windage losses are 40 kW, and the core losses are 30 kW. Ignore any field circuit losses c) How much power is the generator now supplying? How much power is supplied to the generator by the prime mover? What is...
A 75 MVA, 25 Kv, three-phase, 60 Hz synchronous generator has a synchronous reactance of X=...
A 75 MVA, 25
Kv, three-phase, 60 Hz synchronous generator
has a synchronous reactance of X= 9
Ω per phase and a negligible resistance.
The generator is delivrimg rated power at a
0.8 power factor lagging at the rated
terminal voltage to an infinitie bus, as shown in the following
figure 1.
Figure 1.The synchronous generator connected to infinite bus
in single phase.
1) The excitation voltage is E = 26.87 KV,
The generator delivring 60 MW. Compute the powe...
A 1500-kVA, 6.6 kV, 50 Hz, 6-pole, three-phase, star-connected synchronous generator has a resistance 0.5Q/phase and a...
A 1500-kVA, 6.6 kV, 50 Hz, 6-pole, three-phase, star-connected
synchronous generator has a resistance 0.5Q/phase and a synchronous
reactance of 5Q/phase. The generator is supplying its rated power
at its rated voltage and at a power factor lagging. The rotational
loss is 2 kW. Calculate:
(a) the power developed,
(b) the power angle,
(c) the voltage regulation, and
(d) the shaft torque.
A 1500-kVA, 6.6 kV, 50 Hz, 6-pole, three-phase, star-connected synchronous generator has a resistance 0.50/phase and a synchronous...
A 100-MVA 12.5-KV 0.85-PF lagging 50-Hz two-pole Y-connected synchronous generator has a synchronous reactance of 1.7 Q and a negligible armature resistance. I) What is the magnitude of the internal generated voltage at rated conditions? 2) What is its torque angle at these conditions? 3) What is its voltage regulation? 4) Ignoring the losses in this generator, what torque must be applied to its shaft by the prime mover at full load? 5) What is the maximum power the generator...
please show steps. Thank you.
(40%) Problem 2 of 3: An engine-generator set is paralleled with a 13.2 kv, 60 Hz infinite (utility) bus to deliver power to a 2000 kw plant load at 0.866 lagging power factor. The synchronous generator is wye-connected and rated 3750 kva, 13.2 kv, and 0.8 power factor lagging with 1.0 per unit synchronous reactance and negligible armature resistance. 13.2 kVI 60 Hz I infinite bus utility) rated: 3750 kva 0.8 lag load: 2000 kW...
2) A 480 V, 60 Hz, 400 hp 0.8 PF-lagging eight-pole A-connected synchronous motor has a synchronous reactance of 0.6 and negligible armature resistance. Ignore the mechanical and core losses. The magnitude of the internal machine voltage is 480 V when the field current is 4 A. Assume magnetic linearity. Initially, the motor operates at the rated conditions. a) Find the speed of this motor. b) Find the armature and field currents. c) What is the developed torque? What is...
A 2300-V 1000-kVA 0.8-PF-lagging 60-Hz two-pole Y-connected synchronous generator has X, = 1.1Q and RA 0.15Q. At 60 Hz, its friction and windage losses are 24 kW, and its core losses are 18 kW. The field circuit has an adjustable dc source. The OCC of this generator is shown in the following figure. (a) How much field current is required to make V, equal to 2300 V when the generator is running at no load? (b) What is the internal...
A 75 MVA, 25
Kv, three-phase, 60 Hz synchronous generator
has a synchronous reactance of X= 9
Ω per phase and a negligible resistance.
The generator is delivrimg rated power at a
0.8 power factor lagging at the rated
terminal voltage to an infinitie bus, as shown in the following
figure 1.
Figure 1.The synchronous generator connected to infinite bus
in single phase.
1) The excitation voltage is E = 26.87 KV,
The generator delivring 60 MW. Compute the powe...
A 1500-kVA, 6.6 kV, 50 Hz, 6-pole, three-phase, star-connected
synchronous generator has a resistance 0.5Q/phase and a synchronous
reactance of 5Q/phase. The generator is supplying its rated power
at its rated voltage and at a power factor lagging. The rotational
loss is 2 kW. Calculate:
(a) the power developed,
(b) the power angle,
(c) the voltage regulation, and
(d) the shaft torque.
A 1500-kVA, 6.6 kV, 50 Hz, 6-pole, three-phase, star-connected synchronous generator has a resistance 0.50/phase and a synchronous...
