Show all work. Rate will be given.
Homework Answers
Add Answer to:
Show all work. Rate will be given.

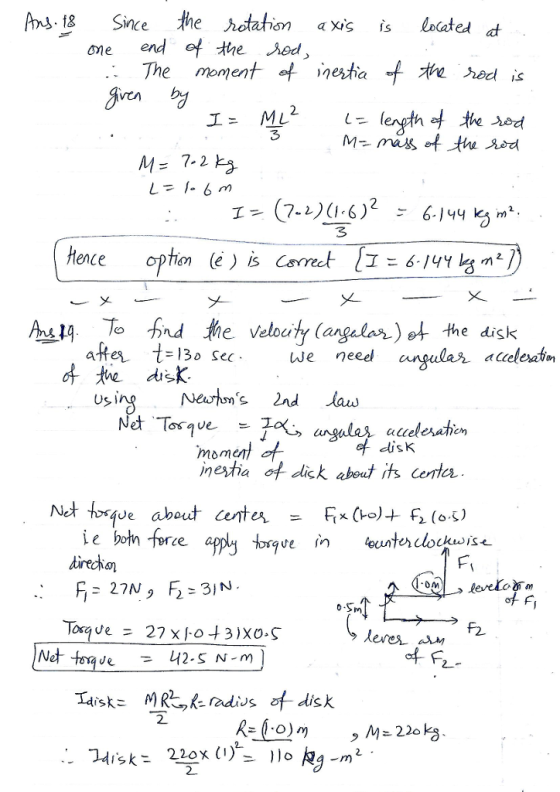

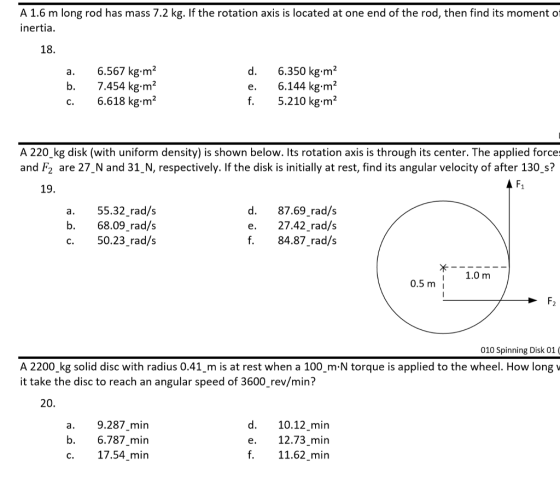

A 1.6 m long rod has mass 7.2 kg....
A solid disk of mass m = 9.2 kg and radius R = 0.2 m is...
A solid disk of mass m = 9.2 kg and radius R = 0.2 m is rotating with a constant angular velocity of w = 38 rad/s. A thin rectangular rod with mass m2 = 3.7 kg and length L = 2R = 0.4 m begins at rest above the disk and is dropped on the disk where it begins to spin with the disk. 1) What is the initial angular momentum of the rod and disk system? kg-m2/s Submit...
The long, slender rod (1 = 1/12ml^2) has a mass of 8 kg and a length...
The long, slender rod (1 = 1/12ml^2) has a mass of 8 kg and a length of 10 m. The disc attached (I=1/2mr^2) has a mass of 4 kg and a radius of 2m. A 200 N force is applied at the point of the red arrow (6 m from point of rotation -blue triangle. The force remains perpendicular during application. The blue triangle is located 2 m from the left edge of the rod. Angular impulse is described as...
1. The linkage shown is made of two 1.0-meter-long rods. Each rod has a mass of 5 kg. At the instant shown each rod has an angular velocity of -10 rad/s. Gravity acts toward the bottom of the...
1. The linkage shown is made of two 1.0-meter-long rods. Each rod has a mass of 5 kg. At the instant shown each rod has an angular velocity of -10 rad/s. Gravity acts toward the bottom of the page. What's the acceleration of the point where the 500 N force is applied? 500 N A disc of radius 0.3 m spins at a constant rate of 50 rad/s about its axis (directed toward the ottom of the page), while the...
Questions 10-12 A uniform rod of mass M-0.6 kg and length -1 m with a point...
Questions 10-12 A uniform rod of mass M-0.6 kg and length -1 m with a point mass m0.3 kg at its free end is rotating with angular speed s-10.0 rad/s about the s-axis, as shown in the M.L 2m moving in the plane of rotation collides perpendicularly in the direction of the rotation of the rod and sticds to the rod at a distance 2L/3 form point P with a linear speed Jup.. What is the angular monentum vector relative...
(a) A uniform disk of mass 14 kg, thickness 0.5 m, and radius 0.4 m is located at the origin, oriented with its axis al...
(a) A uniform disk of mass 14 kg, thickness 0.5 m, and radius 0.4 m is located at the origin, oriented with its axis along the y axis. It rotates clockwise around its axis when viewed from above (that is, you stand at a point on the +y axis and look toward the origin at the disk). The disk makes one complete rotation every 0.5 s. What is the rotational angular momentum of the disk? What is the rotational kinetic...
A uniform solid disk of mass m = 3.06 kg and radius r = 0.200 m...
A uniform solid disk of mass m = 3.06 kg and radius r = 0.200 m rotates about a fixed axis perpendicular to its face with angular frequency 6.09 rad/s. (a) Calculate the magnitude of the angular momentum of the disk when the axis of rotation passes through its center of mass. kg · m2/s (b) What is the magnitude of the angular momentum when the axis of rotation passes through a point midway between the center and the rim?...
A uniform solid disk of mass m = 3.08 kg and radius r = 0.200 m...
A uniform solid disk of mass m = 3.08 kg and radius r = 0.200 m rotates about a fixed axis perpendicular to its face with angular frequency 6.09 rad/s. (a) Calculate the magnitude of the angular momentum of the disk when the axis of rotation passes through its center of mass. kg · m2/s (b) What is the magnitude of the angular momentum when the axis of rotation passes through a point midway between the center and the rim?...
A uniform solid disk of mass m = 2.99 kg and radius r = 0.200 m...
A uniform solid disk of mass m = 2.99 kg and radius r = 0.200 m rotates about a fixed axis perpendicular to its face with angular frequency 5.96 rad/s. (a) Calculate the magnitude of the angular momentum of the disk when the axis of rotation passes through its center of mass. kg · m2/s (b) What is the magnitude of the angular momentum when the axis of rotation passes through a point midway between the center and the rim?...
A uniform thin rod of length 0.65 m and mass 3.4 kg can rotate in a horizontal plane about a vert...
A uniform thin rod of length 0.65 m and mass 3.4 kg can rotate
in a horizontal plane about a vertical axis through its center. The
rod is at rest when a 3.8 g bullet traveling in the rotation plane
is fired into one end of the rod. As viewed from above, the
bullet's path makes angle θ = 60° with the rod. If the
bullet lodges in the rod and the angular velocity of the rod is
11.0 rad/s...
Please solve this question, and show steps. Thank you so much. A uniform rod is...
Please solve this question, and show steps. Thank you so
much.
A uniform rod is set up so that it can rotate about an axis at perpendicular to one of its ends. The length and mass of the rod are 0.711 m and 1.13 kg, respectively. A force of constant magnitude Facts on the rod at the end opposite the rotation axis. The direction of the force is perpendicular to both the rod's length and the rotation axis. Calculate...
A solid disk of mass m = 9.2 kg and radius R = 0.2 m is rotating with a constant angular velocity of w = 38 rad/s. A thin rectangular rod with mass m2 = 3.7 kg and length L = 2R = 0.4 m begins at rest above the disk and is dropped on the disk where it begins to spin with the disk. 1) What is the initial angular momentum of the rod and disk system? kg-m2/s Submit...
The long, slender rod (1 = 1/12ml^2) has a mass of 8 kg and a length of 10 m. The disc attached (I=1/2mr^2) has a mass of 4 kg and a radius of 2m. A 200 N force is applied at the point of the red arrow (6 m from point of rotation -blue triangle. The force remains perpendicular during application. The blue triangle is located 2 m from the left edge of the rod. Angular impulse is described as...
1. The linkage shown is made of two 1.0-meter-long rods. Each rod has a mass of 5 kg. At the instant shown each rod has an angular velocity of -10 rad/s. Gravity acts toward the bottom of the page. What's the acceleration of the point where the 500 N force is applied? 500 N A disc of radius 0.3 m spins at a constant rate of 50 rad/s about its axis (directed toward the ottom of the page), while the...
Questions 10-12 A uniform rod of mass M-0.6 kg and length -1 m with a point mass m0.3 kg at its free end is rotating with angular speed s-10.0 rad/s about the s-axis, as shown in the M.L 2m moving in the plane of rotation collides perpendicularly in the direction of the rotation of the rod and sticds to the rod at a distance 2L/3 form point P with a linear speed Jup.. What is the angular monentum vector relative...
(a) A uniform disk of mass 14 kg, thickness 0.5 m, and radius 0.4 m is located at the origin, oriented with its axis along the y axis. It rotates clockwise around its axis when viewed from above (that is, you stand at a point on the +y axis and look toward the origin at the disk). The disk makes one complete rotation every 0.5 s. What is the rotational angular momentum of the disk? What is the rotational kinetic...
A uniform solid disk of mass m = 3.06 kg and radius r = 0.200 m rotates about a fixed axis perpendicular to its face with angular frequency 6.09 rad/s. (a) Calculate the magnitude of the angular momentum of the disk when the axis of rotation passes through its center of mass. kg · m2/s (b) What is the magnitude of the angular momentum when the axis of rotation passes through a point midway between the center and the rim?...
A uniform thin rod of length 0.65 m and mass 3.4 kg can rotate
in a horizontal plane about a vertical axis through its center. The
rod is at rest when a 3.8 g bullet traveling in the rotation plane
is fired into one end of the rod. As viewed from above, the
bullet's path makes angle θ = 60° with the rod. If the
bullet lodges in the rod and the angular velocity of the rod is
11.0 rad/s...
Please solve this question, and show steps. Thank you so
much.
A uniform rod is set up so that it can rotate about an axis at perpendicular to one of its ends. The length and mass of the rod are 0.711 m and 1.13 kg, respectively. A force of constant magnitude Facts on the rod at the end opposite the rotation axis. The direction of the force is perpendicular to both the rod's length and the rotation axis. Calculate...
