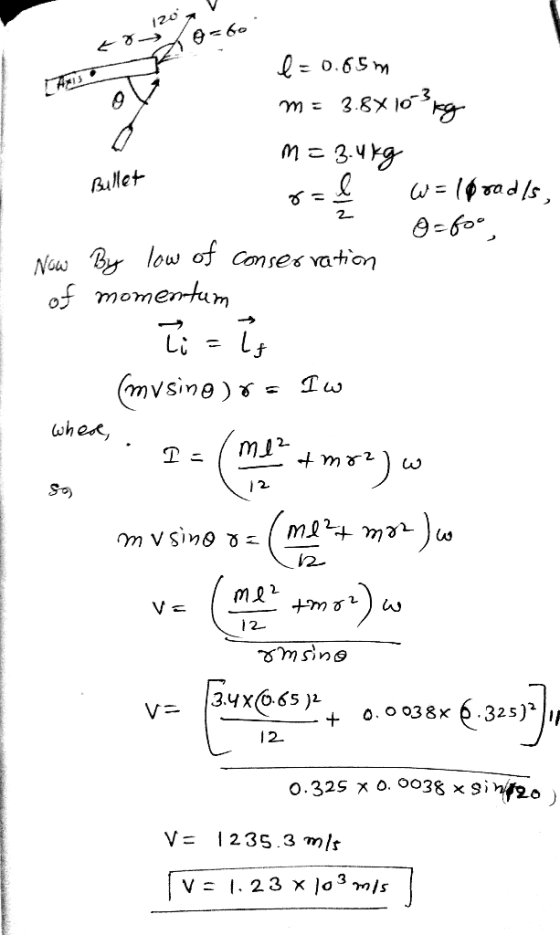

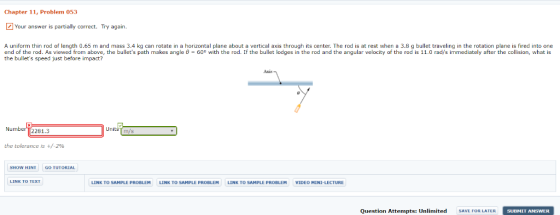

A uniform thin rod of length 0.65 m and mass 3.4 kg can rotate in a horizontal plane about a vertical axis through its center. The rod is at rest when a 3.8 g bullet traveling in the rotation plane is fired into one end of the rod. As viewed from above, the bullet's path makes angle θ = 60° with the rod. If the bullet lodges in the rod and the angular velocity of the rod is 11.0 rad/s immediately after the collision, what is the bullet's speed just before impact?
Homework Answers
Add Answer to:
A uniform thin rod of length 0.65 m and mass 3.4 kg can rotate in a horizontal plane about a vert...
Chapter 11, Problem 053 GO A uniform thin rod of length 0.61 m and mass 3.3...
Chapter 11, Problem 053 GO A uniform thin rod of length 0.61 m and mass 3.3 kg can rotate in a horizontal plane about a vertical axis through its center. The rod is at rest when a 4.4 g bullet traveling in the rotation plane is fired into one end of the rod. As viewed from above, the bullet's path makes angle 9 -60° with the rod. If the bullet lodges in the rod and the angular velocity of the...
A uniform thin rod of length 50 cm and mass 4.0 kg can rotate in a...
A uniform thin rod of length 50 cm and mass 4.0 kg can rotate in a horizontal plane about a vertical axis through from the right side. The rod into one end of the rod. As viewed from above, the bullet's path makes an angle of θ 60° with the rod (as shown in the figure below)If the bullet lodges in the rod and the angular velocity of the rod is 10 rad/s immediately after the collision, what is the...
A 10g bullet is fired horizontally at 1000m/s towards the vertical uniform thin rod (mass 1kg...
A 10g bullet is fired horizontally at 1000m/s towards the vertical uniform thin rod (mass 1kg and lengths 1m) free to rotate about an axis of rotation at its upper end. The bullet strikes the rod (and lodges in it) at distance d=20cm below the rod’s center of mass. What is the angular velocity of the rod-bullet system immediately after the collision? Will the rod make a complete revolution? If yes, what will be its angular velocity at the highest...
Q21 (15 points): A uniform rod of mass m 1.5 kg and length d- 2.0 m...
Q21 (15 points): A uniform rod of mass m 1.5 kg and length d- 2.0 m is supported by a pivot point P at its top and is free to rotate iın the vertical plane. A block of mass m2 0.8 kg is attached to the other end of the rod. The rod-block system is initially at rest, and a 1g bullet is fired horizontally into the rod through a point x 08 d below the pivot P Assume that...
A uniform thin rod of length 0.95 m and mass 1.2 kg lies in a horizontal...
A uniform thin rod of length 0.95 m and mass 1.2 kg lies in a horizontal plane and rotates in that plane about a pivot at one of its ends. The rod makes one rotation every 0.39 second and rotates clockwise as viewed from above its plane of rotation. A)Find the magnitude of the rod’s angular momentum about its rotation axis, in units of kgm^/s. b) find the rotational kinetic energy, in joules, of the rod described in part (a)....
A uniform thin rod of length 0.97 m and mass 2.2 kg lies in a horizontal...
A uniform thin rod of length 0.97 m and mass 2.2 kg lies in a horizontal plane and rotates in that plane about a pivot at one of its ends. The rod makes one rotation every 0.29 second and rotates clockwise as viewed from above its plane of rotation. the magnitude of the rod's angular momentum about its rotation axis, is 14.95 kg m2/s. 1. choose the correct direction of the angular momentum vector for the situation described above a....
A uniform thin rod of length 0.500 m and mass 4.00 kg is attached to a...
A uniform thin rod of length 0.500 m and mass 4.00 kg is attached to a pivot at one end. The other end of the rod is attached to a uniform sphere with a mass of 2.00 kg and a radius of 0.100 m. The rod and sphere initially hang vertically. A bullet with a mass of 5.00 g is fired horizontally at a speed of 200 m/s into the center of the sphere. The bullet embeds itself in the...
A rod rotates in a horizontal plane with angular speed on into the page) the instant...
A rod rotates in a horizontal plane with angular speed on into the page) the instant it is struck by a bullet travelling as shown. The bullet passes through the end of the rod, leaving a hole in the rod, and continues in the same direction. a) Give the equation needed to find the angular velocity of the rod just after the collision (leave it in terms of the symbols given below for part a). b) (You should be able...
A rod of mass M and length 2L is free to rotate in a vertical plane...
A rod of mass M and length 2L is free to rotate in a vertical plane about an axis through O, as shown in the figure. The axis is normal to the plane of the paper. Three mosses M, M, and 2M are attached to the rod as shown. With the rod in a horizontal position, the system is released from rest. (a) Find the net torque on the rod about the axis of rotation immediately after the system is...
4A uniform rod of length L-2.5 m and mass M- 5.8 kg is free to rotate...
4A uniform rod of length L-2.5 m and mass M- 5.8 kg is free to rotate about the y axis at one opposite end of the rod with initial speed 3.4 m/s in a direction that is perpendicular to the rod. The sphere rebounds off of the rod in the opposite direction with a speed of 1.8 m/s. end, as shown. A steel sphere of mass m = 1.7 kg is thrown at the 72 a. Calculate the moment of...
Chapter 11, Problem 053 GO A uniform thin rod of length 0.61 m and mass 3.3 kg can rotate in a horizontal plane about a vertical axis through its center. The rod is at rest when a 4.4 g bullet traveling in the rotation plane is fired into one end of the rod. As viewed from above, the bullet's path makes angle 9 -60° with the rod. If the bullet lodges in the rod and the angular velocity of the...
A uniform thin rod of length 50 cm and mass 4.0 kg can rotate in a horizontal plane about a vertical axis through from the right side. The rod into one end of the rod. As viewed from above, the bullet's path makes an angle of θ 60° with the rod (as shown in the figure below)If the bullet lodges in the rod and the angular velocity of the rod is 10 rad/s immediately after the collision, what is the...
Q21 (15 points): A uniform rod of mass m 1.5 kg and length d- 2.0 m is supported by a pivot point P at its top and is free to rotate iın the vertical plane. A block of mass m2 0.8 kg is attached to the other end of the rod. The rod-block system is initially at rest, and a 1g bullet is fired horizontally into the rod through a point x 08 d below the pivot P Assume that...
A rod rotates in a horizontal plane with angular speed on into the page) the instant it is struck by a bullet travelling as shown. The bullet passes through the end of the rod, leaving a hole in the rod, and continues in the same direction. a) Give the equation needed to find the angular velocity of the rod just after the collision (leave it in terms of the symbols given below for part a). b) (You should be able...
A rod of mass M and length 2L is free to rotate in a vertical plane about an axis through O, as shown in the figure. The axis is normal to the plane of the paper. Three mosses M, M, and 2M are attached to the rod as shown. With the rod in a horizontal position, the system is released from rest. (a) Find the net torque on the rod about the axis of rotation immediately after the system is...
4A uniform rod of length L-2.5 m and mass M- 5.8 kg is free to rotate about the y axis at one opposite end of the rod with initial speed 3.4 m/s in a direction that is perpendicular to the rod. The sphere rebounds off of the rod in the opposite direction with a speed of 1.8 m/s. end, as shown. A steel sphere of mass m = 1.7 kg is thrown at the 72 a. Calculate the moment of...
