Homework Answers

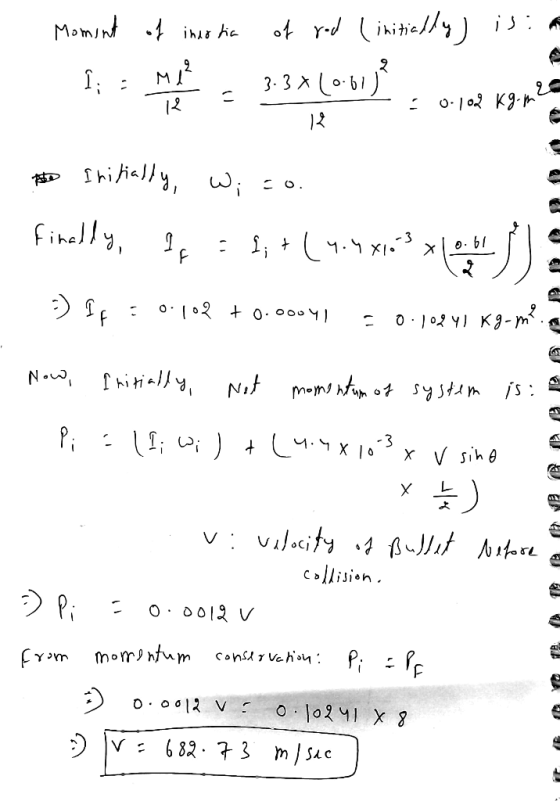

![ot rd iiy Mom/nt ik ke MIZ 3-3 0b ০-1०३ K१-- 12 Ihiillyw= 0. finelly -3 ০ [०२ + ০ ০০०५] 0102Y Kg - m N. hitly - 3 v vilacity](http://img.homeworklib.com/questions/fd061930-9dcd-11ea-806d-1dd4346e6ab0.png?x-oss-process=image/resize,w_560)
Add Answer to:

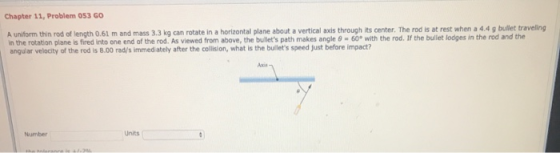

Chapter 11, Problem 053 GO A uniform thin rod of length 0.61 m and mass 3.3...
A uniform thin rod of length 0.65 m and mass 3.4 kg can rotate in a horizontal plane about a vert...
A uniform thin rod of length 0.65 m and mass 3.4 kg can rotate
in a horizontal plane about a vertical axis through its center. The
rod is at rest when a 3.8 g bullet traveling in the rotation plane
is fired into one end of the rod. As viewed from above, the
bullet's path makes angle θ = 60° with the rod. If the
bullet lodges in the rod and the angular velocity of the rod is
11.0 rad/s...
A uniform thin rod of length 50 cm and mass 4.0 kg can rotate in a...
A uniform thin rod of length 50 cm and mass 4.0 kg can rotate in a horizontal plane about a vertical axis through from the right side. The rod into one end of the rod. As viewed from above, the bullet's path makes an angle of θ 60° with the rod (as shown in the figure below)If the bullet lodges in the rod and the angular velocity of the rod is 10 rad/s immediately after the collision, what is the...
A 10g bullet is fired horizontally at 1000m/s towards the vertical uniform thin rod (mass 1kg...
A 10g bullet is fired horizontally at 1000m/s towards the vertical uniform thin rod (mass 1kg and lengths 1m) free to rotate about an axis of rotation at its upper end. The bullet strikes the rod (and lodges in it) at distance d=20cm below the rod’s center of mass. What is the angular velocity of the rod-bullet system immediately after the collision? Will the rod make a complete revolution? If yes, what will be its angular velocity at the highest...
Q21 (15 points): A uniform rod of mass m 1.5 kg and length d- 2.0 m...
Q21 (15 points): A uniform rod of mass m 1.5 kg and length d- 2.0 m is supported by a pivot point P at its top and is free to rotate iın the vertical plane. A block of mass m2 0.8 kg is attached to the other end of the rod. The rod-block system is initially at rest, and a 1g bullet is fired horizontally into the rod through a point x 08 d below the pivot P Assume that...
A uniform thin rod of length 0.500 m and mass 4.00 kg is attached to a...
A uniform thin rod of length 0.500 m and mass 4.00 kg is attached to a pivot at one end. The other end of the rod is attached to a uniform sphere with a mass of 2.00 kg and a radius of 0.100 m. The rod and sphere initially hang vertically. A bullet with a mass of 5.00 g is fired horizontally at a speed of 200 m/s into the center of the sphere. The bullet embeds itself in the...
A uniform thin rod of length 0.95 m and mass 1.2 kg lies in a horizontal...
A uniform thin rod of length 0.95 m and mass 1.2 kg lies in a horizontal plane and rotates in that plane about a pivot at one of its ends. The rod makes one rotation every 0.39 second and rotates clockwise as viewed from above its plane of rotation. A)Find the magnitude of the rod’s angular momentum about its rotation axis, in units of kgm^/s. b) find the rotational kinetic energy, in joules, of the rod described in part (a)....
A uniform thin rod of length 0.97 m and mass 2.2 kg lies in a horizontal...
A uniform thin rod of length 0.97 m and mass 2.2 kg lies in a horizontal plane and rotates in that plane about a pivot at one of its ends. The rod makes one rotation every 0.29 second and rotates clockwise as viewed from above its plane of rotation. the magnitude of the rod's angular momentum about its rotation axis, is 14.95 kg m2/s. 1. choose the correct direction of the angular momentum vector for the situation described above a....
Problem 1 A mass-less ladder stands against a vertical frictionless wall as shown in Fig. 5....
Problem 1 A mass-less ladder stands against a vertical frictionless wall as shown in Fig. 5. The static coefficient of friction between the ladder and the horizontal plane is Mu =0.55. Denote the angle between the horizontal plane and the ladder by fi. a) Calculate the smallest value of Beta that allows a person to climb to the top of the ladder without it beginning to slip. Problem 2 A thin uniform rod of length L= 0.7 m and mass...
The uniform thin rod in the figure below has mass M = 4.00 kg and length...
The uniform thin rod in the figure below has mass M =
4.00 kg and length L = 2.21 m and is free to rotate on a
frictionless pin. At the instant the rod is released from rest in
the horizontal position, find the magnitude of the rod's angular
acceleration, the tangential acceleration of the rod's center of
mass, and the tangential acceleration of the rod's free end.
(a)
the rod's angular acceleration (in rad/s2)
rad/s2
(b)
the tangential acceleration...
5. A half section of a uniform thin pipe of mass m 2 kg is at...
5. A half section of a uniform thin pipe of mass m 2 kg is at rest when a force P 40 N is applied at point A as shown. The static and kinetic friction coefficients are μ': 0.15 and μ"01, respectively. Determine (a) the angular acceleration, and (b) the magnitude and direction of the friction force between the thin pipe and the horizontal plane. The distance between the geometric center O and mass center G of the thin pipe...
A uniform thin rod of length 0.65 m and mass 3.4 kg can rotate
in a horizontal plane about a vertical axis through its center. The
rod is at rest when a 3.8 g bullet traveling in the rotation plane
is fired into one end of the rod. As viewed from above, the
bullet's path makes angle θ = 60° with the rod. If the
bullet lodges in the rod and the angular velocity of the rod is
11.0 rad/s...
A uniform thin rod of length 50 cm and mass 4.0 kg can rotate in a horizontal plane about a vertical axis through from the right side. The rod into one end of the rod. As viewed from above, the bullet's path makes an angle of θ 60° with the rod (as shown in the figure below)If the bullet lodges in the rod and the angular velocity of the rod is 10 rad/s immediately after the collision, what is the...
Q21 (15 points): A uniform rod of mass m 1.5 kg and length d- 2.0 m is supported by a pivot point P at its top and is free to rotate iın the vertical plane. A block of mass m2 0.8 kg is attached to the other end of the rod. The rod-block system is initially at rest, and a 1g bullet is fired horizontally into the rod through a point x 08 d below the pivot P Assume that...
Problem 1 A mass-less ladder stands against a vertical frictionless wall as shown in Fig. 5. The static coefficient of friction between the ladder and the horizontal plane is Mu =0.55. Denote the angle between the horizontal plane and the ladder by fi. a) Calculate the smallest value of Beta that allows a person to climb to the top of the ladder without it beginning to slip. Problem 2 A thin uniform rod of length L= 0.7 m and mass...
The uniform thin rod in the figure below has mass M =
4.00 kg and length L = 2.21 m and is free to rotate on a
frictionless pin. At the instant the rod is released from rest in
the horizontal position, find the magnitude of the rod's angular
acceleration, the tangential acceleration of the rod's center of
mass, and the tangential acceleration of the rod's free end.
(a)
the rod's angular acceleration (in rad/s2)
rad/s2
(b)
the tangential acceleration...
5. A half section of a uniform thin pipe of mass m 2 kg is at rest when a force P 40 N is applied at point A as shown. The static and kinetic friction coefficients are μ': 0.15 and μ"01, respectively. Determine (a) the angular acceleration, and (b) the magnitude and direction of the friction force between the thin pipe and the horizontal plane. The distance between the geometric center O and mass center G of the thin pipe...
