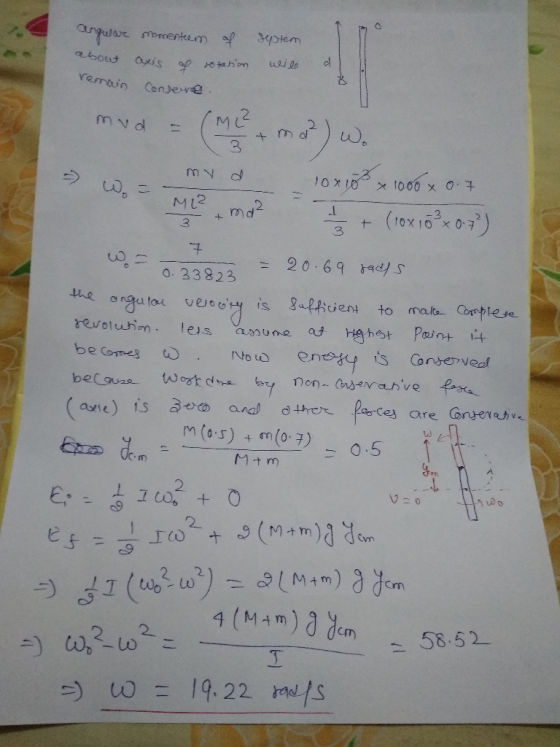

A 10g bullet is fired horizontally at 1000m/s towards the vertical uniform thin rod (mass 1kg...
A 10g bullet is fired horizontally at 1000m/s towards the
vertical uniform thin rod (mass 1kg and
lengths 1m) free to rotate about an axis of rotation at its upper
end. The bullet strikes the rod
(and lodges in it) at distance d=20cm below the rod’s center of
mass. What is the angular
velocity of the rod-bullet system immediately after the collision?
Will the rod make a complete
revolution? If yes, what will be its angular velocity at the
highest point? If not, what would be its
maximum angular position (take a vertical position as zero)?
Homework Answers
