2.24 A pipe of 0.3 m outer diameter at a temperature of 160°C is insulated with...
2.24
A pipe of 0.3 m outer diameter at a temperature of 160°C is insulated with a material having a thermal conductivity of k = 0.055 (1 + 2.8 × 10–3T) W/mK where T is in °C. The outside surface temperature is 40°C. Determine the heat flow/m length and the temperature at the mid radius
Homework Answers

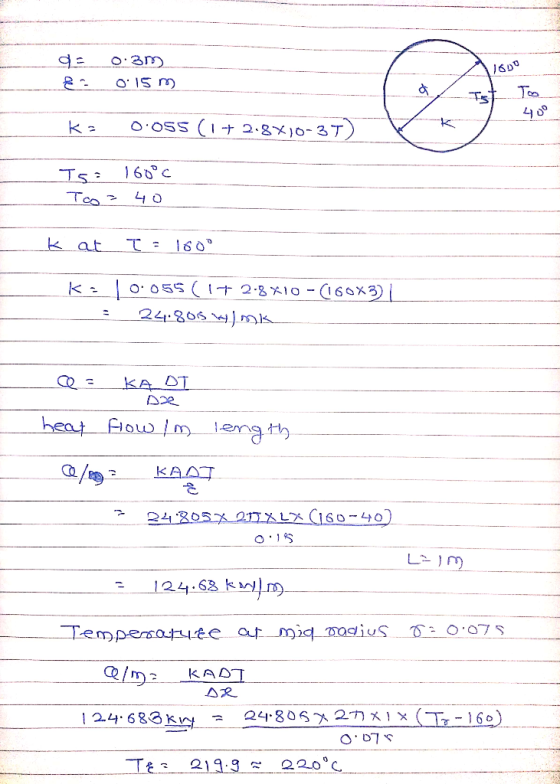

![de 0.31 015 m) 1600 K: 0.05s (1+ 2.8X10-3T) Ts= 160°C Too = 40 K at T = 180° ka | 0.055 (1 + 2.8*10 -(160x3) ___ : 24.80514].](http://img.homeworklib.com/questions/a67b5d20-ca29-11ea-bf44-f9acc4b51fd2.png?x-oss-process=image/resize,w_560)
Add Answer to:
2.24
A pipe of 0.3 m outer diameter at a temperature of 160°C is
insulated with...
Exercise 1.16 An insulated district heating pipe with a total diameter d = 0.4 m is laid in the ground at a depth of h = 1.2 m. For a long cold period with an average ground surface temperature o...
Exercise 1.16 An insulated district heating pipe with a total diameter d = 0.4 m is laid in the ground at a depth of h = 1.2 m. For a long cold period with an average ground surface temperature of 0°C and a temperature at the outer edge of the pipe insulation of 20°C, the heat loss per 1km of steam pipe must be calculated. The thermal conductivity of the soil should be assumed to be 0.6 W/mk
Exercise 1.16...
A cylinder of diameter 0.6 m and length of 15 m with surface temperature of 200...
A cylinder of diameter 0.6 m and length of 15 m with surface
temperature of 200 Celsius is enclosed in a square of 1.2 m side,
the material having a thermal conductivity of 2.5 W/mk. the outside
surface at 5 Celsius . Determine the heat loss in W
5.10. A pipe carrying steam at 250°C with and OD of 0.2 m is insulated using...
5.10. A pipe carrying steam at 250°C with and OD of 0.2 m is insulated using a material with conductivity of 0.085 W/mK. The insulation is off-set from the axis by 0.05 m and the OD of the insulation is 0.4 m. Determine the heat loss from the pipe if the outside surface temperature of the insulation is 60°C.
B Steam flows in a steel pipe, which is insulated by gypsum plaster. The inner and...
B Steam flows in a steel pipe, which is insulated by gypsum plaster. The inner and outer diameter of the pipe are 8 cm and 6 cm respectively with pipe length of 20-m. The thickness of gypsum plaster which wraps the pipe is 4 cm. The heat transfer coefficient of the inner pipe and outer insulation are 800 W/m2.°C and 200 W/m2.°C with inner pipe temperature of 200°C and outer insulator temperature of 10°C. The thermal conductivity of the pipe...
Consider a pipe of length L with an inner radius r1 and outer radius r2. The...
Consider a pipe of length L with an inner radius r1 and outer radius r2. The outer surface is thermally insulated while the inner surface is at temperature T1. The thermal conductivity of the wall is k constant. Heat is generated in the wall of the pipe with a volumetric uniform heat generation g (W/m3 ). Assume steady and one dimensional heat transfer (b) Determine the temperature variation in the wall of the pipe and the heat flux on...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water i...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water in the pipe is um-0.31 m/s and the bulk temperature is 323 K (density 988 kg m-3; viscosity 0.00055 kg m' sı. Pr 3.56, thermal conductivity k 0.64 W m1 Kt). The material of the pipe has thermal conductivity k 0.61 W...
Problem : A cryogenic flui d is flowing in a 304 SS pipe. The pipe is...
Problem
:
A cryogenic flui
d is flowing in a
304 SS
pipe.
The pipe is insulated
on its outside surface
with
6
-
mm thick,
evacuated,
aluminum foil/glass mat insulation.
(“Evacuated” means a partial vacuum is drawn on the
insulation to
remove air that would otherwise fill
pores inside the insulation.)
The pipe
inside diameter
is 127 mm; it’s outside diameter is 138 mm.
The
fluid temperature is
-
173
o
C
.
T
he
air temperature
outside the...
Liquid flows in a metal pipe with an inner diameter of D1 = 22 mm and...
Liquid flows in a metal pipe with an inner diameter of D1 = 22 mm and an outer diameter of D2 = 32 mm. The thermal conductivity of the pipe wall is 12 W/m·K. The inner surface of the pipe is coated with thin polyvinylidene chloride (PVDC) lining. Along a length of 1 m, the pipe outer surface is exposed to convection heat transfer with hot gas, at T∞ = 100°C and h = 5 W/m2·K, and thermal radiation with...
4. (25 pts) Water is flowing inside a thin wall, smooth pipe of diameter 0.05 m...
4. (25 pts) Water is flowing inside a thin wall, smooth pipe of diameter 0.05 m at a mass flowrate of 0.3 kg/s. The water enters the pipe at a mean temperature Tm,i= 80 °C and exits at Tm,o= 80 °C while the pipe surface temperature is maintained at Ts= 20 °C along its entire length. a. Is the flow turbulent or laminar? b. Calculate the average convection heat transfer coefficient inside the tube. c. Calculate the length of the...
Problem 1. Steam at 120°C is transported in a long 8" outer diameter pipe. Its outer surface is c...
Problem 1. Steam at 120°C is transported in a long 8" outer diameter pipe. Its outer surface is covered with a 1" thick fiberglass (thermal conductivity, 0.05 W/(mK)) insulation. When the outer temperature is 0°C, the rate of condensation of steam is measured to equal 0.06 g per meter of the pipe length. Estimate the heat transfer coefficient. The heat of vaporization of the steam is 2600 J/g. The resistance to the heat transfer through the pipe wall may be...
Exercise 1.16 An insulated district heating pipe with a total diameter d = 0.4 m is laid in the ground at a depth of h = 1.2 m. For a long cold period with an average ground surface temperature of 0°C and a temperature at the outer edge of the pipe insulation of 20°C, the heat loss per 1km of steam pipe must be calculated. The thermal conductivity of the soil should be assumed to be 0.6 W/mk
Exercise 1.16...
A cylinder of diameter 0.6 m and length of 15 m with surface
temperature of 200 Celsius is enclosed in a square of 1.2 m side,
the material having a thermal conductivity of 2.5 W/mk. the outside
surface at 5 Celsius . Determine the heat loss in W
B Steam flows in a steel pipe, which is insulated by gypsum plaster. The inner and outer diameter of the pipe are 8 cm and 6 cm respectively with pipe length of 20-m. The thickness of gypsum plaster which wraps the pipe is 4 cm. The heat transfer coefficient of the inner pipe and outer insulation are 800 W/m2.°C and 200 W/m2.°C with inner pipe temperature of 200°C and outer insulator temperature of 10°C. The thermal conductivity of the pipe...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water in the pipe is um-0.31 m/s and the bulk temperature is 323 K (density 988 kg m-3; viscosity 0.00055 kg m' sı. Pr 3.56, thermal conductivity k 0.64 W m1 Kt). The material of the pipe has thermal conductivity k 0.61 W...
Problem
:
A cryogenic flui
d is flowing in a
304 SS
pipe.
The pipe is insulated
on its outside surface
with
6
-
mm thick,
evacuated,
aluminum foil/glass mat insulation.
(“Evacuated” means a partial vacuum is drawn on the
insulation to
remove air that would otherwise fill
pores inside the insulation.)
The pipe
inside diameter
is 127 mm; it’s outside diameter is 138 mm.
The
fluid temperature is
-
173
o
C
.
T
he
air temperature
outside the...
4. (25 pts) Water is flowing inside a thin wall, smooth pipe of diameter 0.05 m at a mass flowrate of 0.3 kg/s. The water enters the pipe at a mean temperature Tm,i= 80 °C and exits at Tm,o= 80 °C while the pipe surface temperature is maintained at Ts= 20 °C along its entire length. a. Is the flow turbulent or laminar? b. Calculate the average convection heat transfer coefficient inside the tube. c. Calculate the length of the...
Problem 1. Steam at 120°C is transported in a long 8" outer diameter pipe. Its outer surface is covered with a 1" thick fiberglass (thermal conductivity, 0.05 W/(mK)) insulation. When the outer temperature is 0°C, the rate of condensation of steam is measured to equal 0.06 g per meter of the pipe length. Estimate the heat transfer coefficient. The heat of vaporization of the steam is 2600 J/g. The resistance to the heat transfer through the pipe wall may be...
